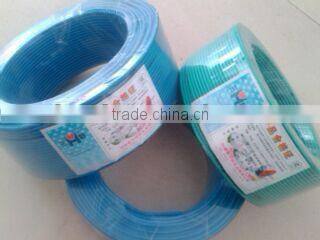

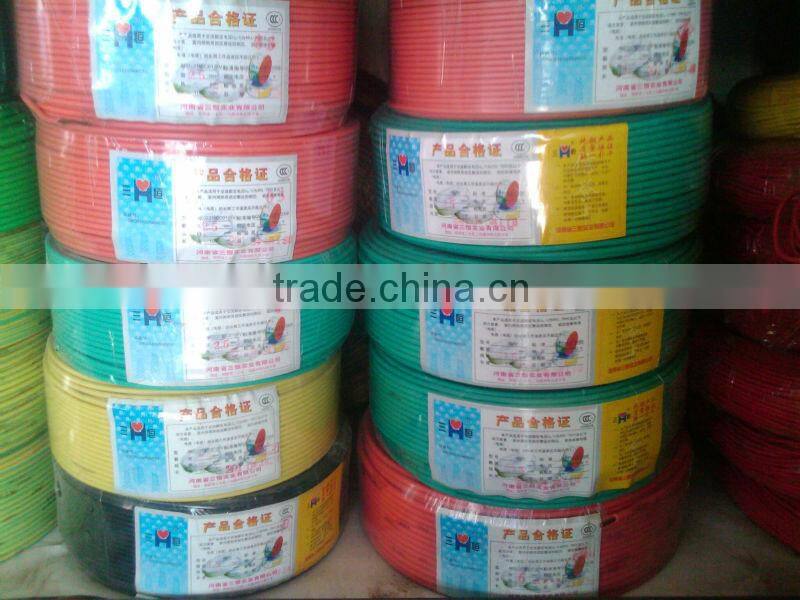

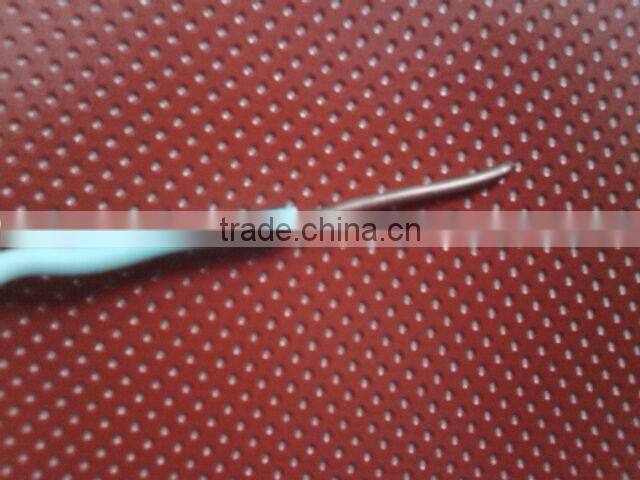

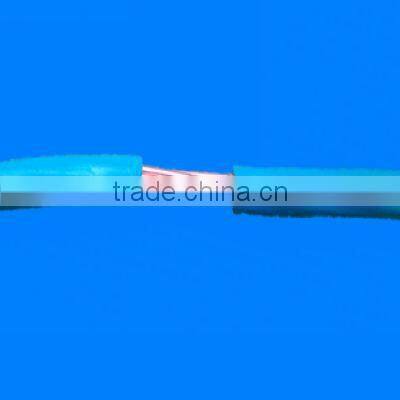

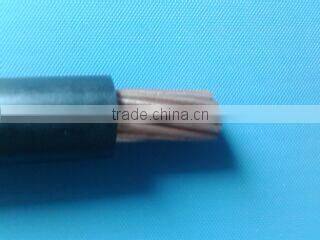

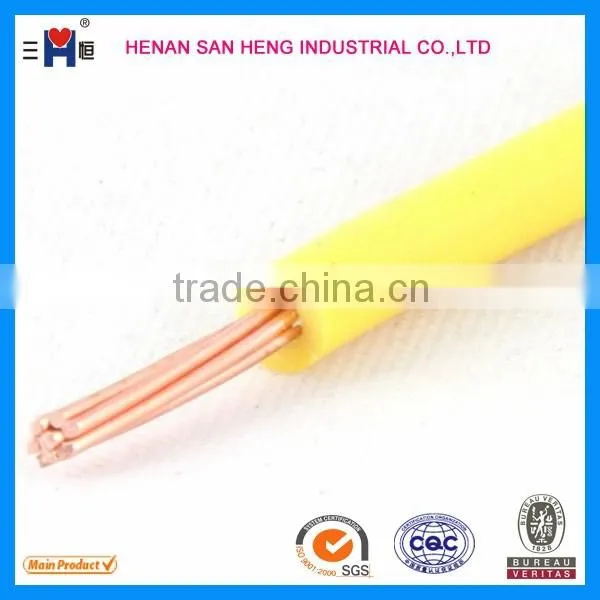

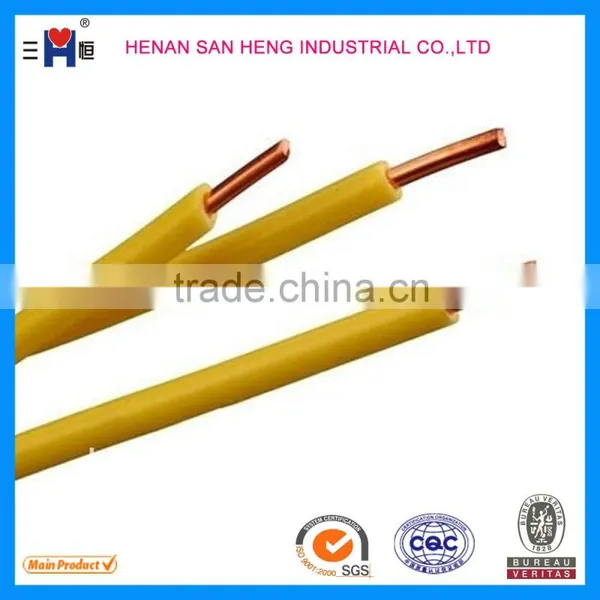

Safety bv approved cable
bv wire cable 2.5mm2 CCC approved , they are suitable for power & lighting circuits and building wiring. Also suitable for use as an earth wire the internal wiring of appliances and apparatus.
1. U0/U: 450/750V
2. Standard applied: GB/T 5023-2008 ( Equivalent IEC60502)
3. Max working temperature: 70°C

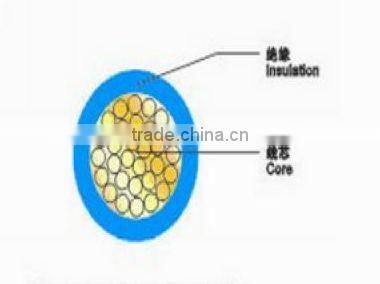

4. Conductor

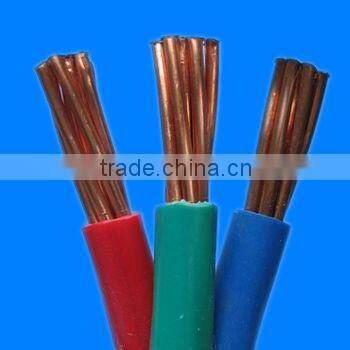

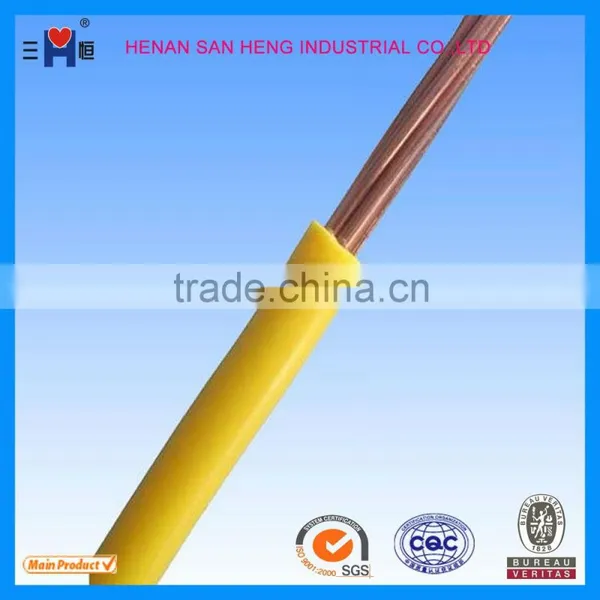

Class 2 stranded plain copper conductors

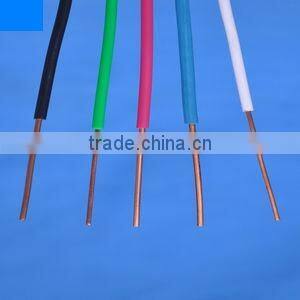

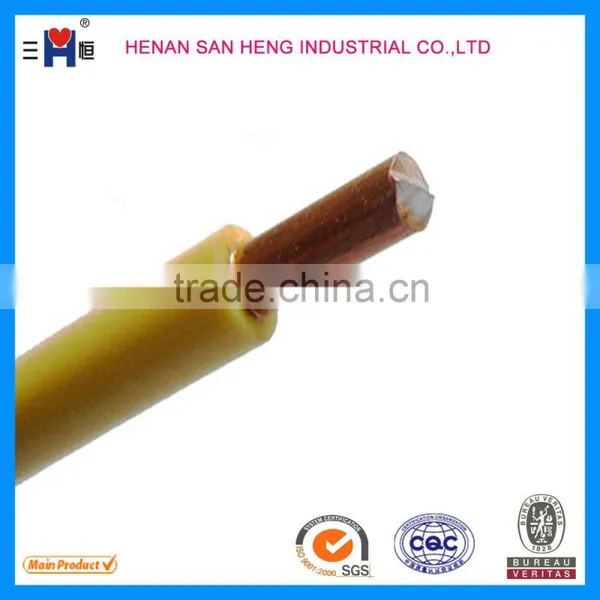

Class 1 solid plain copper conductor
5. Insulation: PVC (Polyvinyl Chloride)
6. Cores: Single core
7. Cross section area: 1.5mm2-630mm2
8. Sheath: Without Sheath

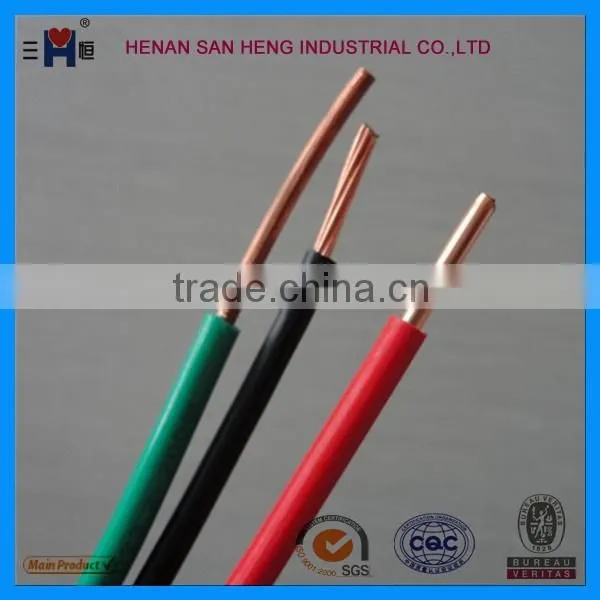

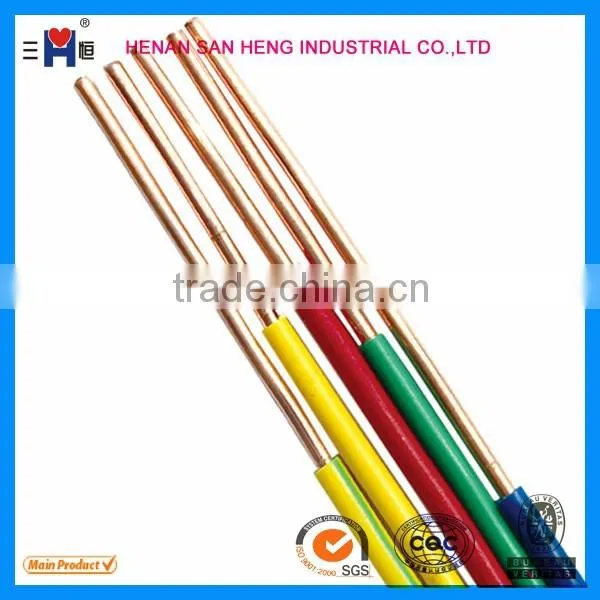

9. Color: Black, white, blue and as per request
10. Flame retardant or fire resistance or Low smoking and Halogen free or other property can be available

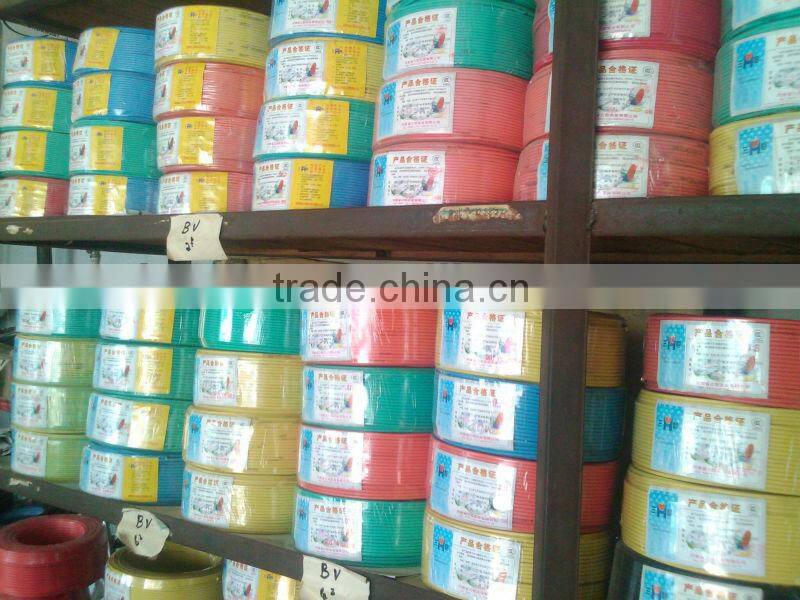

11. 100meters/coil, or as per request
12. Certification: CCC
13. OEM can be available
14. BDK is a reliable, large factory, has a good selling around world, enjoying a good reputation based on top quality and most competitive price and best service
|
Nominal Section sqmm |
Number/Diameter of Core mm |
Maximum Outer Diameter mm |
Reference Weight kg/km |
Conductor resistance at 20.C |
| 0.5 | 1/0.80 | 2.4 | 8.5 | 36.0 |
| 0.75(A) | 1/0.97 | 2.6 | 11.1 | 24.5 |
| 0.75(B) | 7/0.37 | 2.8 | 12.0 | 245 |
| 1.0(A) | 1/1.13 | 2.8 | 13.9 | 18.1 |
| 1.0(B) | 7/0.43 | 3.0 | 15.0 | 18.1 |
