single copper pvc wire cable flame retardant
Introduction of single copper pvc wire cable flame retardant
1. standard:ISO9001
2. Conductor:copper/tinned cooper(can be coustomer's requirements)
3. Insulation:PVC
4. color:White/blue/red/black/brown/yellow/green/transparent/yellow with green
5. working temperature: less than seventy degree1. The rated voltage of the wires should equal to or higher then the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower then 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be
6.1 times as high as the rated voltage of the cable.
7. The long term working temperature should lower then 70oC. The working temperature of BV-90 should lower then 90oC. And the laying temperature should higher then 0oC.
8. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.
Application of single copper pvc wire cable flame retardant:
For general purpose of internal wiring of electronic and electrical equipment, like wires for
Home Electric appliances, Lighting equipments,etc.
PVC Wire is used for lighting, electronic equipment, instument and communication equipment with rated voltage 450/750V or less
Specification of single copper pvc wire cable flame retardant
| Conductor | Insulation thickness | Overall Diameter | Minimum insulation resistance at 70°C | ||||
| Sectional Area(mm²) | No./φmm | No./φmm | No./φmm | No./φmm | mm | mm | mm |
| 0.5 | 7/0.3 | 7/0.3 | 16/0.2 | 28/0.15 | 0.6 | 2.2 | 0.012 |
| 0.75 | 7/0.37 | 7/0.37 | 24/0.2 | 42/0.15 | 0.6 | 2.4 | 0.012 |
| 1 | 7/0.43 | 7/0.43 | 32/0.20 | 56/0.15 | 0.6 | 2.6 | 0.010 |
| 1.5 | 7/0.52 | 7/0.52 | 30/0.25 | 84/0.15 | 0.7 | 3.1 | 0.010 |
| 2.5 | 7/0.67 | 19/0.41 | 50/0.25 | 140/0.15 | 0.8 | 3.6 | 0.0099 |
| 4 | 7/0.85 | 19/0.52 | 56/0.30 | 224/0.15 | 0.8 | 4.2 | 0.0082 |
| 6 | 7/1.05 | 19/0.64 | 84/0.30 | 192/0.2 | 0.8 | 4.8 | 0.0070 |
| 8 | 114/0.30 | 0.8 | 5.4 | 0.0068 | |||
| 10 | 7/1.35 | 49/0.51 | 80/0.4 | 320/0.2 | 1.0 | 6.0 | 0.0067 |
| 12 | 170/0.3 | 1.0 | 7.0 | 0.0062 | |||
| 16 | 7/1.7 | 49/0.65 | 128/0.4 | 512/0.2 | 1.0 | 7.5 | 0.0056 |
| 25 | 7/2.13 | 84/0.62 | 200/0.4 | 800/0.2 | 1.2 | 9.2 | 0.0053 |
| 35 | 7/2.52 | 133/0.58 | 280/0.40 | 1120/0.2 | 1.2 | 10.0 | 0.0046 |
| 50 | 19/1.83 | 133/0.69 | 400/0.40 | 705/0.3 | 1.4 | 12.0 | 0.0040 |
| 70 | 19/2.17 | 189/0.69 | 356/0.5 | 990/0.3 | 1.4 | 14.0 | 0.0039 |
| 95 | 19/2.52 | 259/0.69 | 485/0.5 | 1340/0.3 | 1.6 | 16.5 | 0.0035 |
| 120 | 37/2.03 | 336/0.67 | 614/0.5 | 1690/0.3 | 1.6 | 18.0 | 0.0035 |
| 150 | 37/2.27 | 392/0.6 | 765/0.5 | 2123/0.3 | 1.8 | 20.0 | 0.0035 |
| 185 | 37/2.52 | 494/0.69 | 944/0.5 | 1470/0.4 | 2.0 | 22.8 | 0.0035 |
| 240 | 61/2.24 | 627/0.7 | 1225/0.5 | 1905/0.4 | 2.2 | 26.0 | 0.0034 |
| 300 | 61/2.5 | 790/0.7 | 1530/0.5 | 2385/0.4 | 2.4 | 29.0 | 0.0033 |

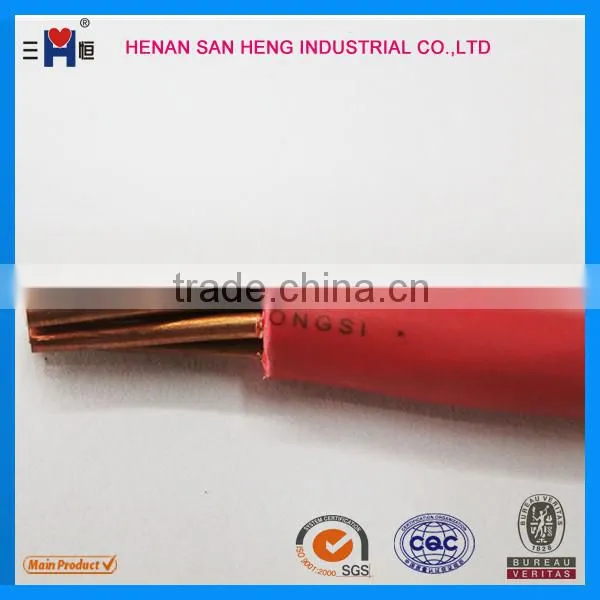

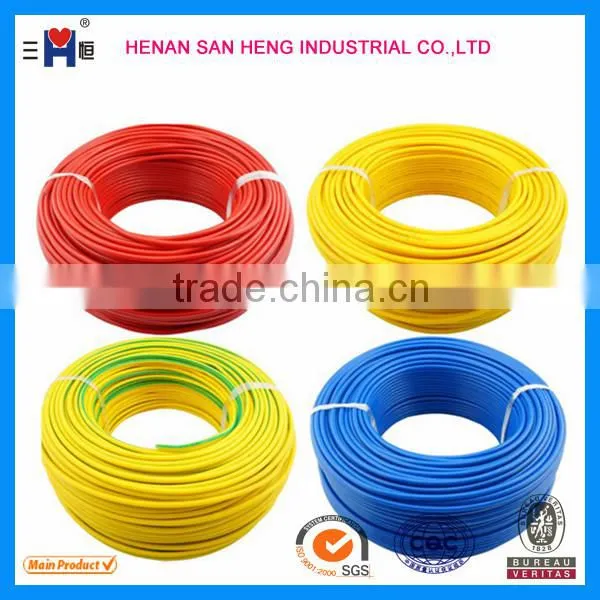

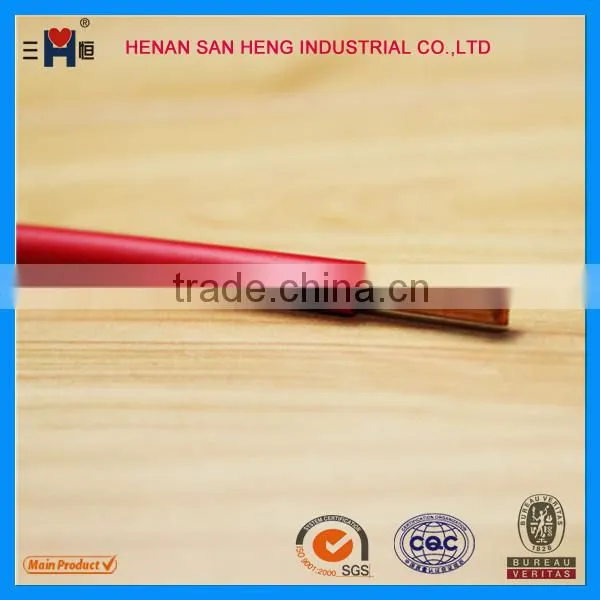

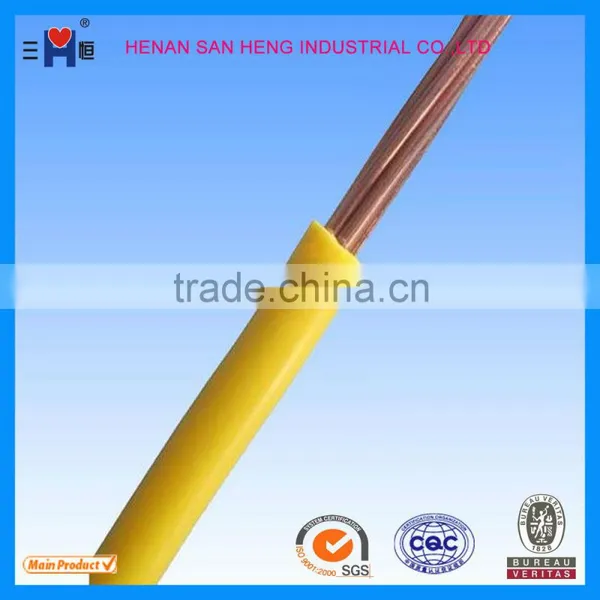

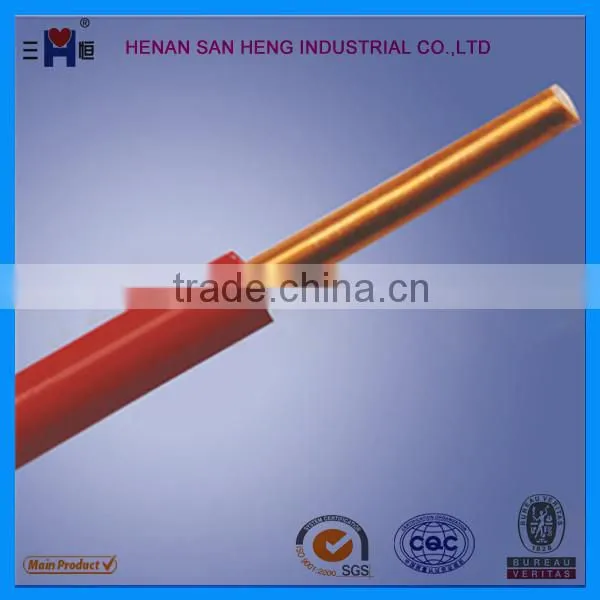

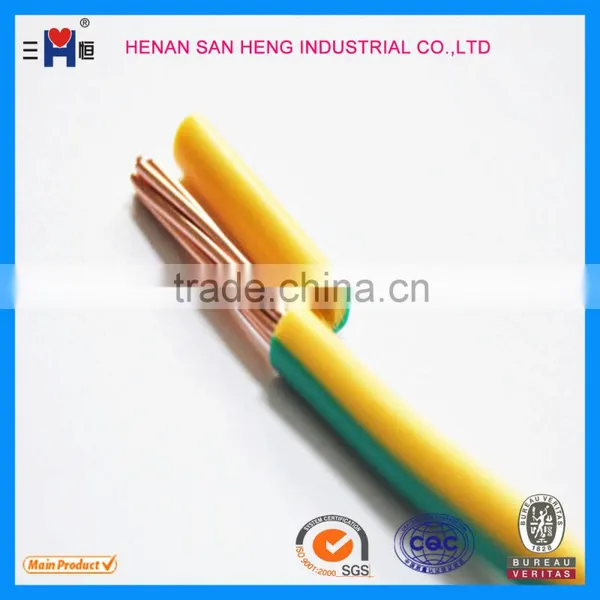

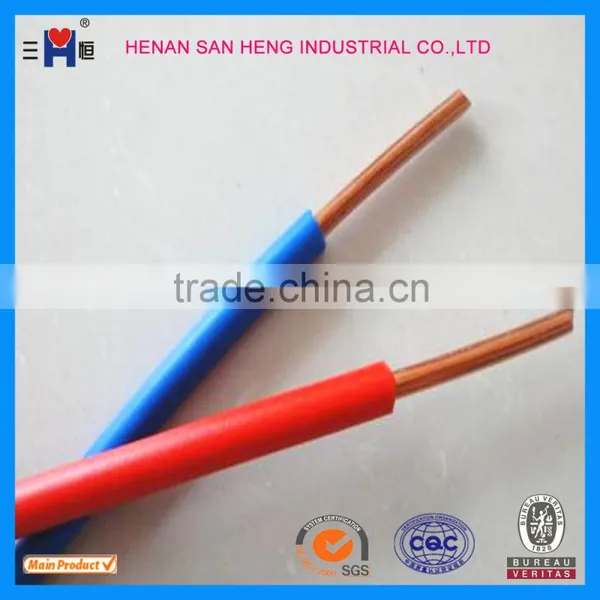

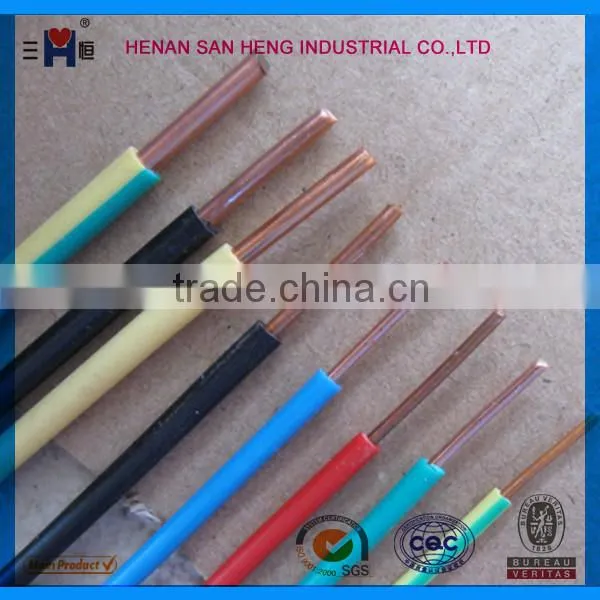

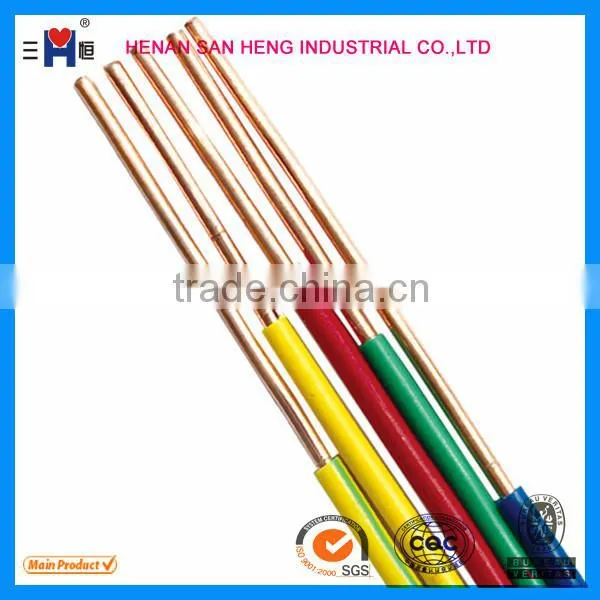

Product pictures of single copper pvc wire cable flame retardant
Package of single copper pvc wire cable flame retardant
1.OEM service accepted. Your logo, brand and design can be printed on cable and packages. We will produce meet every of your requirments. If you can send us samples, production will strictly as the samples received.
2.Feedback and direct reponse email will send to you within 12 hours.
3.We will give customer 3%-5% price discount if you have placed order to us before.
1.Established in the year 2000. Factory Size: 5,000-10,000 square meters with advanced equipments 7 production lines. 8 engineers 5 R$D elites. 80 production staff workers. 30 sales person.
2.We have more than 20 years manufacturing experience and almost 15 years experience of export.
3.Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables.
4.Main Markets: Africa, South America, Mid East, Eastern Europe, Southeast Asia.
This is cherry. If you have any problem of single copper pvc wire cable flame retardant, please feel free to contact me. Let me know your needs! RIGHT NOW ! ACTION !
