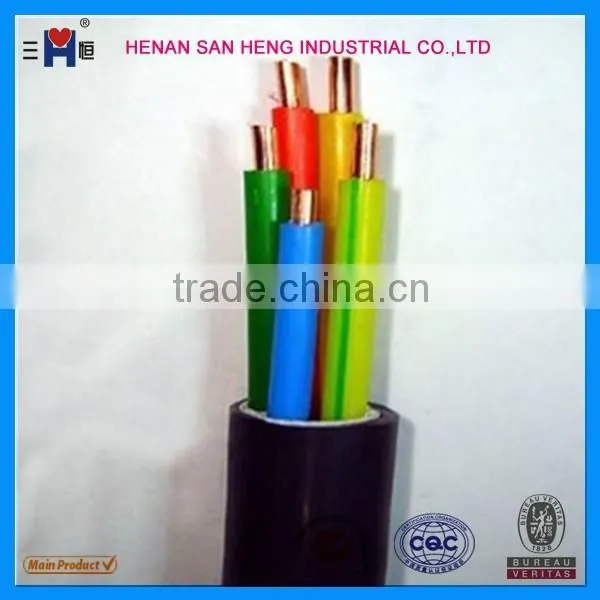

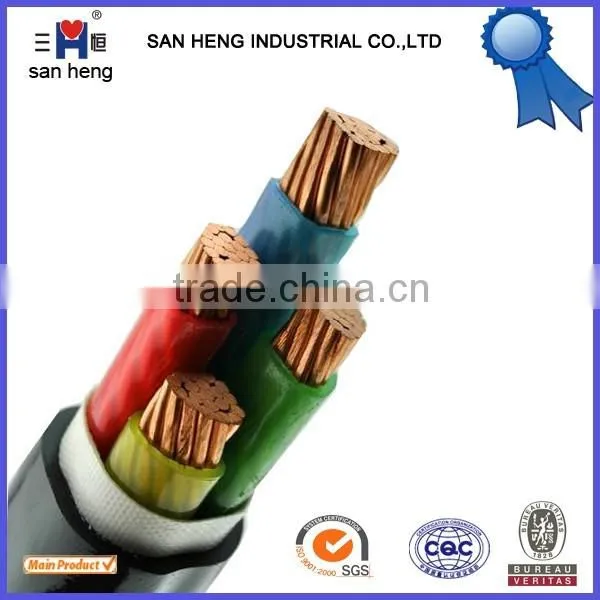

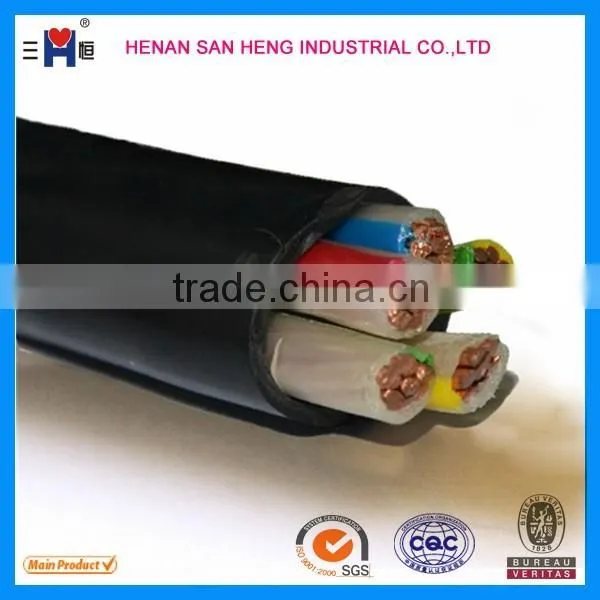

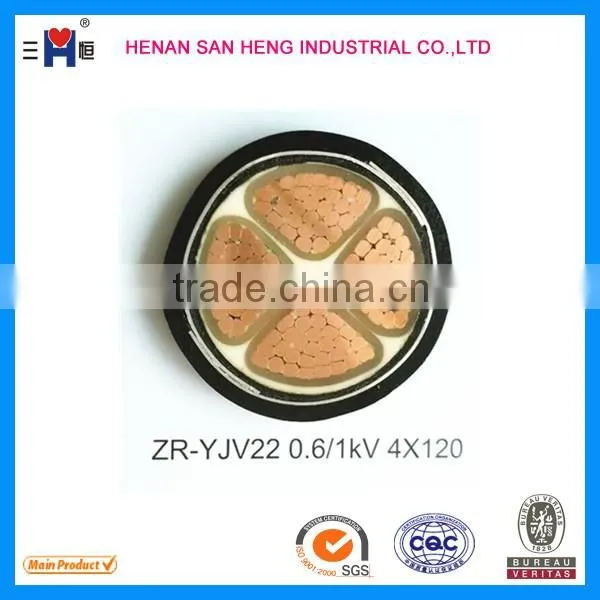

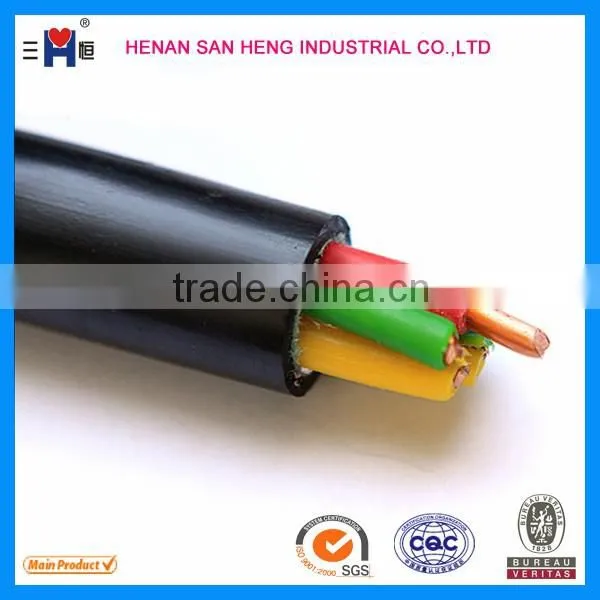

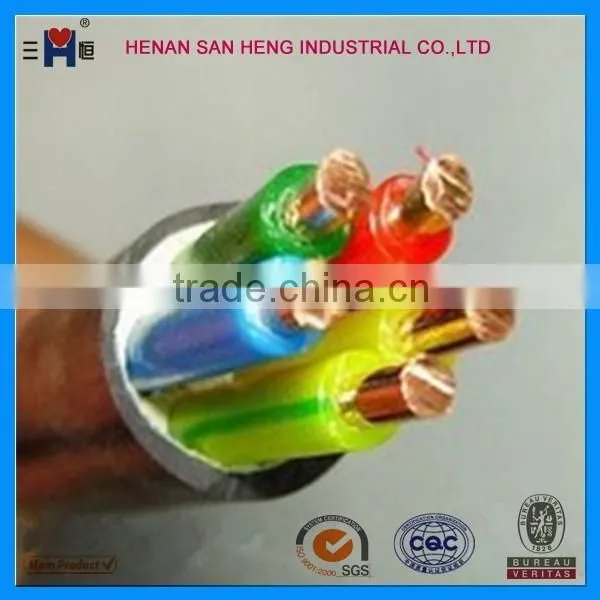

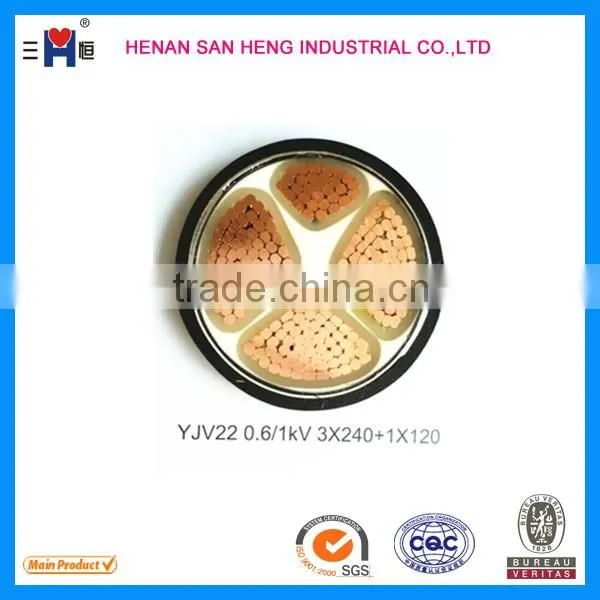

Electric Cable XLPE PVC
()
We take quality management as the foundation. The company has passed the identification of ISO9001 Quality Management System, we create the famous brand with international comperitiveness by modernized management, advanced technology, first-rate mailtechnology and technical force.
For XLPE insulated power cable ,either chemical method or physical method is employer to transform the molecular structure of PE form chain into three-dimensional network, i.e. thermoplastic PE is transformer into thermosetting XLPE. After cross-linking, the thermal and mechanical properties of PE have been greatly improved while its excellent property are still retained.
The maximum permissible operating temperature of the conductor of a XLPE insulated power cable is 90 which is higher than that of paper, PVC or PE insulated power cable. The cable has the advantage of simplicity in construction, lightness in weight, convenience in application besides its excellent electrical, thermal ,mechanical and antichemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Standard
The product is manufactured according to the standard of GB12706 or IEC,BS,DIN and ICEA upon request.
Applications
The product is suitable for use in power distribution lines or fixed installations with rated power frequency voltage up to and including 0.6/1kV
Operating characteristics
1, Rated power-frequency voltage Uo/U : 0.6/1kV
2,Max.permissible continuous operating temperature of conductor: 90
3,Max.short-circuit temperature of the conductor shall not exceed 250.(5s maximum duration ).
4,The ambient temperature under installation should not below 0
5, The bending radius of a cable should not less than 15 times of the cable diameter.
Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used , and is expressed in the form of Uo/U (Um)KV .Where :
UoThe rated powerfrequency voltage between conductor and earth or metallic scieen ,for which the cable designed;
U-The rated power-frequency voltage between conductors, for which the cable designed;
The advanced science and technology, first-rate productive equipment and superuor production line ensure the stability of the products. Word is changeable and Sanheng will always keep pace with the word.
The company owns advanced testing equipment and professional inspectors. Each product is inspected according to the standard of national quality management system.
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
