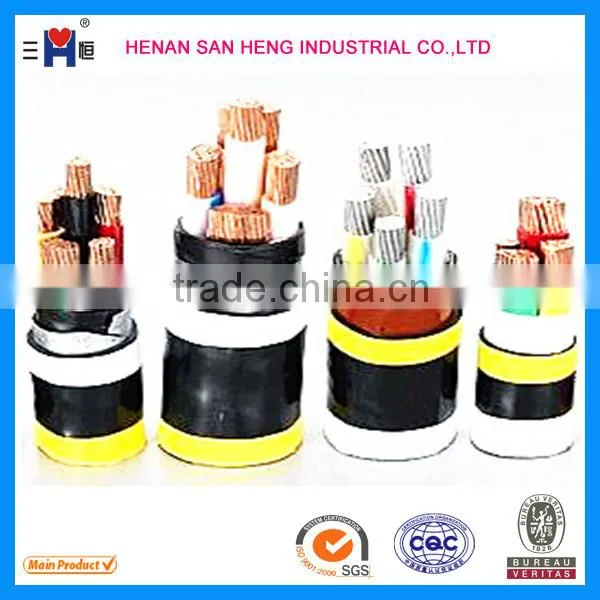

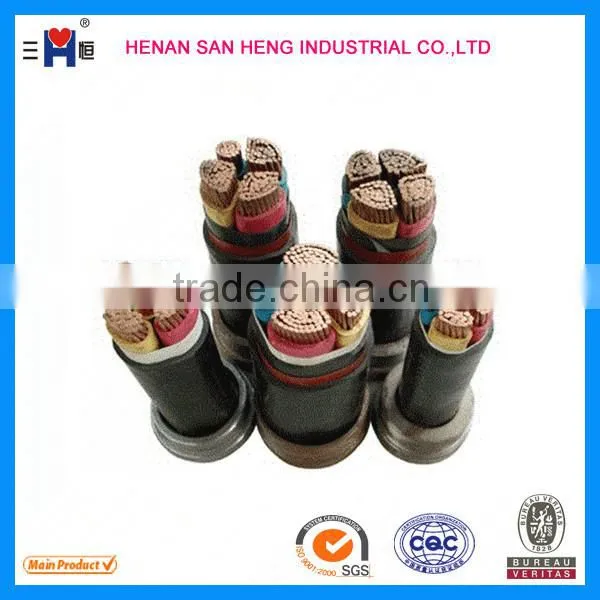

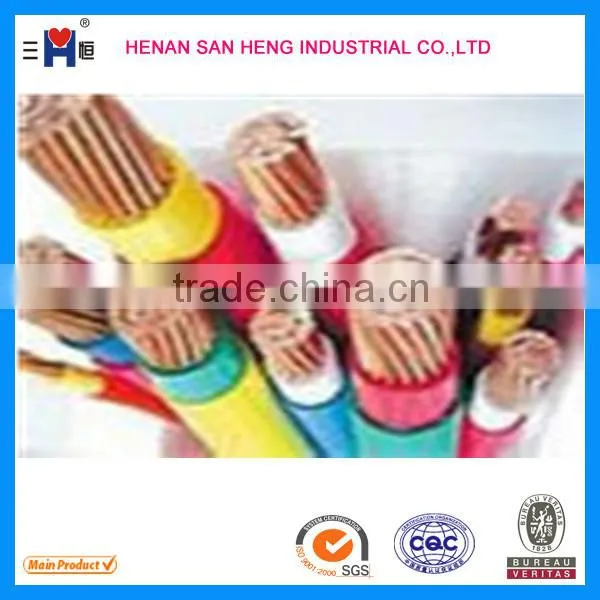

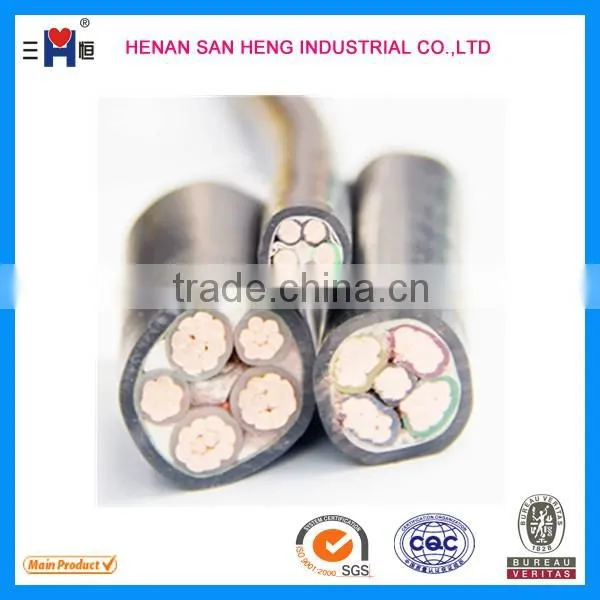

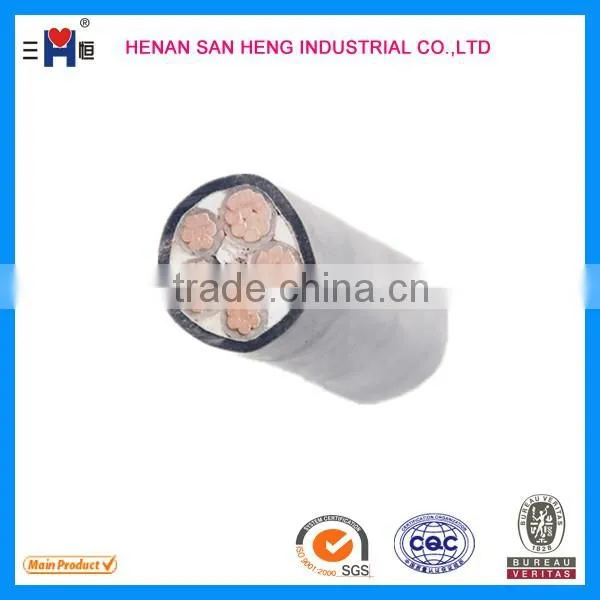

XLPE Electrical Cable
( )

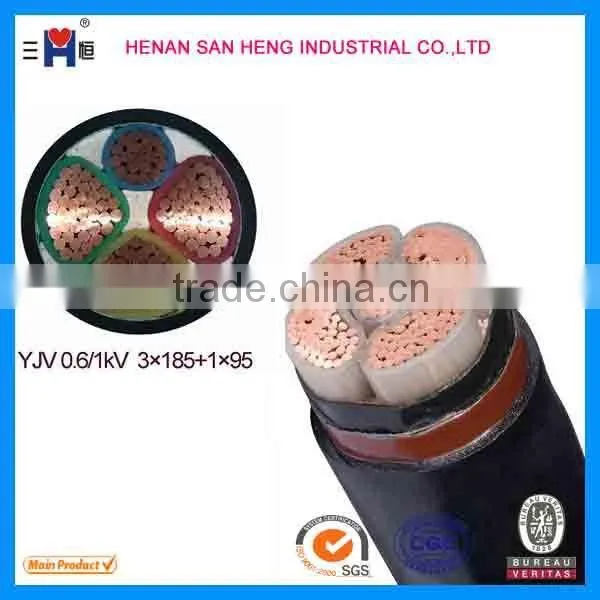

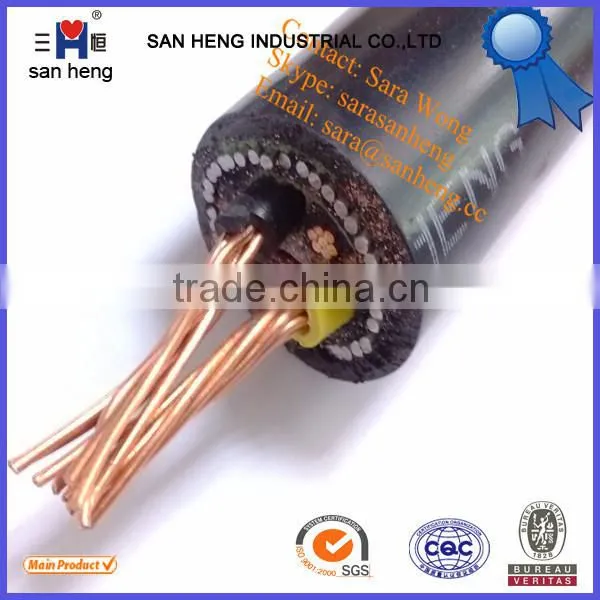

Cable structure
- Stranded bare copper conductor according to IEC 60228
- Core insulation of XLPE (cross-linked polyethylene)
- Color coded cores according to HD 308.S2
- PVC inner sheath if armoured
- Outer black sheath, PVC self-extinguishing and flame retardant, test method IEC 60332-1 and BS 4066 PT1
- Power and control cable according to BS 5467, IEC 60502
- Temperature at conductor: max. +90°C,
- Temperature during installation: 0°C to +70°C,
- Nominal voltage Uo/U 0,6/1 kV
- Test voltage a.c. 4 kV
- Minimum bending radius 8 x cable diameter Technical characteristics

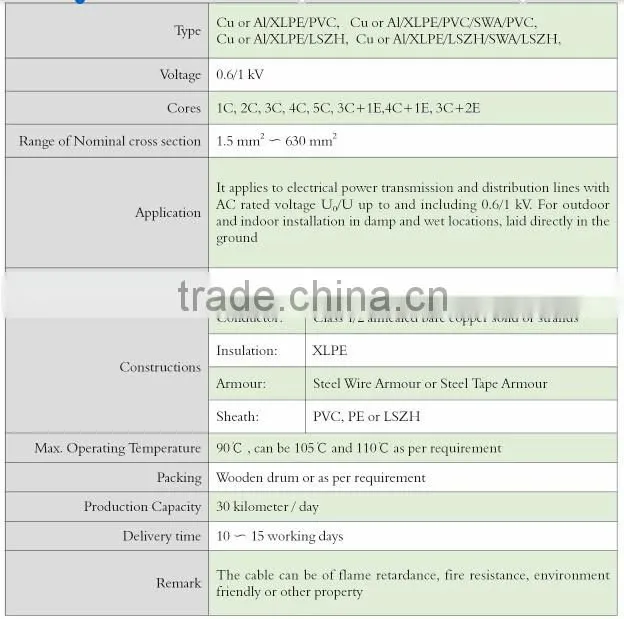

Technical data
Application
These power and control armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards or subscriber networks, where mechanical damages to the cable may occur.
As customers request
1.The company owns advanced testing equipment and professional inspectors. Each product is inspected according to the standard of national quality management system.
2.The advanced science and technology, first-rate productive equipment and superuor production line ensure the stability of the products. Word is changeable and Sanheng will always keep pace with the word.
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
