0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable

0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable thumbnail-1
0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable photo-1
Negotiable MOQ: 5 Kilometers (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
San Heng
Model Number:
YJV
Contact Supplier Request Quote Chat Now
Henan Sanheng Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing dao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name San Heng
Model Number YJV
Insulation Material PVC
Type Low Voltage
Application Underground
Conductor Material Copper
Jacket PVC

Specifications

1. Cable production with 30 years' experience
2. Prompt delivery, quality assured - CCC .
3. High quality & prompt delivery



Product Description

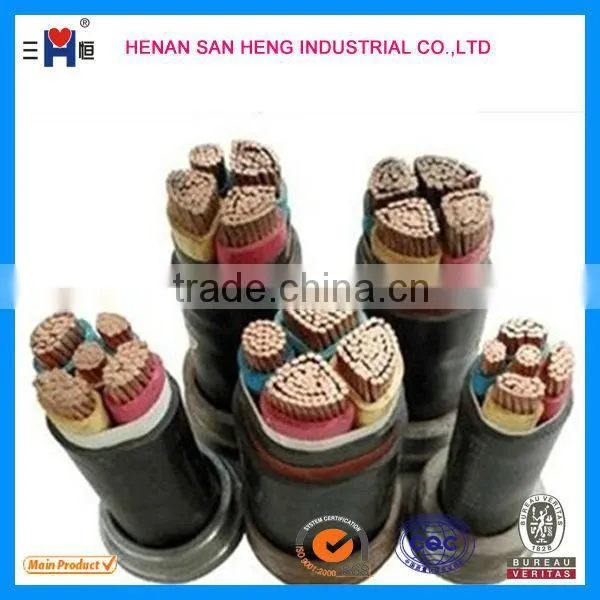

   0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable

1.Using Feature:

(1.)  The long-time working temperature of cable should not be highter than 70 °c

(2.)  When core is in short-circuit(max 5s) the temperature should not exceed 160 °c.

(3) While installation the ambient temperature should not be lower than 0 °c, bending radius of the cable;

For single no-armored cable, it is not less than 20 times of outer diameter

For single-core armored cable, it is not less than 15 times of outer diameter

For multi-core no-armored cable, it is not less than 15 times of outer diameter

For multi-core armored cable, it is not less than 12 times of outer diameter.

2. Specification Size and Technical Data:

Core number

Nominal Section(mm²)

D.C.Resistance in 20 °C(Ω/km)



O.D.(mm)

Reference Weight(Kg/km)

CU

AL

Cu

Al













3 core

1.5

17

—

10.7

141

—

2.5

23

17

11.5

180

134

4

30

23

13.6

255

183

6

39

30

14.9

341

228

10

54

41

16.3

470

285

16

71

55

19.6

697

363

25

99

76

23.4

1049

568

35

120

92

25.8

1370

702

70

186

143

28.7

2350

1031

95

227

175

32.8

3144

1355

120

262

203

34.9

3882

1624

185

352

272

43.9

5945

2464

240

420

324

49.2

7647

3132













3+1 core

3×4+1×2.5

31

23

14.2

289

202

3×6+1×4

40

31

15.8

386

262

3×10+1×6

54

42

17.3

548

329

3×16+1×10

72

56

20.5

793

408

3×25+1×16

98

75

24.6

1196

608

3×35+1×16

122

94

26.9

1518

744

3×50+1×25

153

118

27.9

2032

931

3×95+1×50

231

178

35.1

3683

1583

3×120+1×70

267

207

37.9

4617

1924

3×150+1×70

315

242

41.7

5563

2306

3×185+1×95

362

279

46.4

6929

2854

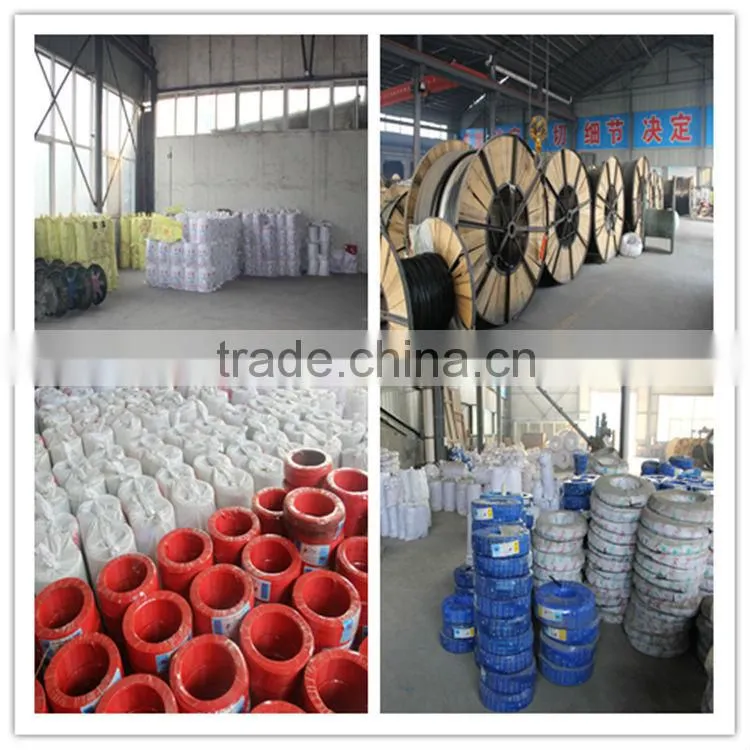

Packaging & Shipping

 International standard packing: pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable

0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable



Certifications

Quality First ! Customer First ! Service First !

Our products have been repeatedly tested by  National Ministry of Electrical Material Test Center, National Electric Wire and Cable Supervision &  Inspection Center and Wire and Cable Products Supervision & Inspection Center of Henan province to beQualified Products. We have got China electical products safety certification and in accordance with the IEC standard.

0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable



customers visit

0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable0.6 / 1 kV XLPE Insulated and PVC Sheathed,3*300MM2 SWA Power Cable





FAQ

1.Q:Are you a factory or trading company?

     A: We are a 14 years factory with more than 60 engineers.and have gained the supplier assessment.

2.Q:Where is your factory located? How can I visit there?

     A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?

     A: We are honored to offer you samples according your inquiry.

4.Q:How does your factory do regarding quality control?

    A: Our factory has gained BV,SGS,CCC,ISO, certification.



contact person

If you have any problem , please don't hesitate to contact us.Your inquiry is welcomed at anytime.

we are confident to render our best service to you with promptness & efficiency.
