Specifications
Cable production with 30 years' experience-Prompt delivery, quality assured - CCC
-Rated voltage 300V

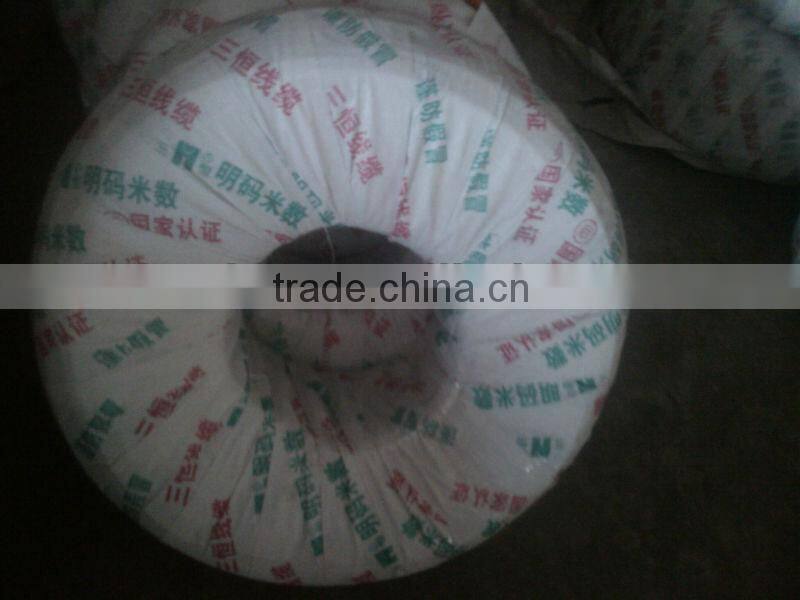

Cable - telecommunication cable - 4-Pair 23AWG CAT6 FTP Network Cable
1. Cable is made complying with the national standed and have pass the CCC - China Compulsory Certification, which contains the recondition of national security certificate - CCEE, imports of safety and quality licensing system - CCIB, China Certification Electromagnetic Compatibility - EMC
2. Application: 10Base-T4 100Base-TX 100Base-VG-ANYLAN 155MbpsATM 622 MbpsATM 1000Base-T 10Gbase-T
Standard: According to ISO/IEC11801, EN50173, TIA/EIA 568-B
3. Construction Matrix:
|
FTP |
Conductor |
23/24AWG Solid Copper |
Insulation |
Polyehylene |
Screen |
Overall Aluminum Screen |
Drain Wire |
7/0.2mm or 1/0.5mm |
Outer Sheath |
PVC |
4.Application: used as work-station option to the FD/IDF and other horizontal cabling, supporting TP-PMD audio, integrated service digital network (ISDN), ATM 155Mbps or 622Mbps, 100Mbps TPDDI, fast ethernet.
5. Specification Size and Technical Data
- Frequency: 1250MHZ (common standard)
- Characteristic Impedance: 100±10
- Noninal Velocity of Propagation:68
- Maximum Mutual Capacitance: 5.6NF/100m
- Maximum Capacitance Unbal ance: 330pf/100m
- Maximum DC Resistance: 7.50/100m
- Maximum Resistance Unbalance: 3
- Maximum Bending radius:10xcable outer diameter
- Voltage Rating: 60VRMS
- Maximum Pulling Load : 80N
- Working Temperature: -20˜60°c
- Storage Temperature: -5˜50°c
- Flame Retardancy : IEC 332-1(FRPVC&LSOH jacket)
- IEC 332-1&IEC 332-3C(FR LSOH jacket).
