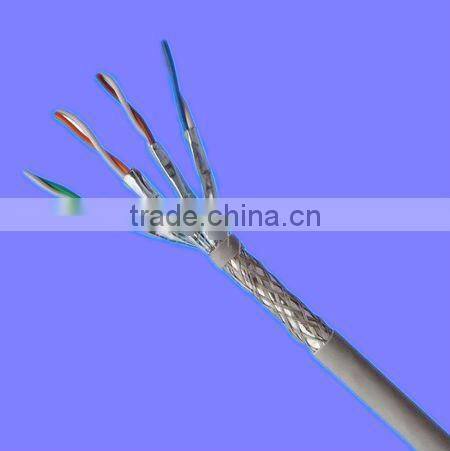

Help CenterCommunication Cable-Cat5
Related Products
-
Telephone Line_Cat5e_cat 7_communication Wire Cable_network Line_telephone CableNegotiableMOQ: 5 Kilometers -
RoHS Approved LAN Cable UTP Cat5eNegotiableMOQ: 5 Kilometers
-
Communication Cable-- Speaker Cable-Cat5eUS$ 0.1 - 1MOQ: 5 Kilometers
-
Cat-7 Commucation CableUS$ 0.12 - 0.73MOQ: 5 Kilometers
-
Communication Cable - FTP CAT6 NETWORK CABLEUS$ 0.01 - 0.1MOQ: 5 Kilometers
Specifications
Enternet cable- Prompt delivery,quality assured-CCC
- Temperature in working :-10~60 oC
Ethernet cable --Telecommucation cable
1.Reference Standard : TIA/EIA568B
2.Our products all pass the CCC (China Compulsory Certification) which contains the recognization of national security certificate (CCEE), imports of safety and quality licensing system (CCIB), China Certification Electromagnetic Compatibility (EMC).
3.It have dependable performance and dependable performance
4.The temperature of the conductor in the working time is -10~60 oC and the installation temperature is -20~75 oC
5.Technical Character:
NO.Of Conductor |
Structure(mm) |
O.D(mm) |
1 pair |
2*1/0.5 |
2.6 |
2 pair |
4*1/0.5 |
3.2 |
3 pair |
6*1/0.5 |
3.6 |
4 pair |
8*1/0.5 |
4.1 |
6.
Name |
Specification |
Inner Conductor Diameter |
Insulation Diameter |
Jacket |
|
UTPcat5e |
HSYV-5e 4*2*0.52 |
0.5mm(BC) |
PE0.93mm |
Fire resistance or LSOH PVC |
|
FTPcat5e |
HSYV-5e 4*2*0.52 |
6 0.5mm(BC) |
PE0.93mm Al Foil shielded |
Fire resistance or LSOH PVC |
|
SFTPcat5e |
HSYV-5e 4*2*0.52 |
0.5mm(BC) |
PE0.93mm Al Foil+weave shielded |
Fire resistance or LSOH PVC |
7.We can also customize the electrical wire and cable as your requestyou can decide the core count and cross seaction of the conductor,as well as the jacket and insulation
