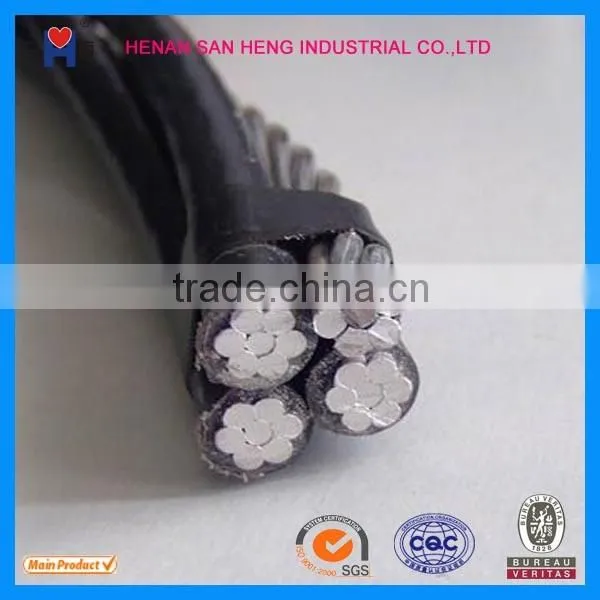

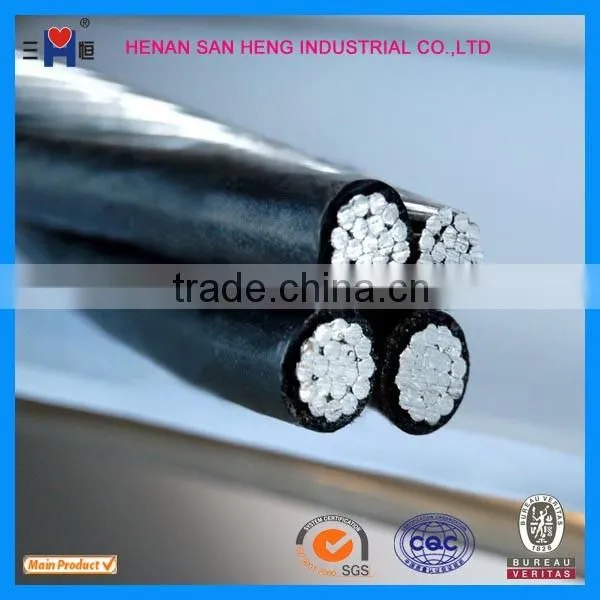

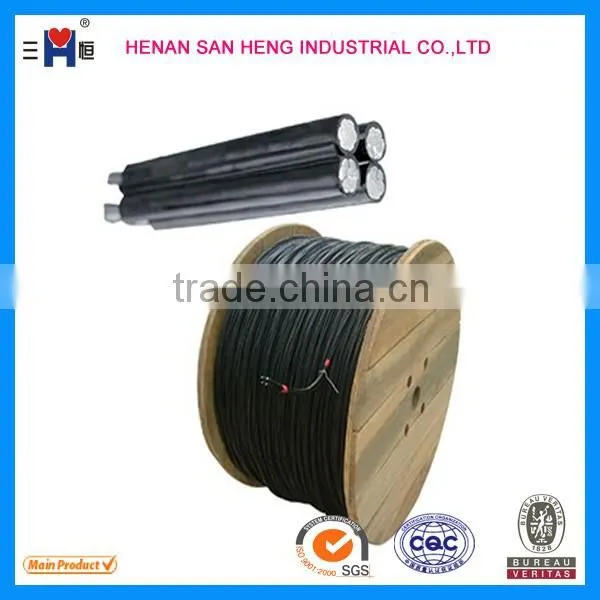

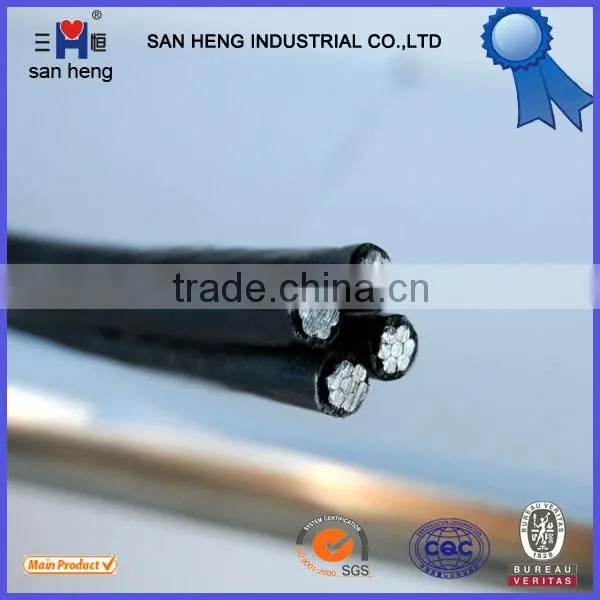

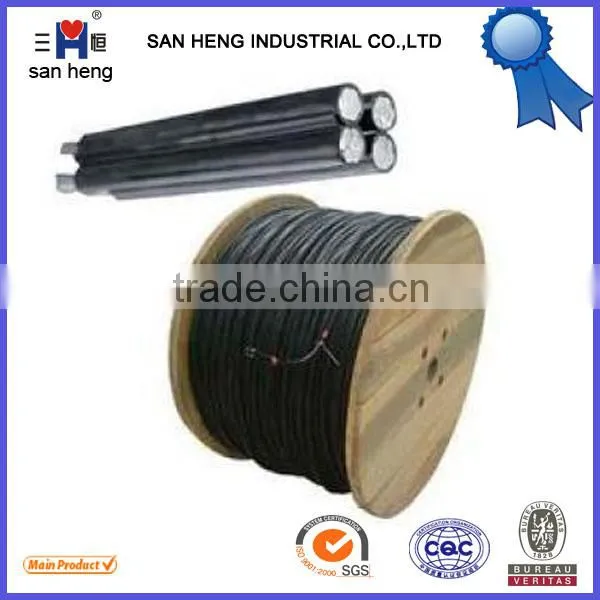

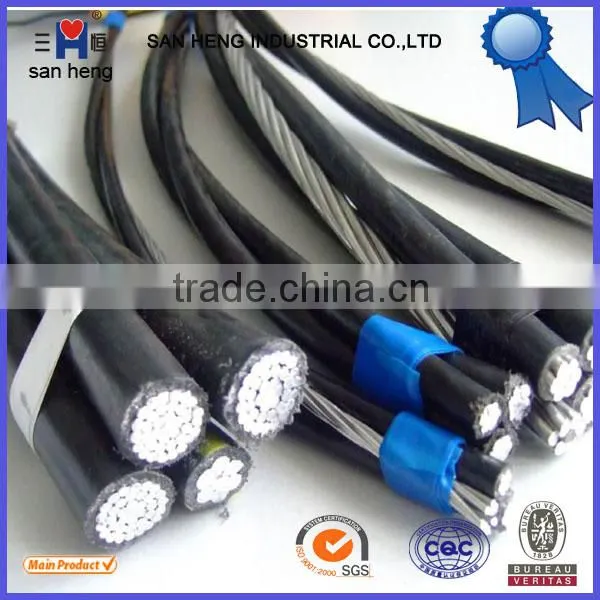

ABC aluminum conductor xlpe insulated aerial bundle cable
1. Application of ABC aluminum conductor xlpe insulated aerial bundle cable: ABC aluminum conductor xlpe insulated aerial bundle cable
ABC aluminum conductor xlpe insulated aerial bundle cable are used for electric power tranmission, extensively used for rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
2. Type of ABC aluminum conductor xlpe insulated aerial bundle cable :
ABC aluminum conductor xlpe insulated aerial bundle cable covers mainly three types:
Two core(Duplex Service Drop)
Three core(Triplex Service Drop)
Four core(Quadruplex Service Drop)
The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor , etc. And we can still produce the cables according to the request of customers.
3. Construction of ABC aluminum conductor xlpe insulated aerial bundle cable :
Rated voltage 0.6/1kv
Phase conductor : Aluminium conductor
Insulation : PVC or PEe or XLPE
Neutral Bare Conductor: AAC , ACSR , AAAC .
ABC aluminum conductor xlpe insulated aerial bundle cable
Nominal cross-section area (mm2) |
Conductor structure |
Insulation material |
Insulation Thickness (mm) |
Approx. Overall Diameter (mm) |
Approx.weight (kg/km) |
Packing meters per drum |
||
Phase (Compacted AL) |
Neutral(bare ACSR) |
|||||||
(No./mm) |
Aluminum (No./mm) |
Steel (No./mm) |
||||||
1x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
pvc |
1.2 |
12.5 |
121.9 |
250-4000m |
1x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
|
1.2 |
14.9 |
182.2 |
250-4000 |
1x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
|
1.4 |
17.5 |
254.7 |
250-3500m |
1x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
23.6 |
382.2 |
250-3000m |
1x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
27.6 |
528.2 |
250-3000m |
2x16+16 |
7/1.72 |
6/1.72 |
1/1.72 |
|
1.2 |
14.2 |
187.6 |
250-4000m |
2x25+25 |
7/2.15 |
6/2.15 |
1/2.15 |
|
1.2 |
16.7 |
273.8 |
250-3500m |
2x35+35 |
7/2.54 |
6/2.54 |
1/2.54 |
|
1.4 |
19.7 |
386.9 |
250-3500m |
2x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
26.1 |
617.2 |
250-3000m |
2x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
30.5 |
850.9 |
250-3500m |
3x70+70 |
19/2.15 |
12/2.15 |
7/2.15 |
|
1.4 |
29.7 |
1024.3 |
250-3000m |
3x95+95 |
19/2.54 |
12/2.54 |
7/2.54 |
|
1.6 |
34.6 |
||
Company Profile
Sanheng industrial CO.,Ltd,is one of the most professional cable &wire producer under modern enterprise system in China,which was founded in 2000,integrating production and sales.Our products are mainly covering PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerialbundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables, and other related products. ABC aluminum conductor xlpe insulated aerial bundle cable
Main Markets: Domestic market, Africa, Eastern Europe,
Our advantages
1.Good cost-control system, with highly-competitive prices.
2.Strong and Professional R&D team to meet your specific needs.
3.Fast delivery &reliable products are always the reason why you choose us.

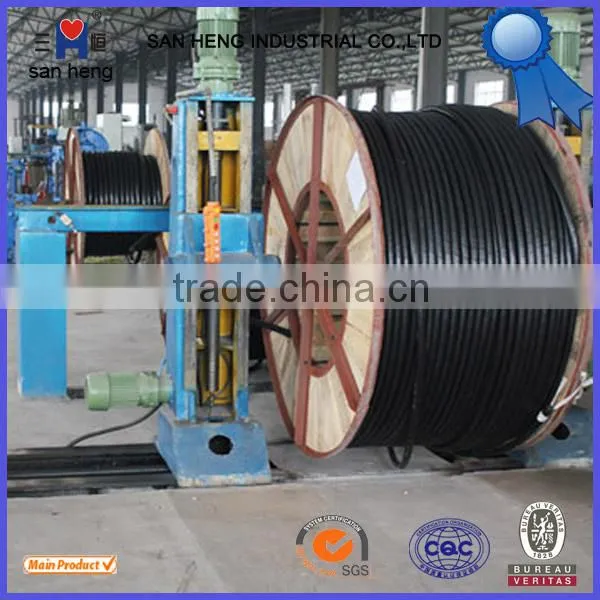

The factory is located in Gongyi,Zhengzhou,Henan,China, with professional production, modern equipments, scientific management, firstclass technicians, Elite team, high quality workers. ABC aluminum conductor xlpe insulated aerial bundle cable
Director Mr. Lee together with all staff members sincerely welcome your visit and guidance at anytime! ABC aluminum conductor xlpe insulated aerial bundle cable
welcome to inquire ABC aluminum conductor xlpe insulated aerial bundle cable.
1 You inquiry replied in hours.
2 Your label design in the requirement ready in 2 days.
3 Conductors 100% inspected in accordance with Standard.
4 Products remake or refund guarantee due to quality issue.
5 Prompt shipment ,cargoes loading photos sent to you by e—mail.
6 Fast ,responsible and sincere after—sale service.
Quality First ! Customer First ! Service First !
We have got China national quality certification CCC and in accordance with Intenational standard IEC. also can customize as your requested standards.
If you have any problem , please don't hesitate ro contact us.Your inquiry is welcomed at anytime.
we are confident to render our best service to you with promptness & efficiency.
