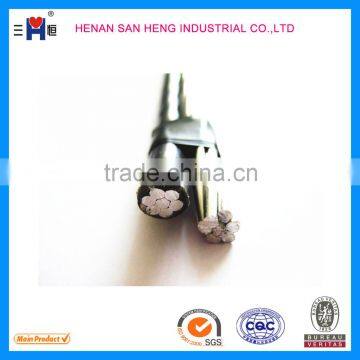

Help CenterABC Aerial Bundled Cable 4x50
Related Products
( )
A. Application
The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used inrebuilding of an urban. Primarily used for overhead service applications such as street lighting,outdoor lighting, and temporary service for construction.
B. Standard
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5.Compressed Round Stranded Aluminum Conductors Single Input Wire. It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
C. Specification
1 The basic construction is as follows: single core power core consisting of standard aluminum conductors, insulated with pvc insulation
2 Application:To be used at cottages of 600V phaseto-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLPE) insulated conductors.
3. Packaging Detail: Wooden drums, steel drums or steel-wooden drums.
4. Delivery Detail: Within 15 working days and depending on the quantity.
| Dimensions – nominal cross-section | Number of cores | External diameter of rope | External diameter of rope | Conductor resistance at 20 °C | Insulation thickness | Diameter with insulation | Diameter with insulation |
| min. | max. | max. | approx. | min. | max. | ||
| mm² | mm | mm | Ω/km | mm | mm | mm | |
| Phase conductor | |||||||
| 16 | 7 | 4,6 | 5,1 | 1,910 | 1,2 | 7,0 | 7,8 |
| 25 | 7 | 5,8 | 6,3 | 1,200 | 1,4 | 8,6 | 9,4 |
| 35 | 7 | 6,8 | 7,3 | 0,868 | 1,6 | 10,0 | 10,9 |
| 50 | 7 | 7,9 | 8,4 | 0,641 | 1,6 | 11,1 | 12,0 |
| 70 | 19 | 9,7 | 10,2 | 0,443 | 1,8 | 13,3 | 14,2 |
| Neutral conductor | |||||||
| 71,5 AlMg 1 | 7 | 10,2 | 10,6 | 0,470 | 1,8 | 14,6 | |
| 70 AlMgSi | 7 | 10,0 | 10,2 | 0,500 | 1,6 | 12,9 | 13,6 |
| Construction of bundle | Lay of stranding | Bundle diameter | Al weight | Bundle weight |
| N * mm² | mm | mm | kg/km | kg/km |
| 2x16 | 300 | 15,0 | 93 | 137,000 |
| 4x16 | 350 | 18,0 | 186 | 270,000 |
| 2x25 | 350 | 18,4 | 145 | 214,000 |
| 4x25 | 430 | 22,2 | 290 | 431,000 |
| 3x25 + 70 | 700 | 26,6 | 421 | 569,000 |
| 3x25 + 70 + 1x16 | 700 | 26,6 | 467 | 672,000 |
| 3x25 + 70 + 2x16 | 700 | 29,6 | 513 | 739,000 |
| 3x35 + 70 | 760 | 29,8 | 509 | 688,000 |
| 3x35 + 70 + 1x16 | 760 | 29,8 | 555 | 759,000 |
| 3x35 + 70 + 2x16 | 760 | 29,8 | 602 | 825,000 |
| 3x50 + 70 | 850 | 33,1 | 639 | 809,000 |
| 3x50 + 70 + 1x16 | 850 | 33,1 | 685 | 879,000 |
| 3x50 + 70 + 2x16 | 850 | 33,1 | 732 | 945,000 |
| 3x70 + 70 | 980 | 38,6 | 813 | 1,044 |
| 3x70 + 70 + 1x16 | 980 | 38,6 | 860 | 1,114 |
| 3x70 + 70 + 2x16 | 980 | 38,6 | 907 | 1,181 |
| 3x70 + 70 + 2x25 | 980 | 38,6 | 958 | 1,253 |
