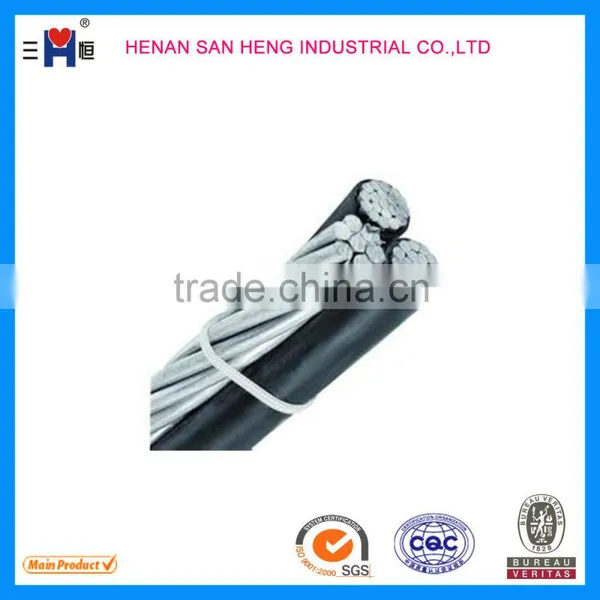

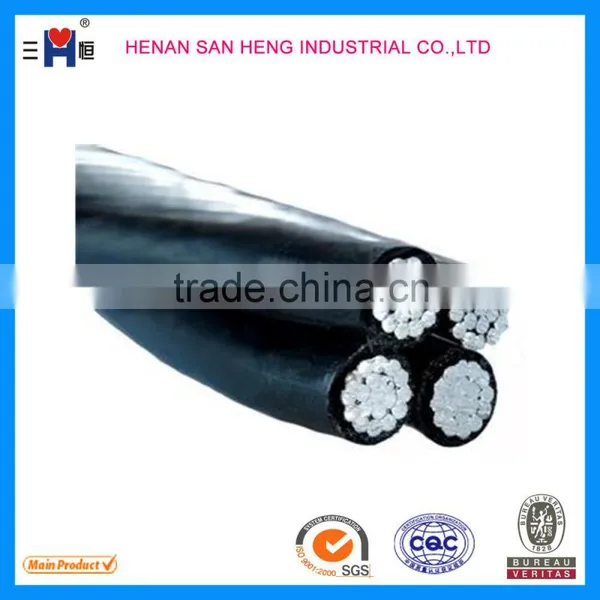

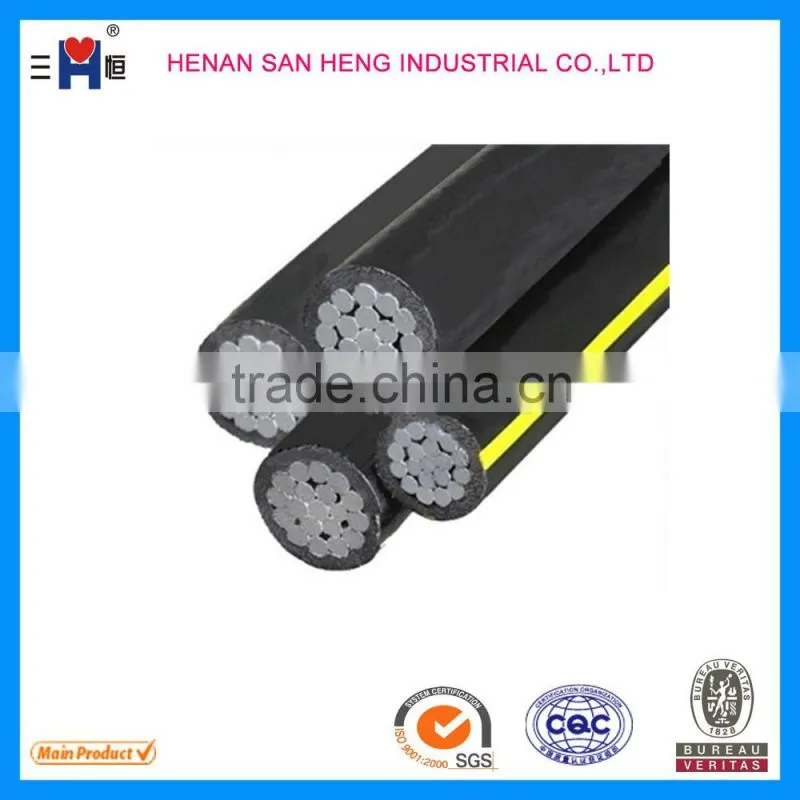

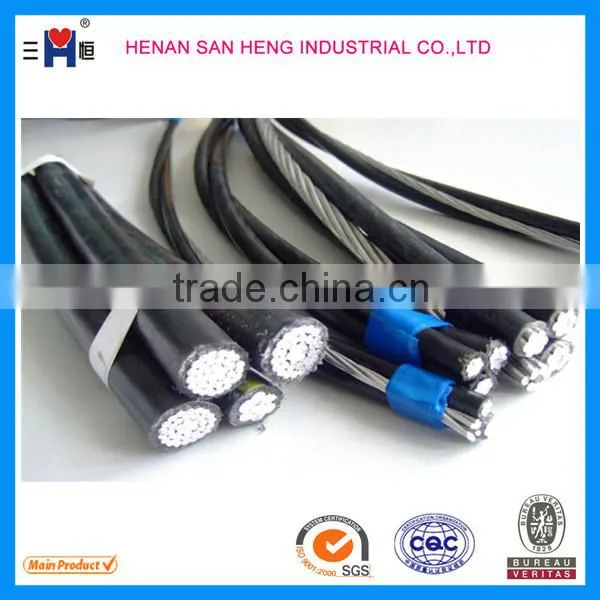

11kv abc aerial bundle cable
A. Application
The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used inrebuilding of an urban. Primarily used for overhead service applications such as street lighting,outdoor lighting, and temporary service for construction.
B. Standard
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5.Compressed Round Stranded Aluminum Conductors Single Input Wire. It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
C. Specification
1 The basic construction is as follows: single core power core consisting of standard aluminum conductors, insulated with pvc insulation
2 Application:To be used at cottages of 600V phaseto-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLPE) insulated conductors.
3. Packaging Detail: Wooden drums, steel drums or steel-wooden drums.
4. Delivery Detail: Within 15 working days and depending on the quantity.
| Dimensions – nominal cross-section | Number of cores | External diameter of rope | External diameter of rope | Conductor resistance at 20 °C | Insulation thickness | Diameter with insulation | Diameter with insulation |
| min. | max. | max. | approx. | min. | max. | ||
| mm² | mm | mm | Ω/km | mm | mm | mm | |
| Phase conductor | |||||||
| 16 | 7 | 4,6 | 5,1 | 1,910 | 1,2 | 7,0 | 7,8 |
| 25 | 7 | 5,8 | 6,3 | 1,200 | 1,4 | 8,6 | 9,4 |
| 35 | 7 | 6,8 | 7,3 | 0,868 | 1,6 | 10,0 | 10,9 |
| 50 | 7 | 7,9 | 8,4 | 0,641 | 1,6 | 11,1 | 12,0 |
| 70 | 19 | 9,7 | 10,2 | 0,443 | 1,8 | 13,3 | 14,2 |
| Neutral conductor | |||||||
| 71,5 AlMg 1 | 7 | 10,2 | 10,6 | 0,470 | 1,8 | 14,6 | |
| 70 AlMgSi | 7 | 10,0 | 10,2 | 0,500 | 1,6 | 12,9 | 13,6 |
| Construction of bundle | Lay of stranding | Bundle diameter | Al weight | Bundle weight |
| N * mm² | mm | mm | kg/km | kg/km |
| 2x16 | 300 | 15,0 | 93 | 137,000 |
| 4x16 | 350 | 18,0 | 186 | 270,000 |
| 2x25 | 350 | 18,4 | 145 | 214,000 |
| 4x25 | 430 | 22,2 | 290 | 431,000 |
| 3x25 + 70 | 700 | 26,6 | 421 | 569,000 |
| 3x25 + 70 + 1x16 | 700 | 26,6 | 467 | 672,000 |
| 3x25 + 70 + 2x16 | 700 | 29,6 | 513 | 739,000 |
| 3x35 + 70 | 760 | 29,8 | 509 | 688,000 |
| 3x35 + 70 + 1x16 | 760 | 29,8 | 555 | 759,000 |
| 3x35 + 70 + 2x16 | 760 | 29,8 | 602 | 825,000 |
| 3x50 + 70 | 850 | 33,1 | 639 | 809,000 |
| 3x50 + 70 + 1x16 | 850 | 33,1 | 685 | 879,000 |
| 3x50 + 70 + 2x16 | 850 | 33,1 | 732 | 945,000 |
| 3x70 + 70 | 980 | 38,6 | 813 | 1,044 |
| 3x70 + 70 + 1x16 | 980 | 38,6 | 860 | 1,114 |
| 3x70 + 70 + 2x16 | 980 | 38,6 | 907 | 1,181 |
| 3x70 + 70 + 2x25 | 980 | 38,6 | 958 | 1,253 |
1.The company owns advanced testing equipment and professional inspectors. Each product is inspected according to the standard of national quality management system.
2.The advanced science and technology, first-rate productive equipment and superuor production line ensure the stability of the products. Word is changeable and Sanheng will always keep pace with the word.
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
