We take quality management as the foundation. The company has passed the identification of ISO9001 Quality Management System, we create the famous brand with international comperitiveness by modernized management, advanced technology, first-rate mailtechnology and technical force.
ABC Cable--Aerial Bundle Cable
1.Applacation: the cables are designed for aerial power lines and room-entrance wires with Uo/U up to and including 0.6/1 KV.
2.Operating Characteristcs:
→Rated coltage Uo/U is 0.6/1 KV
→Max.Continuous permissive working temperature of Insulation Material.
→The installation temperature of cable should be -20 °c
3. Technial Parameter
Cable Overall Diameter | Cable Permissive bending radius |
≤25 mm | ≥4D |
≥25 mm | ≥6D |
Core number* conductor diameter (mm²) | HDPE Insulation Thickness (mm) |
Approx Overall Diameter (mm) |
Approx Weight (kg/mm) | |
2*16+1*16 | 1.2 | 14.2 | 187.6 | |
2*25+1+25 | 1.2 | 16.7 | 273.8 | |
2*35+1*35 | 1.4 | 19.7 | 386.9 | |
2*50+1*50 | 1.4 | 22.5 | 506 | |
2*70+1*70 | 1.4 | 26.1 | 617.2 | |
2*95+1*95 | 1.6 | 30.5 | 850.9 | |
3*16+1*16 | 1.2 | 16.3 | 253.3 | |
3*25+1*25 | 1.2 | 19.1 | 371.9 | |
3*35+1*35 | 1.4 | 22.5 | 519.1 | |
3*50+1*50 | 1.4 | 25.7 | 678.1 | |
3*70+1*70 | 1.4 | 29.7 | 1024.3 | |
3*95+1*95 | 1.6 | 34.6 | 1413.7 |

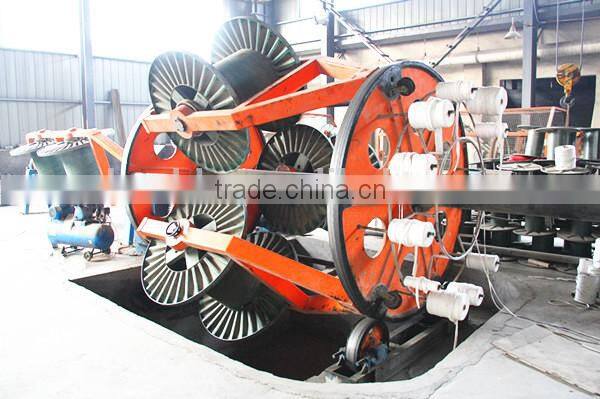

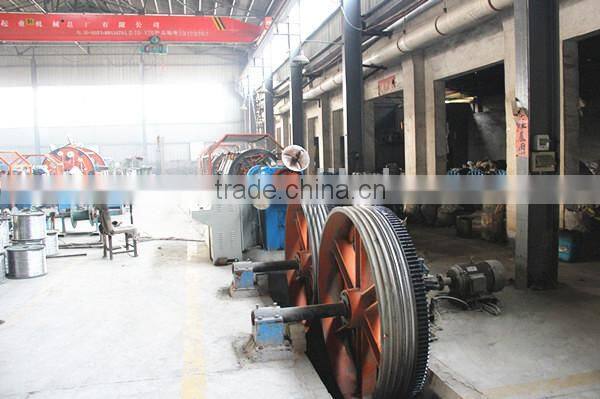

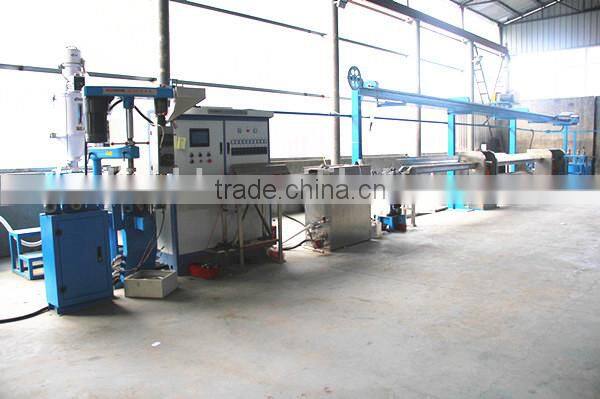

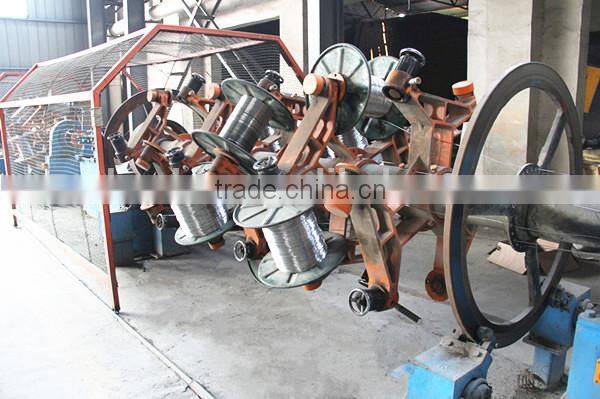

The advanced science and technology, first-rate productive equipment and superuor production line ensure the stability of the products. Word is changeable and Sanheng will always keep pace with the word.

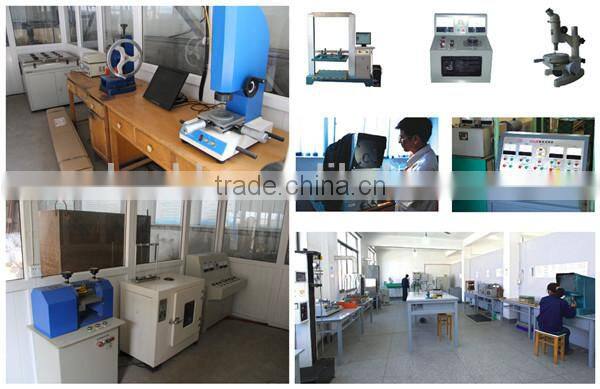

The company owns advanced testing equipment and professional inspectors. Each product is inspected according to the standard of national quality management system.
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
