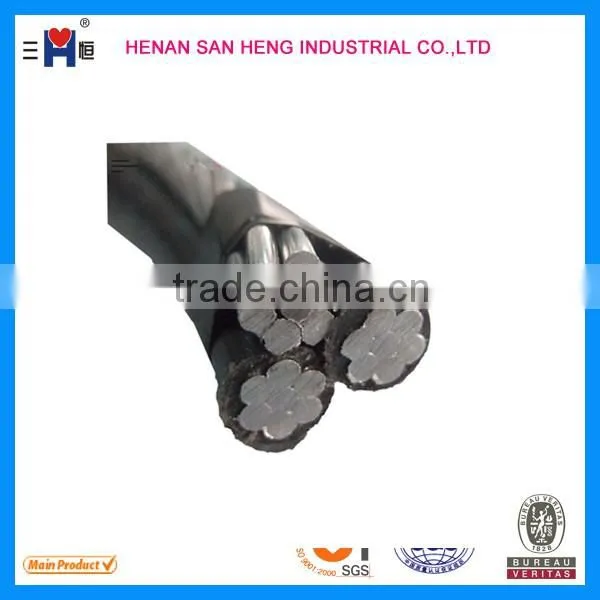

95mm abc bundle cable
( )
Applications
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Construction
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.

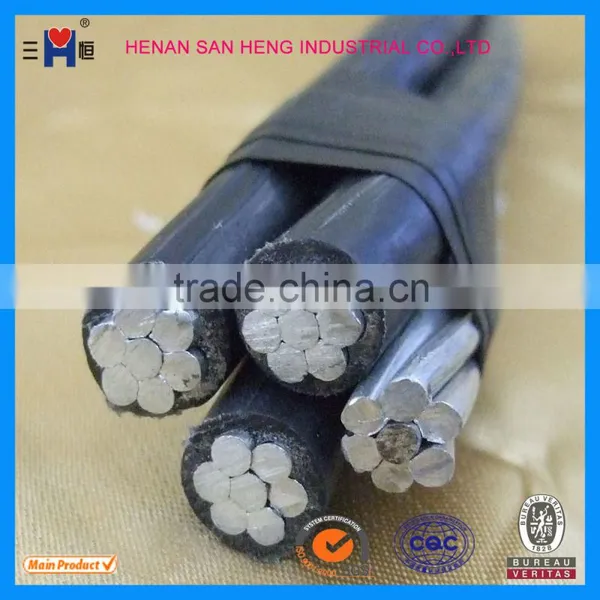

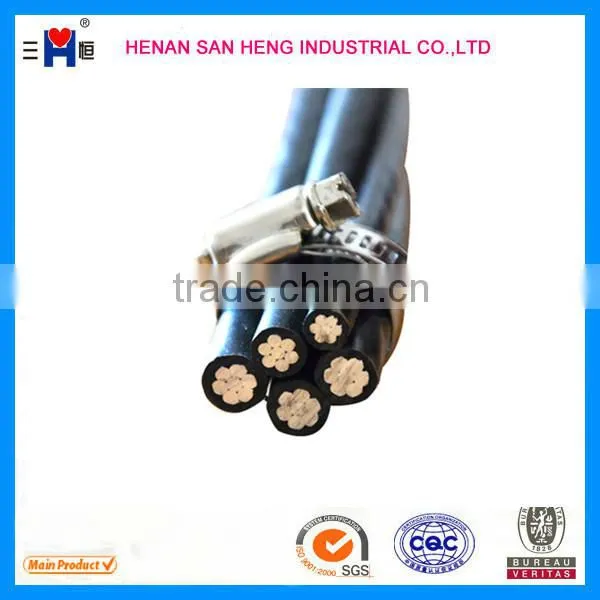

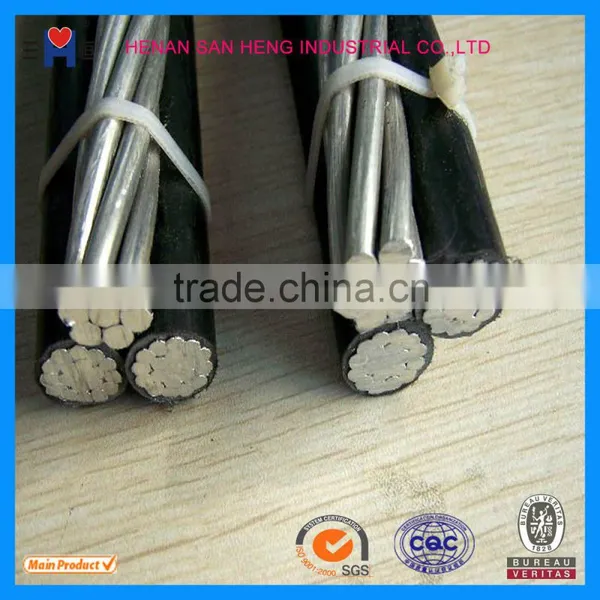

Aerial Bundle Cable covers mainly three types:

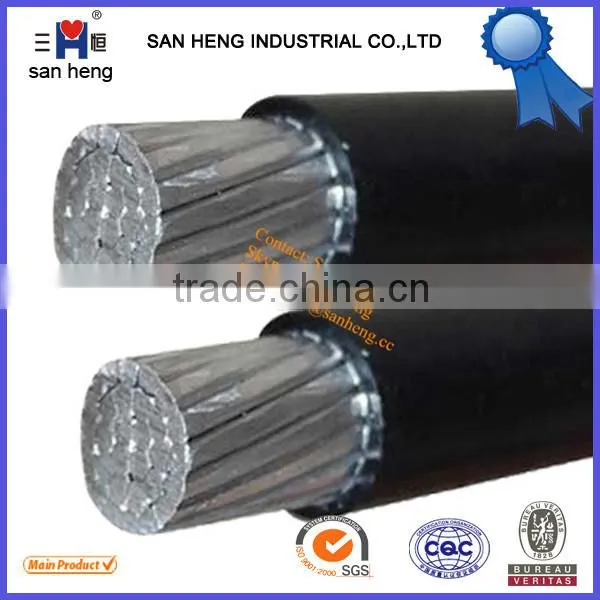

Two core(Duplex Service Drop)

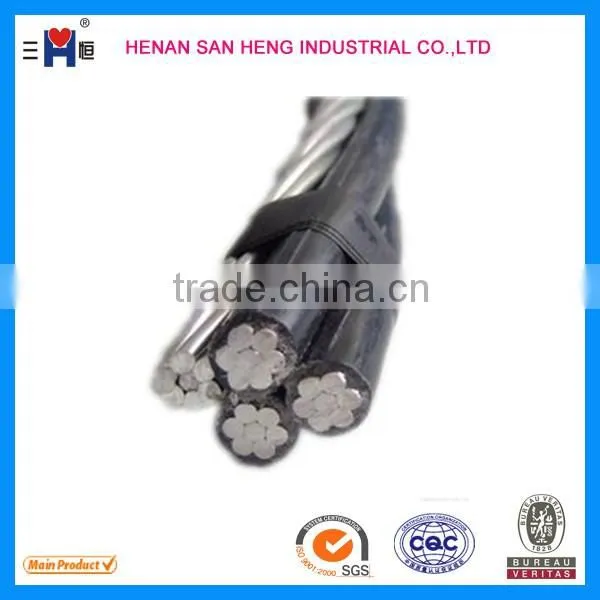

Three core(Triplex Service Drop)

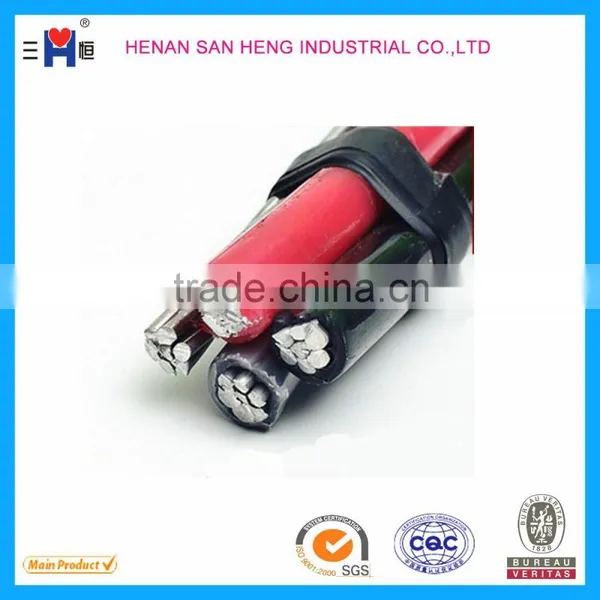

Four core(Quadruplex Service Drop)
The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor , etc. And we can still produce the cables according to the request of customers
Standards
ASTM NFC DIN AS BS ASA CSA JIS IEC
| Dimensions – nominal cross-section | Number of cores | External diameter of rope | External diameter of rope | Conductor resistance at 20 °C | Insulation thickness | Diameter with insulation | Diameter with insulation |
| min. | max. | max. | approx. | min. | max. | ||
| mm² | mm | mm | Ω/km | mm | mm | mm | |
| Phase conductor | |||||||
| 16 | 7 | 4,6 | 5,1 | 1,910 | 1,2 | 7,0 | 7,8 |
| 25 | 7 | 5,8 | 6,3 | 1,200 | 1,4 | 8,6 | 9,4 |
| 35 | 7 | 6,8 | 7,3 | 0,868 | 1,6 | 10,0 | 10,9 |
| 50 | 7 | 7,9 | 8,4 | 0,641 | 1,6 | 11,1 | 12,0 |
| 70 | 19 | 9,7 | 10,2 | 0,443 | 1,8 | 13,3 | 14,2 |
| Neutral conductor | |||||||
| 71,5 AlMg 1 | 7 | 10,2 | 10,6 | 0,470 | 1,8 | 14,6 | |
| 70 AlMgSi | 7 | 10,0 | 10,2 | 0,500 | 1,6 | 12,9 | 13,6 |
| Construction of bundle | Lay of stranding | Bundle diameter | Al weight | Bundle weight |
| N * mm² | mm | mm | kg/km | kg/km |
| 2x16 | 300 | 15,0 | 93 | 137,000 |
| 4x16 | 350 | 18,0 | 186 | 270,000 |
| 2x25 | 350 | 18,4 | 145 | 214,000 |
| 4x25 | 430 | 22,2 | 290 | 431,000 |
| 3x25 + 70 | 700 | 26,6 | 421 | 569,000 |
| 3x25 + 70 + 1x16 | 700 | 26,6 | 467 | 672,000 |
| 3x25 + 70 + 2x16 | 700 | 29,6 | 513 | 739,000 |
| 3x35 + 70 | 760 | 29,8 | 509 | 688,000 |
| 3x35 + 70 + 1x16 | 760 | 29,8 | 555 | 759,000 |
| 3x35 + 70 + 2x16 | 760 | 29,8 | 602 | 825,000 |
| 3x50 + 70 | 850 | 33,1 | 639 | 809,000 |
| 3x50 + 70 + 1x16 | 850 | 33,1 | 685 | 879,000 |
| 3x50 + 70 + 2x16 | 850 | 33,1 | 732 | 945,000 |
| 3x70 + 70 | 980 | 38,6 | 813 | 1,044 |
| 3x70 + 70 + 1x16 | 980 | 38,6 | 860 | 1,114 |
| 3x70 + 70 + 2x16 | 980 | 38,6 | 907 | 1,181 |
| 3x70 + 70 + 2x25 | 980 | 38,6 | 958 | 1,253 |
1.The company owns advanced testing equipment and professional inspectors. Each product is inspected according to the standard of national quality management system.
2.The advanced science and technology, first-rate productive equipment and superuor production line ensure the stability of the products. Word is changeable and Sanheng will always keep pace with the word.
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable and wire can be customized.
2. How long have you been in the business,
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
SGS UL CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
