ABC aluminum conductor xlpe insulation aerial bunded abc cable
Standard:
According to IEC,also can do by standard of ASTM,BS,GB,DIN and AS/NZS or other standards.
Construction:
Conductor:Aluminium
Rated Voltage is 0.6/1KV.
Bare Conductor may be made of AAC
Insulation:PVC or XLPE or PE
Inner sheath:PVC or PE
Cores:Single,Duplex.Triplex,Quadruple
section: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2 120mm2, 150mm2, 185mm2, 240mm2
Application Characters of ABC aluminum conductor xlpe insulation aerial bunded abc cable :
a.Max operating temperature :XLPE insulation 90°C,High-density PE insulation 75°C,PVC insulation 70°C.
b.Installing temperature of cable should not be below -20°C.
c.Max short-circuit temperature,Not more than5 Sec:XLPE insulation 250°C,High-density PE insulation 150°C,PVC insulation 130°C.
d.Permissible Bending radius of cable:Should be not less than 20(d+D)±5%mm. Where:D is overall diameter of cable; d is diameter of conductor.

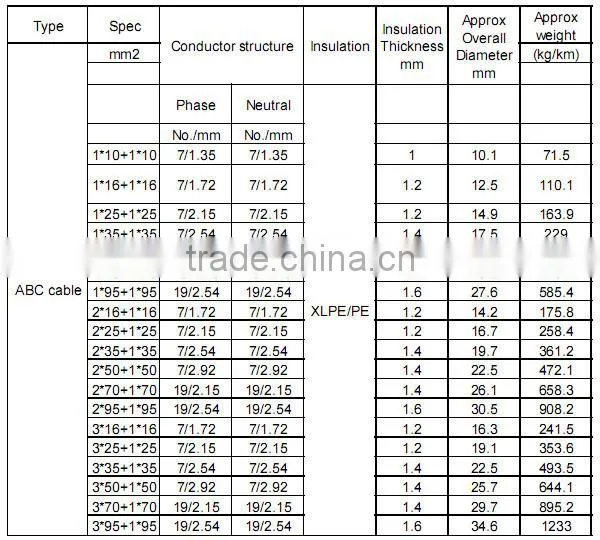

Specification sheet of ABC aluminum conductor xlpe insulation aerial bunded abc cable

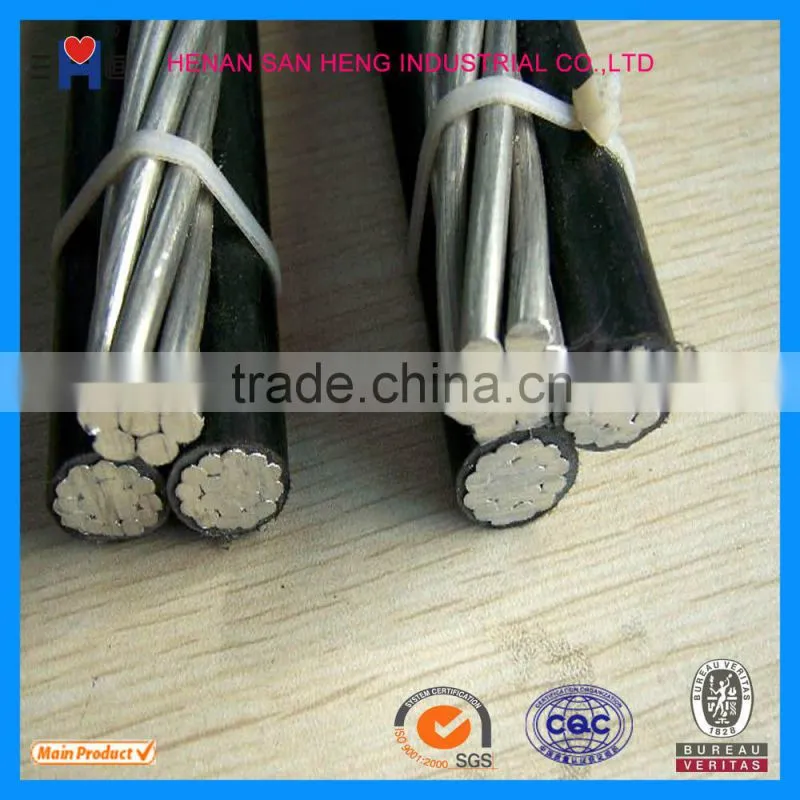

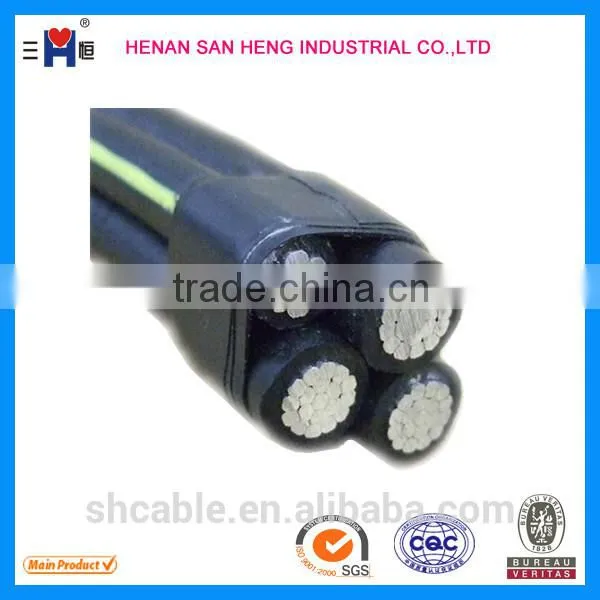

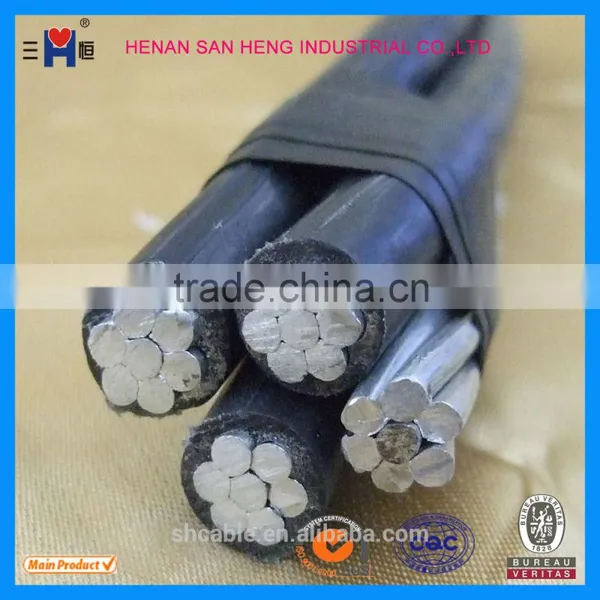

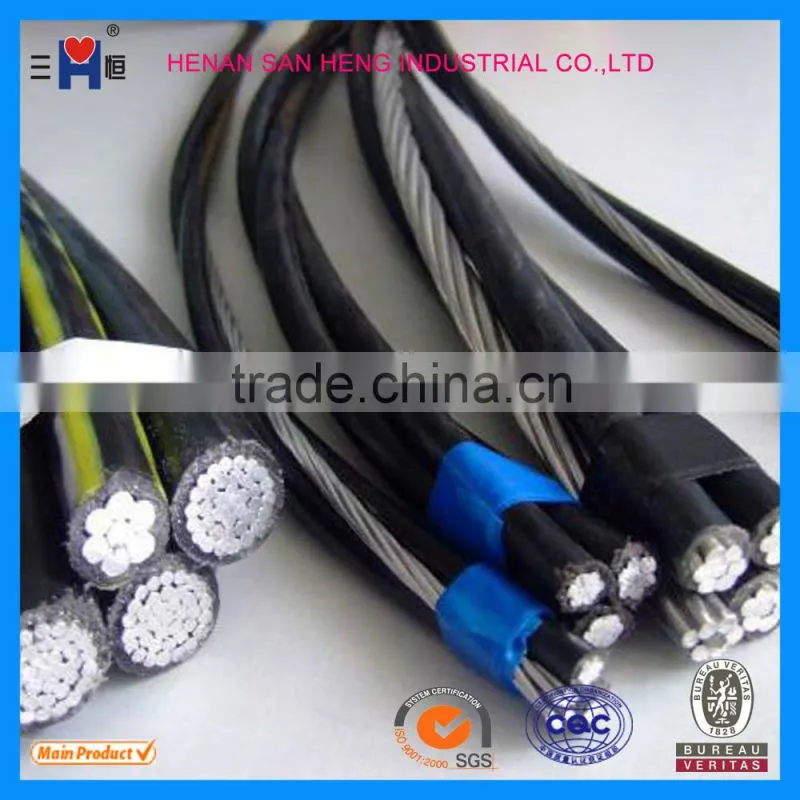

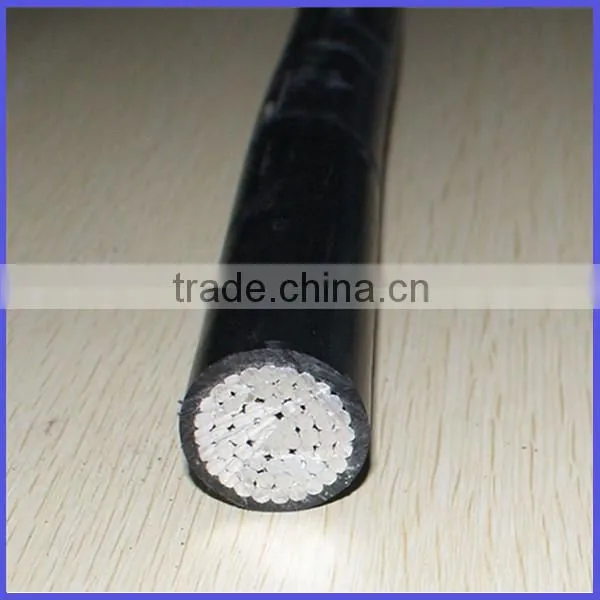

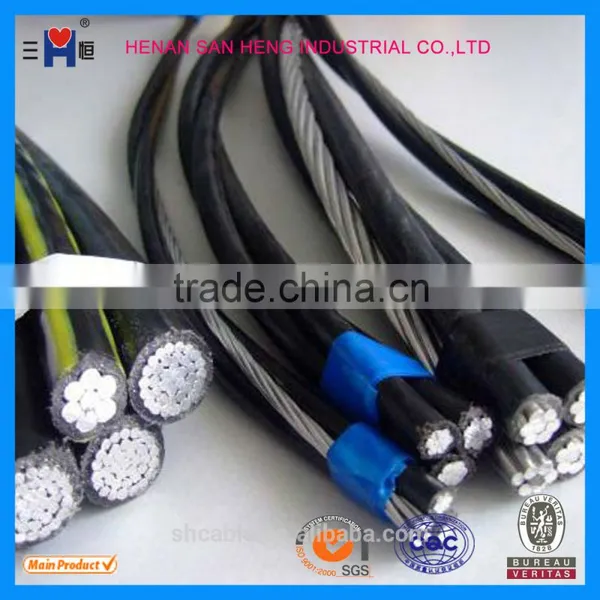

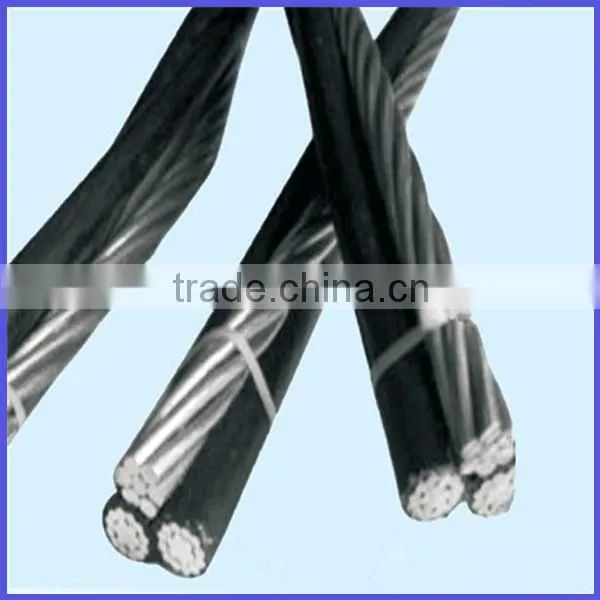

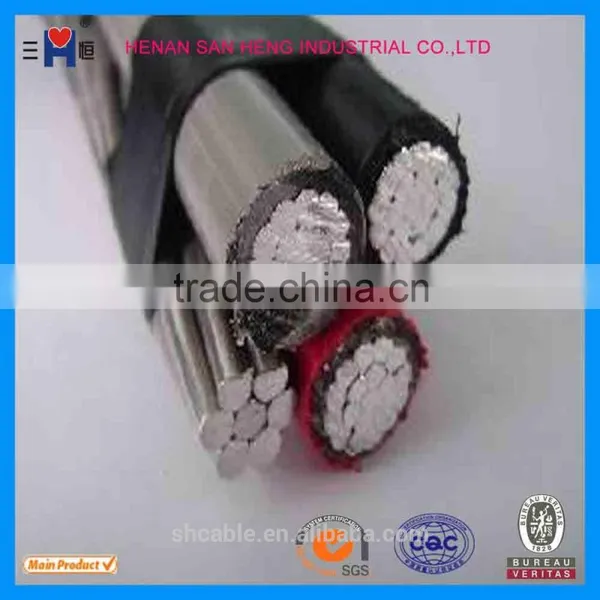

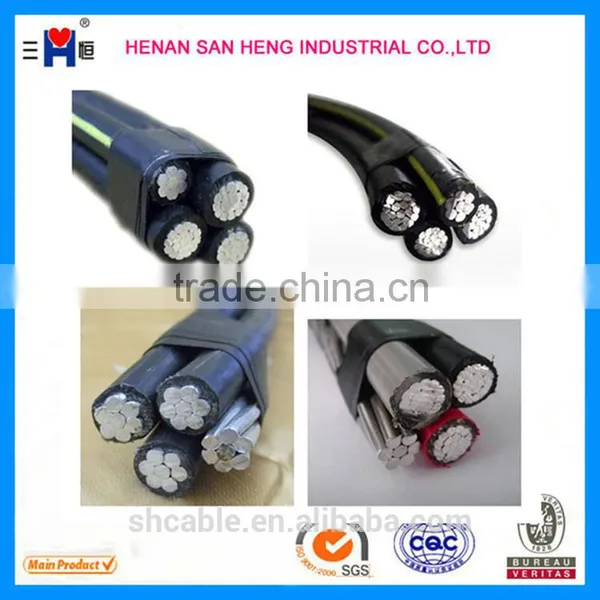

Picttures of ABC aluminum conductor xlpe insulation aerial bunded abc cable for your reference!
International standard packing of service drop overhead bunched aerial bundled ABC CABLE : pp bag, woven bag, wooden drum, steel drum, or as per esteemed customers' request.

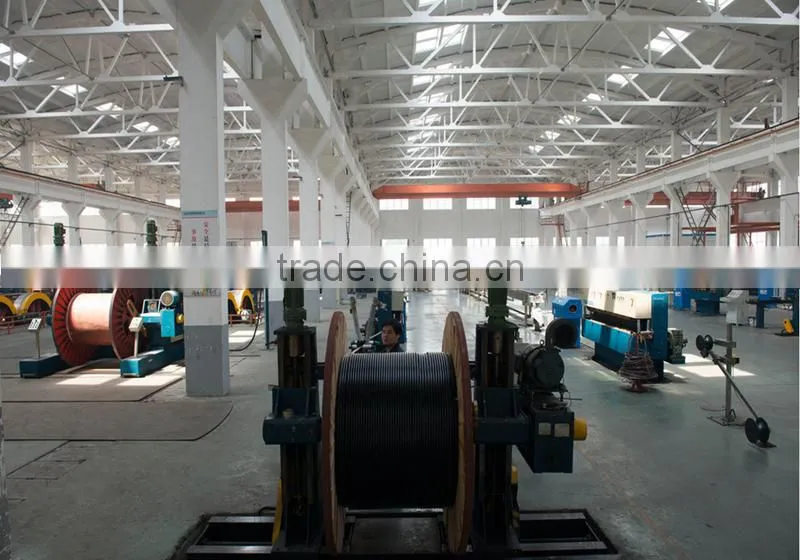

1.Established in the year 2000. Factory Size: 5,000-10,000 square meters with advanced equipments 7 production lines. 8 engineers 5 R$D elites. 80 production staff workers. 30 sales person.
2.We have more than 20 years manufacturing experience and almost 15 years experience of export.
3.Mian products: PVC cables .building cables, XLPE insulated power cables, PVC insulated power cables, aerial-bundle cables, PVC insulated wires, control cables, rubber cables, bare conductors, welding cables.
4.Main Markets: Africa, South America, Mid East, Eastern Europe, Southeast Asia.
This is cherry. If you have any problem of service drop overhead bunched aerial bundled ABC CABLE , please feel free to contact me. Let me know your needs! RIGHT NOW ! ACTION !
