Devulcanizer

Specifications

1.make waste tire rubber into vulcanized rubber;
2.Environmental protection and energy saving;
3.Safety;
4.Easy operation.

Introduction

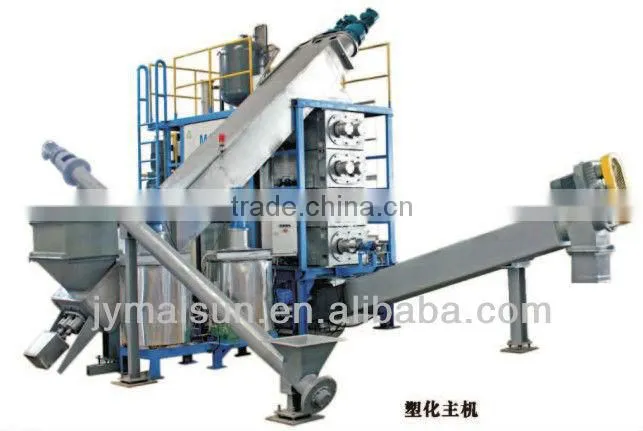

MSR Devulcanizer adds the softener to waste vulcanized rubber powder and activation, at atmospheric pressure under the condition of high temperature, makes the part of the S = C, S = S disconnected to achieve the purpose of the plasticization. Main components: the main heating system, automatic control system, cooling system and batching system,etc.



Tire Rubber Powder manufacturing Process



Characteristic



1. Environmental protection and energy saving: no waste water, waste gas, using  circulating water cooling. Plasticizing powder

consumption per ton of 100-170KW;

2. Safety: atmospheric pressure conditions of production, the operator feeding on the ground;

3. Easy operation: PLC control, man-machine interface operation;

4. Each module has a real-time measurement value of feeding, discharging, water temperature into the PLC control system;

5. Each module individually sets temperature, temperature error within ± 1 °C;

6.Using electromagnetic heating or heat conduction oil furnace in two ways;

7.Products do not stick on conveyer, no need to clean up, with production while cleaning function;

8.Process parameters of memory function, memory function formula, etc;

9.Easy installation and maintenance, safe and reliable and remote maintenance.





Technical Data



Model		MS R10		MS R15		MS R20
Production Capacity(T/24H)		7~12		10~16		14-22
Heating Method		Electromagnetic/ Heat Conducting Oil		Electromagnetic/ Heat Conducting Oil		Electromagnetic
Power(Kw)		158		192		296
Operating Temperature(°C)		200~320		200~320		200~320
Dimensions(mm)		9600X6000X5000		9600X6000X6000		10200X8500X6800
Weight(KG)		18500		24600		46500
