Help CenterRubber Devulcanization Machine-Devulcanizer-Single Screw Devulcanizer
Related Products
-
Devulcanizer-Single Screw DevulcanizerNegotiableMOQ: 1 Set -
MS R Devulcanizer R15NegotiableMOQ: 1 Set
-
Tyre Recycling Equipment-Devulcanized Rubber Powder Set MS R15NegotiableMOQ: 1 Set
-
For Devulcanized Crumb Rubber-MS R15 - Jiangyin MaisunNegotiableMOQ: 1 Set
-
Devulcanized Crumb Rubber Powder Machine-devulcanizer From Jiangyin MaisunNegotiableMOQ: 1 Set
Specifications
1.Devulcanizer2.Atmospheric pressure and high temperature
3.Heating method:electromagnetic/heat conducting oil;
4.Safety
It has been over 5 years' experience since our company started to produce rubber and plastics equipment. The product quality is brillant and the service s great.
We constantly bring new idea in our design. That makes our clients satisfied with our equipment. We offer an excellent after-sales service because of our experienced service team, they have the capability of solving practical problems during the manufacturing. We have established long term cooperation with many cleints in Thailand and Singapore.
Engineers available to service machinery overseas
Introduction

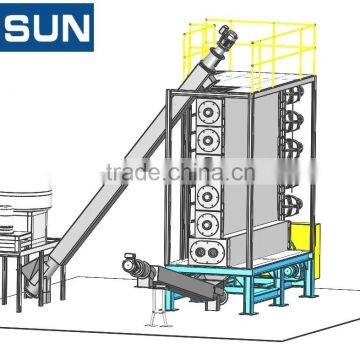

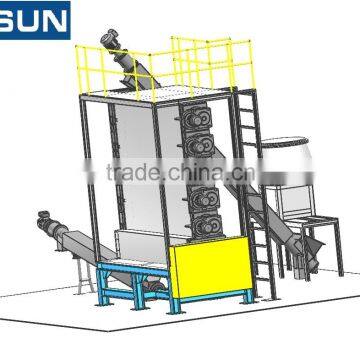

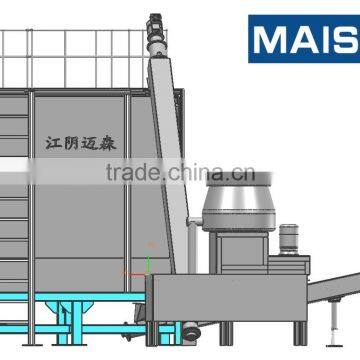

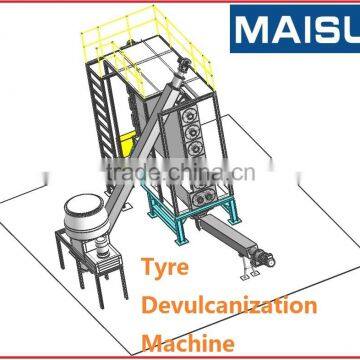

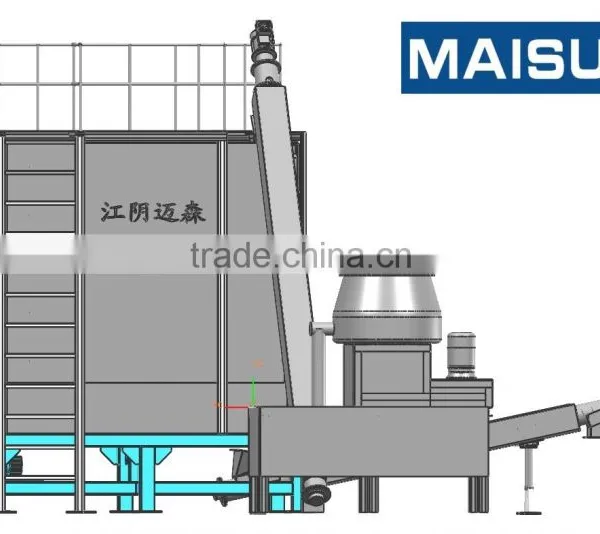

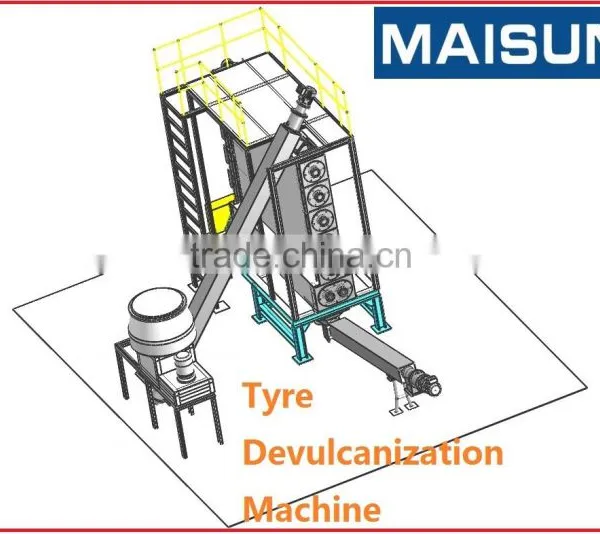

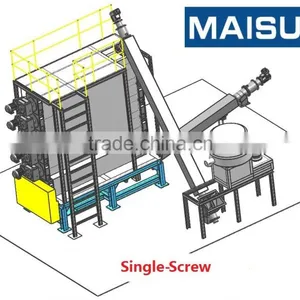

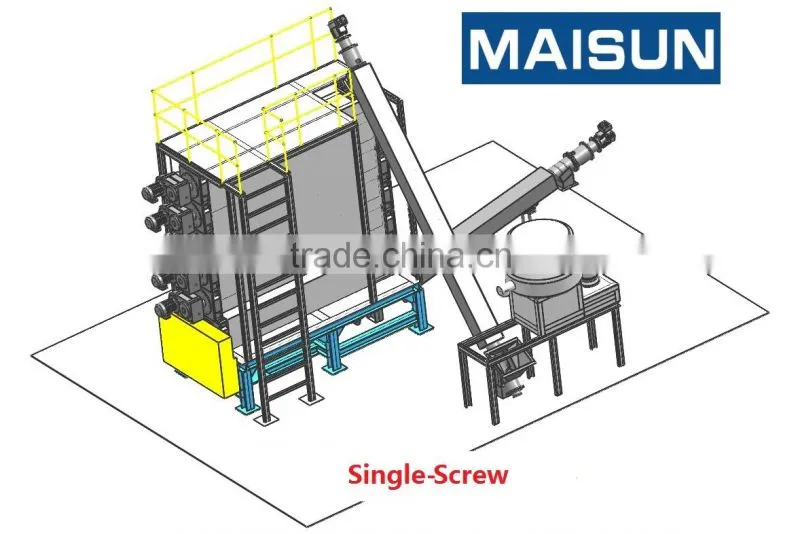

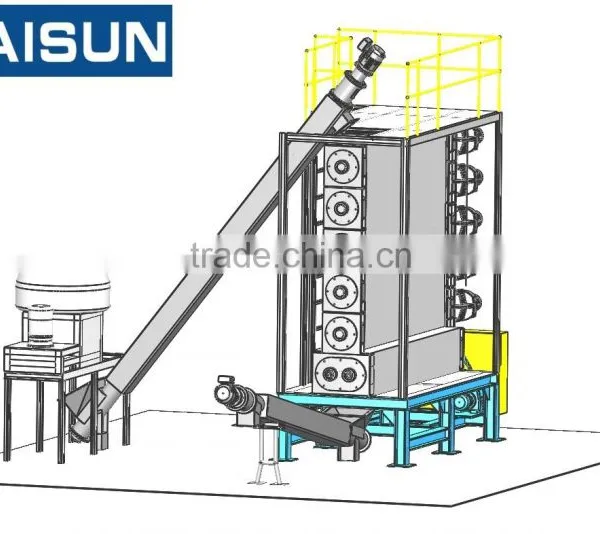

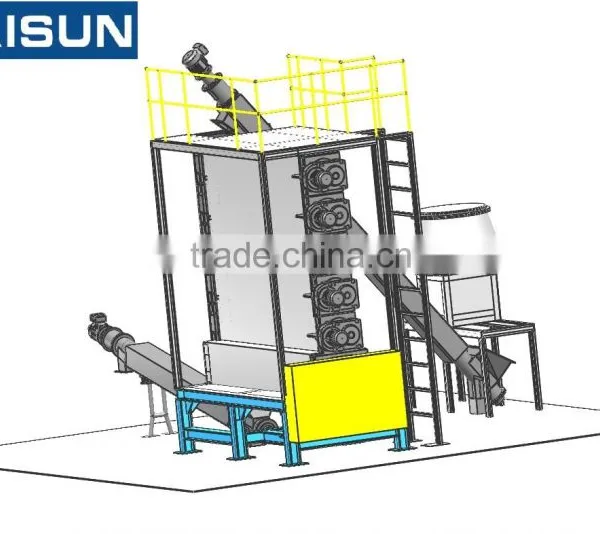

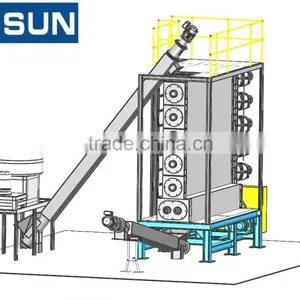

MSR Devulcanizer adds the softener to waste vulcanized rubber powder and activation, at atmospheric pressure under the condition of high temperature, makes the part of the S = C, S = S disconnected to achieve the purpose of the plasticization. Main components: the main heating system, automatic control system, cooling system and batching system,etc.
Tire Rubber Powder manufacturing Process
Characteristic
1. Environmental protection and energy saving: no waste water, waste gas, using circulating water cooling. Plasticizing powder
consumption per ton of 100-170KW;
2. Safety: atmospheric pressure conditions of production, the operator feeding on the ground;
3. Easy operation: PLC control, man-machine interface operation;
4. Each module has a real-time measurement value of feeding, discharging, water temperature into the PLC control system;
5. Each module individually sets temperature, temperature error within ± 1 °C;
6.Using electromagnetic heating;
7.Products do not stick on conveyer, no need to clean up, with production while cleaning function;
8.Process parameters of memory function, memory function formula, etc;
9.Easy installation and maintenance, safe and reliable and remote maintenance.
Technical Data
| Model | MS RS08 |
| Production Capacity(kg/h) | 300-450 |
| Heating Method | Electromagnetic |
| Install Power(KW) | 135 |
| Dimensions(mm) | 9500x4000x6500 |
| weight(kg) | 12500 |
| product range | truck cover tyre; butyl; EPDM |
