JL-108 SERIES
PVC Shoe Direct Injection Moulding Machine
Special Feature |
1.Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
2. Specialized in producing single color outsoles, slippers, sandals and short height boots. It is particularly
effective to the making of all-plastic sport shoe, and leisure shoes etc.
3. It could be equipped with air blowing system and can produce light weight, particularly the need for reinforced
cooling effect.Computerization in analysis and design, the machine is well in stability.
4. Conformed to human engineering in design, it features operational compatibility.
5. The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.
6. Number of various stations may be optionally chosen for small quantity but greater in variety,or mass production.
7. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and
promote productivity.
Specifications | ||
Machine model |
JL-108-24S |
|
Mould-clamping Unit | ||
Work station |
|
24 |
Clamping force |
TON |
80 |
Opening stroke |
MM |
210 |
Mould dimension |
MM |
600*280 |
Height of injection nozzle |
MM |
280 |
Injection Unit | ||
Injector |
SET |
1 |
Screw diameter |
MM |
65 |
Screw L/D ratio |
L/D |
20 |
Max.injection volume |
cm3 |
650-1000 |
Injection speed |
Cm/s |
10 |
Screw rotation speed |
R.P.M |
0-200 |
Electricity Consumption | ||
Heating power of injector |
KW |
7 |
Hydraulic unit motor |
KW |
18.5 |
Total electric consumption |
KW |
25.5 |
Temperature control |
Section |
4 |
Dimension and Weight | ||
Machine dimension |
(L*W*H)MM |
4600*3600*2300 |
Machine weight |
KGS |
6000 |
*Note:Above data only for reference. | ||

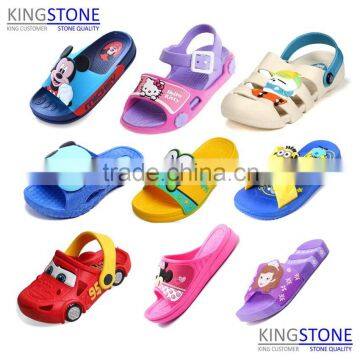

Finished Products |
Dongguan Kingstone Machinery Co., LTD. , headquarter located in Dongguan, has been researching and
developing from manufacturing footwear machines as well rubber machines for industrial application.
Kingstone is striving toward larger business scope to provide customers diversified machine designs, perfect
production quality with the best and fast service.
Dongguan Kingstone Machinery Co., LTD.,as one of the famous rotary plastic footwear injection molding machine
manufacturers in the industry, the industry first class rotary injection molding machine r&d and manufacturing base,
over the years with the product variety is complete, personalized type many, quality excellent, and is famous world
without time service in the industry, the product sells in distant markets the world nearly 30 countries and regions,
at the same time also in Turkey, Brazil, India and many other countries set up offices and agents.
