Home > Products > 10.1-42" Touch screen > Capacitive 15" touch screen overlay with EETI touch controller board
Capacitive 15" touch screen overlay with EETI touch controller board
USD $10 - $60
/ Piece
1 Piece(Min.Order)
- 1000000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
-
7" Open Type Module (OTM) Touch Screen Industrial LCD Display
-
7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
-
17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
-
19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
-
12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
| Products Status: | Stock | Screen Size: | Other, 15" | Type: | Other, capacitive |
| Interface Type: | USB | Resolution: | Other, 4096x4096 | Brand Name: | YUNLEA |
| Model Number: | YL | Place of Origin: | Guangdong, China |
Product Description
Capacitive 15" touch screen overlay with EETI touch controller board
Skype:yunlea.sales
Product Description
What's specification of 15 inch touch screen?
---The specification of 15 inch touch screen--- | |
| Specification | |
| Size | 15 inch |
| Product name | 15 inch capacitive touch screen |
| Model number | YL |
| Type | CTP |
| Struture | CTP(Glass+Glass) |
| Outline Dimension | 346.08x270mm |
| Active area | 305x229.01mm |
| Thickness of cover glass | 1.1mm |
| Touch solution | COB(Chip on the board) |
| Touch controller | EETI |
| Operating system | Win7,Win8,Win ce,Andriod,Linux |
| Interface of CTP | I2C/USB/RS232 |
| Surface Hardness | 6H |
| Transparency | 86%min |
| Touch Points | 10 points |
| Operating temp | -20 to 70 degree |
| General Business Clauses | |
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% Paypal or T/T or Western union in advanc for samples , 50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |

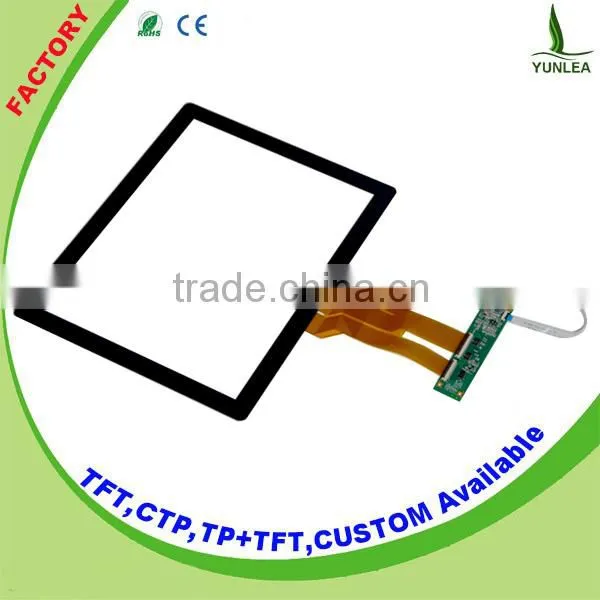

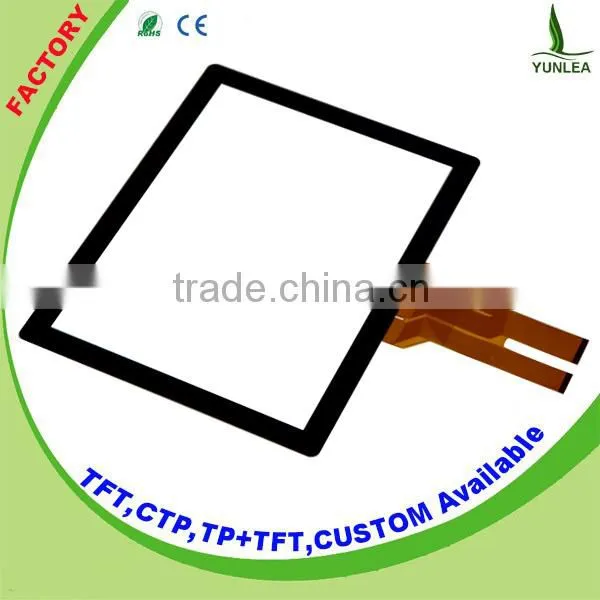

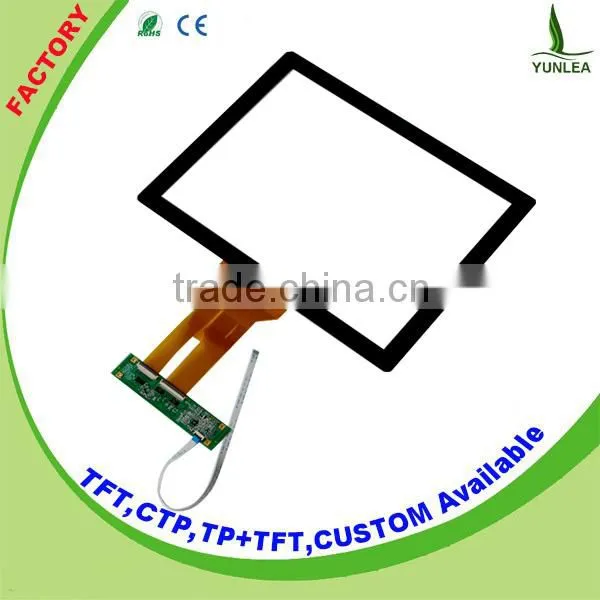

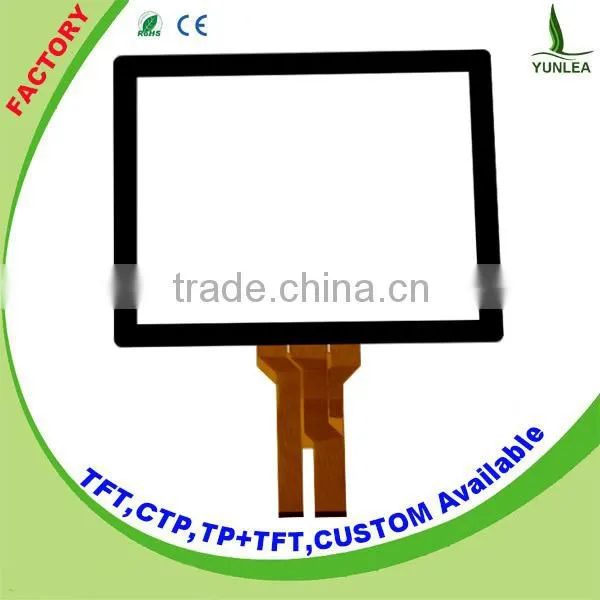

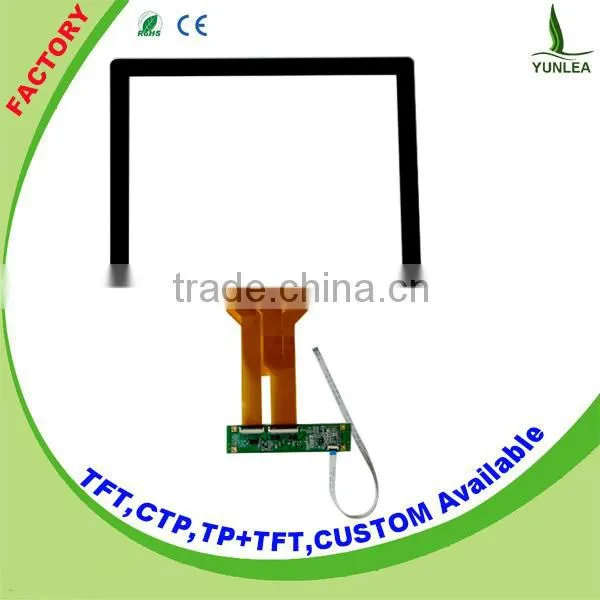

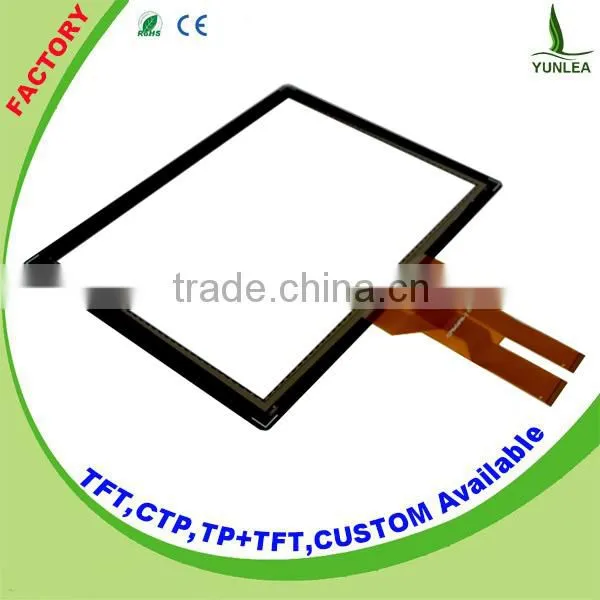

| ---The picture of 15 inch touch screen --- |
| |
| |
