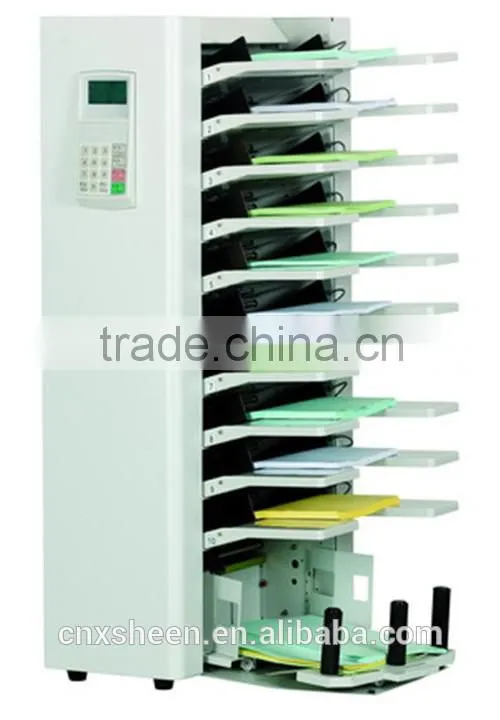

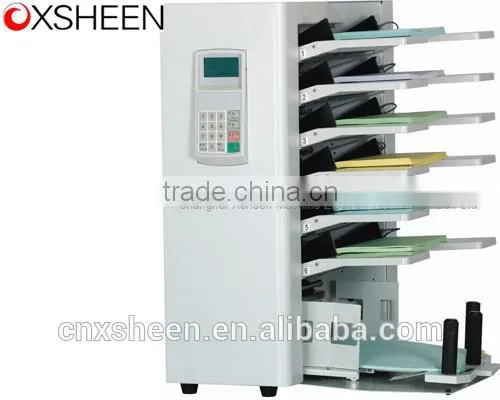

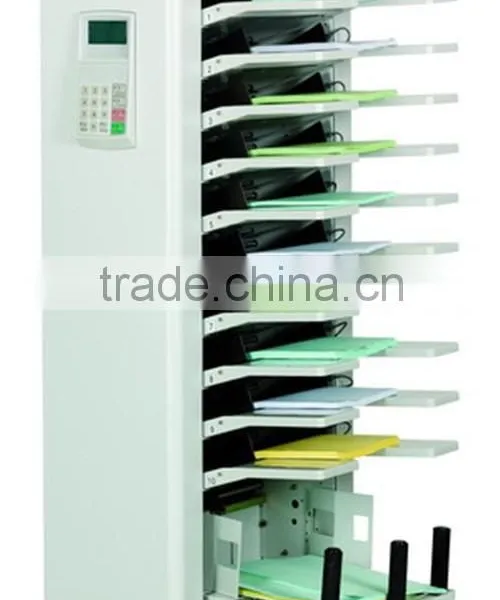

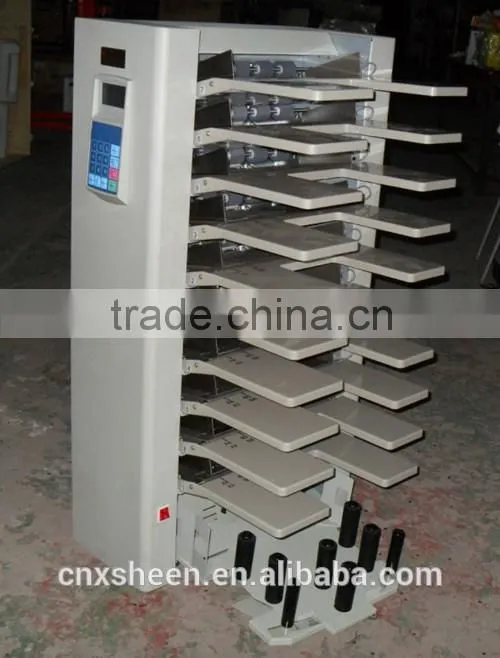

Feed Stations digital Paper collating machine / gathering machine for post press
SPECIFICATIONS:
Presetting number of the copies is available. PERFORMANCE AND FEATURE
Automatic shutdown display for error, such as double sheets feed, paper jam, out-of-paper, paper tray full etc.
Provided two stacking modes: Crisscross stacking mode, straight stacking mode
UNIQUE INTERFACE
XSHEEN digital paper collator is equipped with soft-touch liquid crystal display, easy and simple to operate
FLEXIBLE COUNT MODE
XSHEEN digital paper collator provides two count modes:
Count-down mode and count-forward mode
Count-down mode: set the desired collating number before start. The collating machine counts down. The machine automatically stops when the number turns to zero.
Count-forward mode: The collating machine counts forward unit all printed sheets are completely collated.
Model |
XH-I |
XH-II |
Station |
10 |
6 |
Speed |
2800shets/hour (A4 size paper) 2200sheets/hour (A3 size paper) |
3000shets/hour (A4 size paper) 2500sheets/hour (A3 size paper) |
Paper size |
A3-A5 |
|
Paper quality |
40-210g/m² (the first sheet and the last sheet ) 55 – 120 gsm ( the middle sheets ) |
|
Station capacity |
250sheets |
|
Stacking capacity |
600sheets |
|
Stacking device |
cross collating |
|
Error display |
Paper double-feed, paper jam, out-of paper, no paper, deliver tray Full, Paper miss-feed, back door open. |
|
Power |
AC220V 180W |
|
Net weight |
approx.73kg |
63kg |
Gross weight |
approx.93kg |
78kg |
Volume |
1270*710*970mm(XH-I) 900*710*970mm(XH-II) |
|
