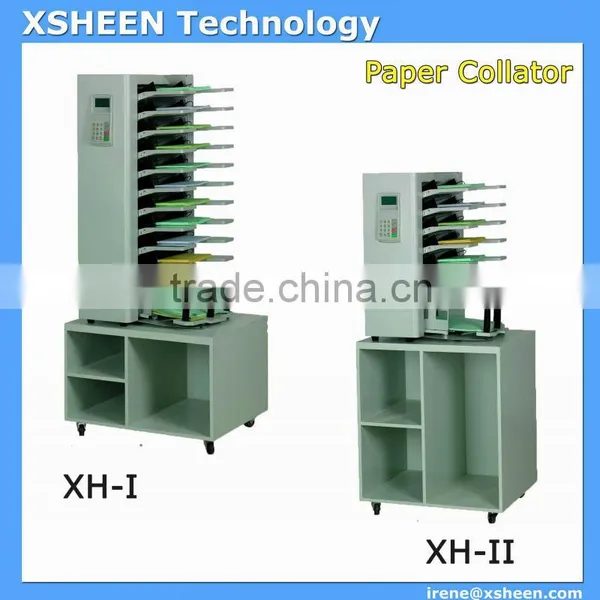

XH-I digital paper collatordigital paper collator machineXH-I 10 trays, digital paper collator
Features:
1. Paper-feed stand of fully automatic lift
2. Presetting of number of copies available
3. Automatic shutdown display for paper double-feed, Paper jam, out-of-paper, paper tray full.
4. Drawer-type paper tray, Cross-type deliver tray
5. Provides two stacking modes
6. Crisscross stacking mode, Straight stacking mode.
Unique Interface:
XSHEEN digital paper collator is equipped with soft-touch liquid crystal display, easy and simple to operate
Flexible count mode:
XSHEEN digital paper collator provides two count modes:
Count-down mode and count-forward mode
Count-down mode
Set the desired collating number before start. The collating machine counts down. The Machine automatically stops when the number turns to zero.
Count-forward mode
The collating machine counts forward until all printed sheets are completely collated.
Clear sheet collecting design:
XSHEEN digital paper collator is equipped with cross-type sheet collecting stand. After collation, the sheets are placed crosswise to reduce incompletely separated phenomenon of previous and next sheets due to sheets due to sheets sliding.
Remarks: The collators can be connected with the XSHEEN stapler
Technical data of digital paper collator:
Model |
XH-I |
XH-II |
Station |
10 |
6 |
Speed |
3000shets/hour (A4-size paper) |
2400sheets/hour (A3-size paper) |
Paper size |
A3-A5 |
|
Papwe quality |
40-210g/m² |
|
Station capacity |
250sheets |
|
Stacking capacity |
600sheets |
|
Stacking device |
cross collating |
|
Error display |
double-feed, paper jam, out-of paper, no paper, deliver tray full, Paper miss-feed, back door open. |
|
Power |
AC220V 180W |
|
Net weight |
approx.73kg |
63kg |
Gross weight |
approx.93kg |
78kg |
Volume |
1270*710*970mm(XH-I) |
900*710*970mm(XH-I I) |
Machine details:
