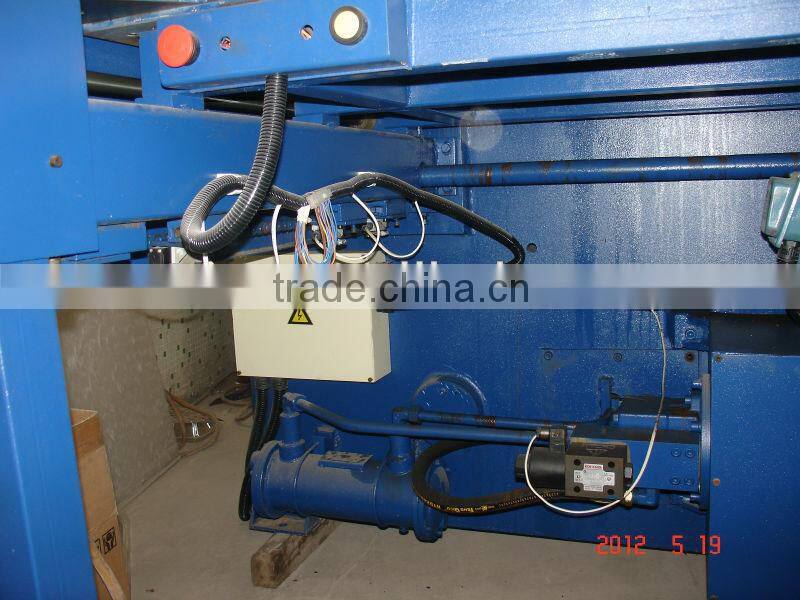

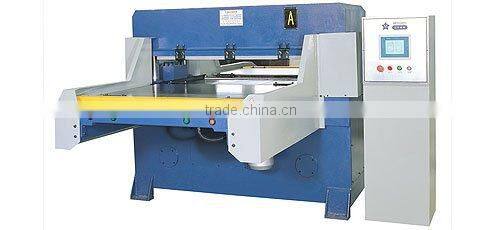

HGJ-100T cutting machine

Specifications

Used for punching and cutting operation. 2 working position

Features :

1. This machine with double hydro-cylinders, adopted the principle of structure of automatic balanced four-column rod, ensuring the same multi-layer cutting and automatic cutting of slow-speed system .
2. Adopted double position structure for cutting different products different heights, with variable frequency automatic feed unit, the working efficiency is three times more than the common cutting machines.
3. All action be controlled by PLC.Touch screen easy operation
4. The central lubricating system ensures its precision and duality.

Technical Parameter:



Model No.	HGJ-100T
Cutting Force	100Tons
Cutting Area (mm)	810×1220
Motor	7.5Kw
Punching Stroke	70-240mm
Net Weight	5500 Kg
Dimension(mm)	1960×3241×1675
Speed	5-12times/min
Power Supply	380V 50Hz 3 Phase 4 line
Motor	CHINA
Oil Pump	Japan  Yuken
Electromagnetic Valve	Japan Yuken
Seal Components	Japan Valqua
Main Electrical	Japan Fuji
PLC	Korea LG
Inverter	Korea LG
Encoder	Korea Autonics
Man-machine interface	Japan Fuji
