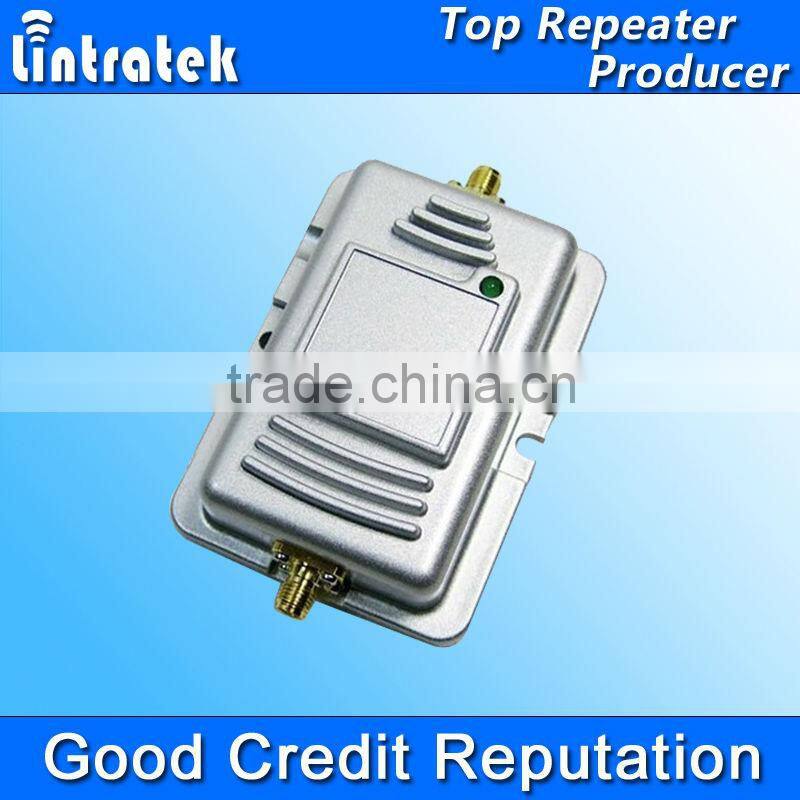

Help CenterFull Set Low Cost Simple Use 33dbm Wifi Booster 2.4-2.48Ghz for Public Area Supports IEEE802.11b/g
Related Products
-
For Long Distance Coverage High Power 5W Wifi Booster Signal AmplifierUS$ 1 - 100MOQ: 5 Pieces -
Wifi Amplifier 4 Watts,wifi Amplifier 8 Watts,wifi Amplifier RPSMANegotiableMOQ: 1 Piece
-
RF600 Pro Wifi Router Repeater Network Router Range Expander Wifi BoosterNegotiableMOQ: 5 Pieces
-
Wholesale Price Lintratek Wifi Signal Booster Repeater Amplifier Mini SizeNegotiableMOQ: 5 Pieces
-
Very Easy Installation Wifi Repeater, Home Poor Wifi Signal SolutionUS$ 1 - 100MOQ: 5 Pieces
Specifications
wifi amplifier with CE,ISO,ROHS1. Cover 200-1000sqm
2. 2w wifi repeater
3. high quality,2 years warranty.
Full set Low cost simple use 33dbm wifi booster 2.4-2.48Ghz for public area Supports IEEE802.11b/g
Why do you need to buy repeater/booster?
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.
Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
- · Parking lots, tunnels
- · Big stores, office buildings
- · Cars, boats etc.
- · House in remote areas
How can repeater bring your mobile phone better signal?
•The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone repeater through the connection cable (coax).
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off
A regular cell phone repeater consists of: (full kit)
- · 1 - Outdoor antenna like YAGI antenna or panel antenna
- · 2 - Indoor Omni ceiling antenna
- · 3 – Power adapter
- · 5 - User manual
- · 6 - Cell phone repeater
- · 7. 10 meters outdoor cable and 1 meter indoor cable
Product specification:
| Model No | KW35-WIFI | ||
| Frequency Range | 2400-2483.5Mhz | ||
| Gain | 15±1 dB | ||
| Output power | 33 dBm | ||
| Operating mode | TDD | ||
| Singal standard | IEEE 802.11b/g/n | ||
| Uplink | ≤ -36 dBm | ||
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | ≤ -36 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤2 | ||
| MTBF | >50000 hours | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Size(D*W*H ) | 78* 56 * 29(mm) | ||
| weight | 0.5Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
Mobile repeater packing photo:
Trade Info:
MOQ:5pcs, sample order is welcome
Trade terms: EXW, FOB, CIF
Payment terms: T/T, L/C, western union, paypal, escrow etc.
Payment condition: 30% deposit to confirm production, balance clear before delivery.
Delivery time: 2-5 working days for sample order, 10-30 working days for bulk order
Packing: Neutral carton
Shipping: by sea, by air and by express delivery
Trading process:
After- Sales Service
We have 24 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Installation Guide
Step 1:Connect Antenna to the Wi-Fi Booster.
CAUTION: The Booster antenna interface canonly connect antenna, Don’t connectto any other wireless products in any case, otherwise it will result in equipment malfunction or damage.
Step 2:Connect Wireless AP/Router or Wireless Network Card to the Wi-Fi Booster.
Tips: Users can also use other shielded cables to connect, but the cable length should be as short as possible, preferably not exceeding 3m.
Step 3:Power up the Wi-Fi Booster.
At first, the color of the LED is green. When the data is being transmitted, the light will turn red.The more dense data transmission, the faster color change of the LED.
Step 4:Adjust the Antenna position and angle,make the Wi-Fi Booster receive the best signal
Tips: You can use third-party software such as Network Stumbler or WirelessMon to detect the signal of Wireless AP/Router / Wireless Network Card, and adjust the antenna angle to achieve the strongest signal.
Attentions:
1.Keep at least 1m distance between Wi-FiBooster antenna and any other 2.4G wireless products,Otherwise may result in equipment malfunction or damage.
2.This type of Wi-Fi Booster is not waterproof, please do not put it in the humid environment.
3.Do not use it where the place surrounded by a large number of metals.which will make the electromagnetic signal blocked.
4.If the user install antenna in the high location, you need to take protection measures for lightning.
5.After the Wi-Fi Booster is turned on, can not remove the Antenna, otherwise may damage the Wi-Fi Booster.
