Lintratek triple band 900+2100+2600 signal amplifier,2g 3g 4g LTE mobile signal booster

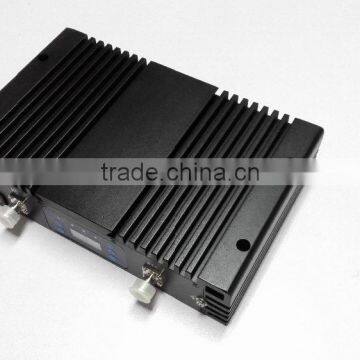

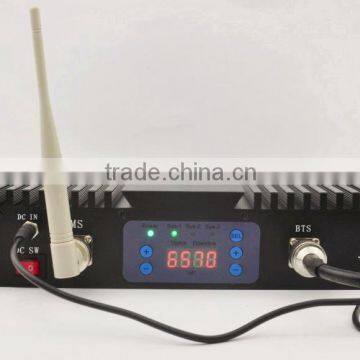

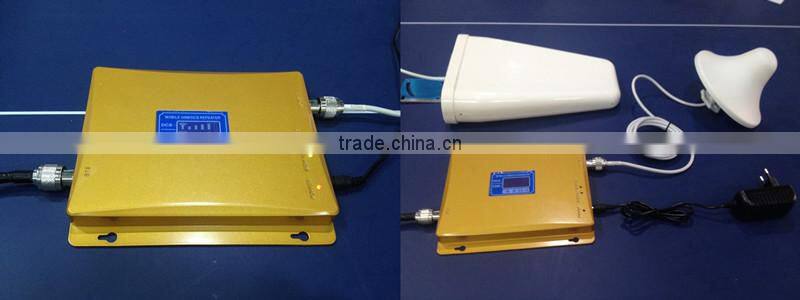

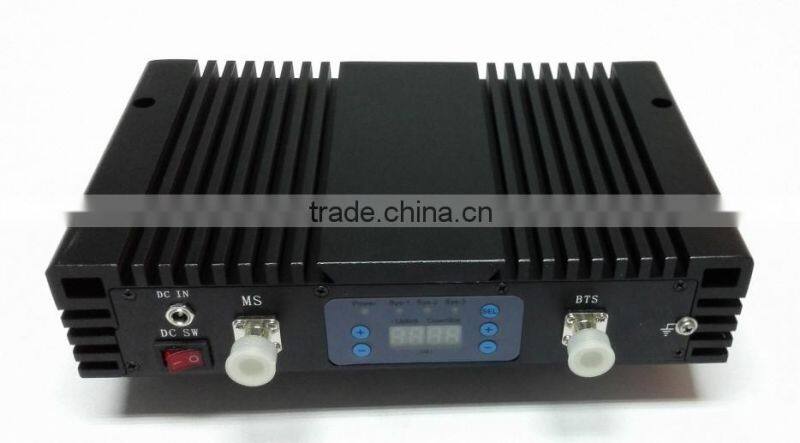

100% real shots:
Specification
Model No |
KW23F-GWL signal amplifier |
||
Parameter data |
Uplink |
Downlink |
|
Frequency Range |
UL: 890-915/ |
DL: 935-960/2110-2170/2620-2690 MHz |
|
Output Power |
15 ±2dBm |
20 ±2dBm |
|
Gain |
60 dB |
65 dB |
|
Bandwidth |
Wide Band |
||
Automatic Gain Control |
>20dB |
||
Ripple in Band |
≤5dB |
||
Intermodulation Products |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
Spurious Emission |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
Noise Figure @ max. gain |
≤ 6 dB |
||
VSWR |
≤3 |
||
MTBF |
>50000 hours |
||
Power Supply |
AC:90~265V, 50/ 60Hz;DC:5V 3A |
||
Power Consumption |
< 20W |
||
Impedance |
50 ohm |
||
Mechanical Specification | |||
RF Connector |
N-Female |
||
Cooling |
Heatsink Convection cooling |
||
Dimensions (D x W xH ) |
176*100*44mm |
||
Weight |
5Kg |
||
Installation Type |
Wall Installation |
||
Environment Conditions |
IP40 |
||
Humidity |
< 90% |
||
Operating Temperature |
-10°C ~ 55°C |
||

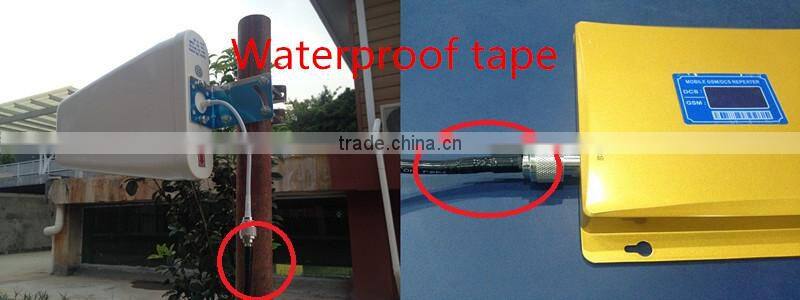

Installation:
