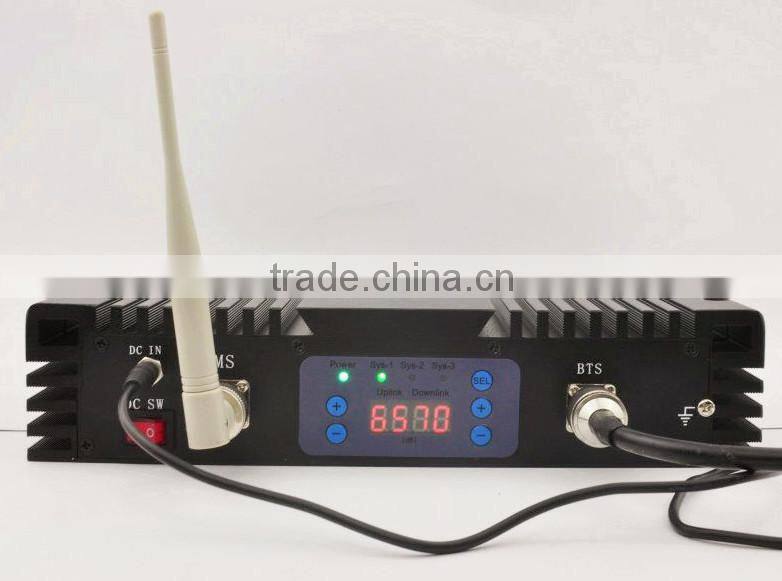

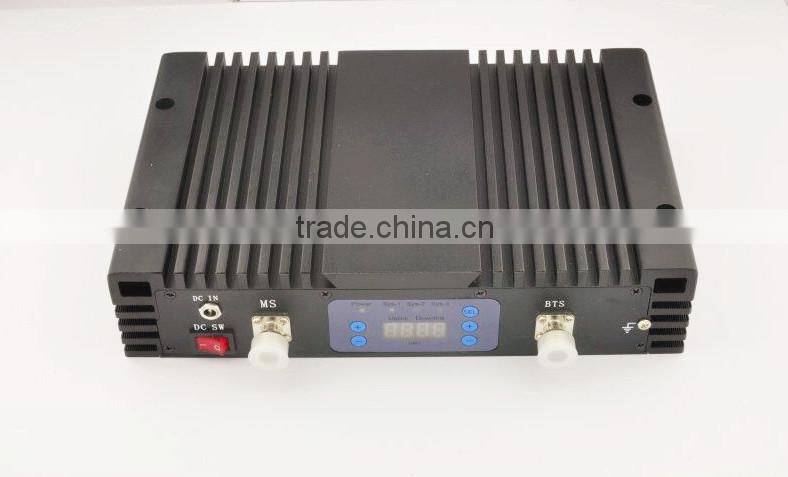

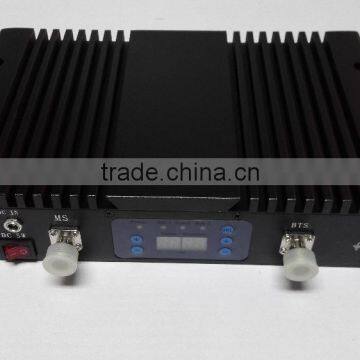

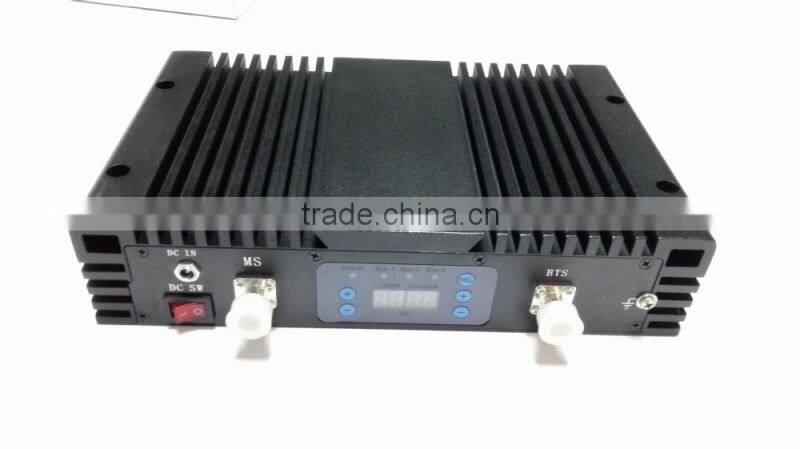

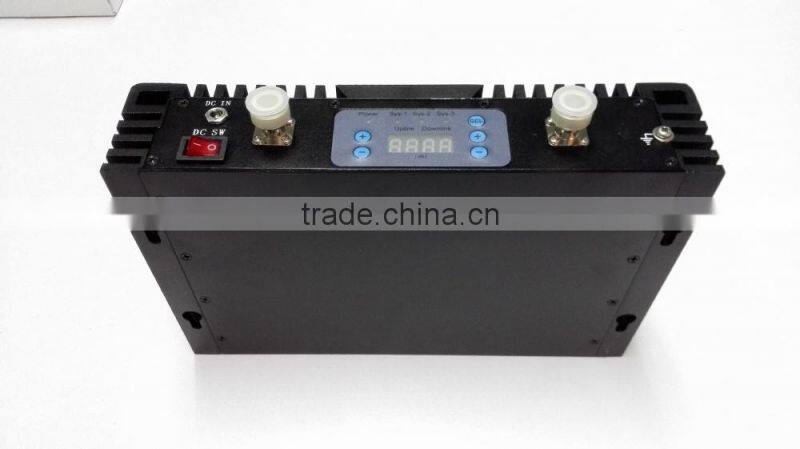

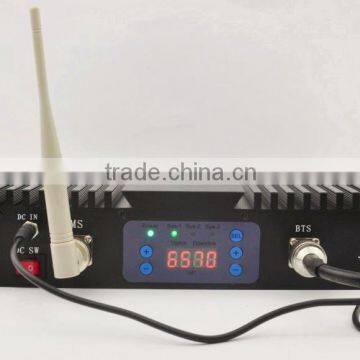

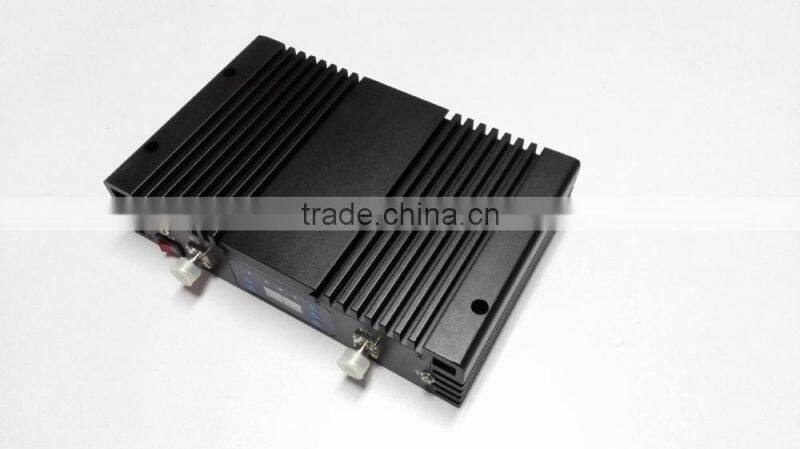

GSM/DCS/WCDMA Wide Triple Band Signal Repeater

Name: GSM/DCS/WCDMA Wide Triple Band Signal Repeater
Brand: Lintratek repeater
SKU: 109536045
Availability: InStock

US$ 1 - 366 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Lintratek repeater

Model Number:

KW23F-GDW repeater

Foshan Lintratek Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

GUANGDONG

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Lintratek repeater

Model Number KW23F-GDW repeater

Product Description

Why are you need our signal booster repeater?

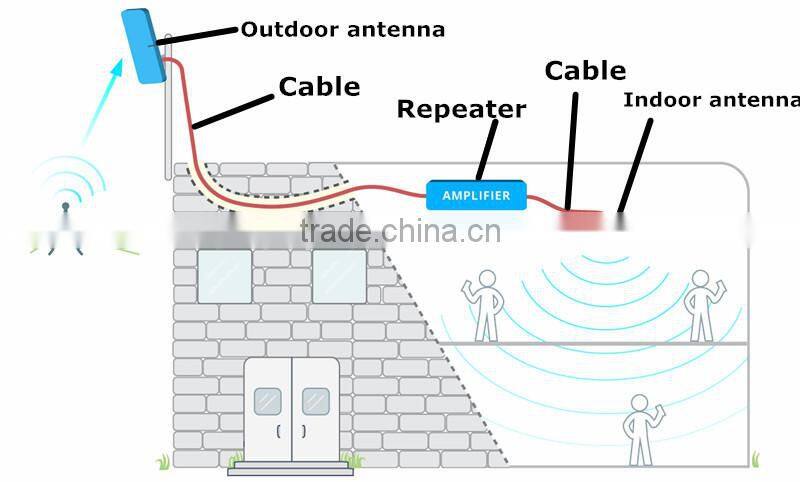

How does our signal booster repeater works?

Our products:

A regular cell phone repeater consists of: (full kit)

— Outdoor antenna , log periodic antenna ,wall mounted antenna, yagi antenna .

— Indoor Omni ceiling antenna , panel antenna .

— Power adapter .

— User manual .

— Cell phone repeater .

— 10 meters outdoor cable .

Specification should care about :

Model No		KW20D-GDW
Parameter data		Uplink	Downlink
Frequency Range		UL:890-915/1710-1785/1920-1980mhz	DL:935-960/1805-1880/2110-2170mhz
Output Power		20 ±2dBm	25 ±2dBm
Gain		65 dB	65 dB
Bandwidth		Wide Band
Automatic Gain Control		>20dB
Ripple in Band		≤5dB
Intermodulation Products	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Spurious Emission	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Noise Figure @ max. gain		≤ 6 dB
VSWR		≤3
MTBF		>50000 hours
Power Supply		AC:90~265V, 50/ 60Hz;DC:12V 3A
Power Consumption		< 20W
Impedance		50 ohm
Mechanical Specification
RF Connector		N-Female
Cooling		Heatsink Convection cooling
Dimensions (D x W xH )		17628725mm
Weight		2.2Kg
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		< 90%
Operating Temperature		-10°C ~ 55°C
