Dual Band Gsm Dcs Booster ,selective Band Mobile Signal Repeater
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Lintratek
Model Number:
KS20E-GD
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lintratek Brand 20dbm Gsm Booster Band Selective Mobile Signal AmplifierNegotiableMOQ: 2 Pieces -
Lintratek Selective Band Gsm1800 Repeater Cellphone Signal Repeater Gsm Dcs Signal BoosterNegotiableMOQ: 2 Pieces
-
Selective Band 900/1800 Repeater Mobile Signal Repeater Gsm Dcs Signal BoosterNegotiableMOQ: 2 Pieces
-
Lintratek Brand WCDMA 2100 10dbm Band Selective Signal RepeaterUS$ 1 - 200MOQ: 5 Pieces
-
3G WCDMA UMTS 2100M Repeater Indoor Wireless Mobile Signal Amplifier 65~75dBmNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Lintratek
Model Number
KS20E-GD
Specifications
network GSM signal repeater1.Gain:70dBi, Power:20dBm
verage 300~600sqm without block
3.high quality,best price
Product Description

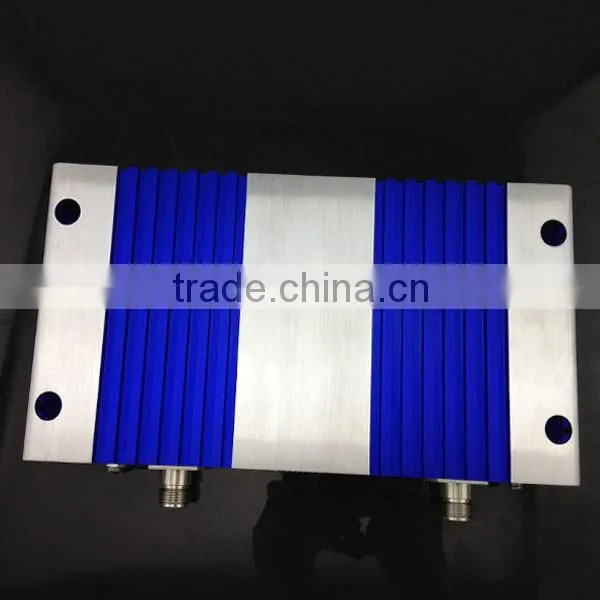

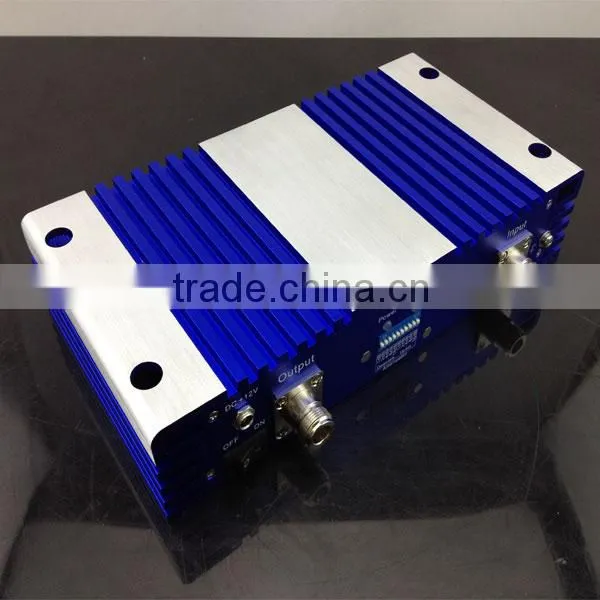

Dual band gsm dcs booster ,selective band mobile signal repeater
1.Built-in AGC,MGC function
2.Low power consumption
3.Elegant and compact design
Why do you need to buy repeater/booster:
Specification should care about:
| Model No | KS20E-GD | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | 890-915MHz/1710-1785MHz | 935-960MHz/1805-1880MHz | |
| Output Power (ALC) | 15±1dBm | 20 ±1dBm | |
| Gain | 65±2 | 70±2dB | |
| Bandwidth | Wide Band | ||
| ALC | ≤ 2 | ||
| Ripple in Band | ≤5dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -20 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 7 dB | ||
| VSWR | ≤2 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC110V~220V DC+9V/3A | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 250*165*53 (mm) | ||
| Weight | 2.5KG | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10°C ~ 55°C | ||
