Gsm Band Selective System Booster, Mobile Single Band Signal Selective 900 Repeater

Gsm Band Selective System Booster, Mobile Single Band Signal Selective 900 Repeater photo-1
Gsm Band Selective System Booster, Mobile Single Band Signal Selective 900 Repeater photo-2

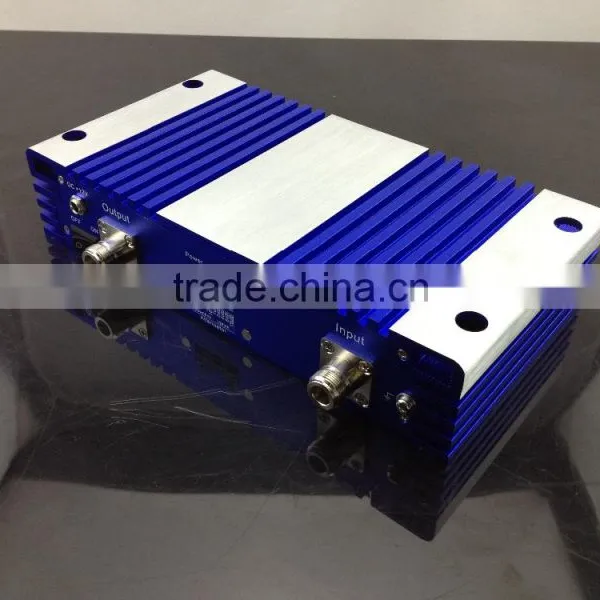

Gsm Band Selective System Booster, Mobile Single Band Signal Selective 900 Repeater photo-3

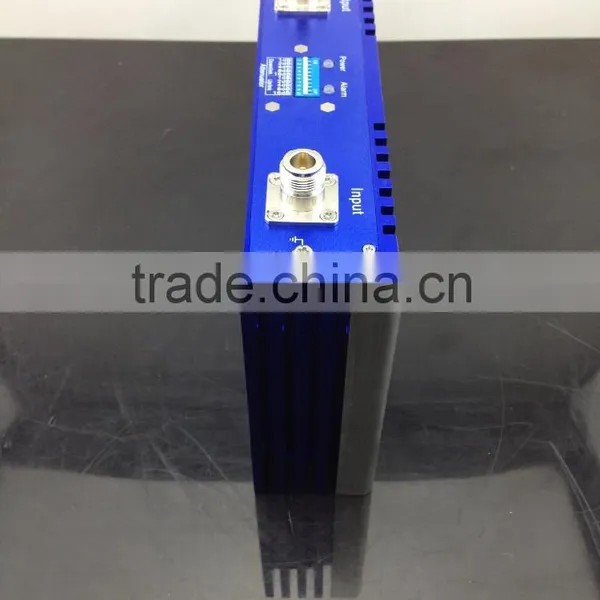

Gsm Band Selective System Booster, Mobile Single Band Signal Selective 900 Repeater photo-4

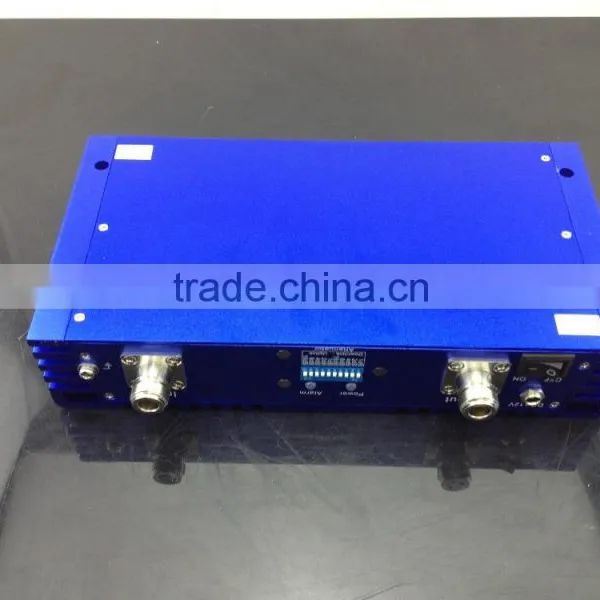

Gsm Band Selective System Booster, Mobile Single Band Signal Selective 900 Repeater photo-5
US$ 1 - 280 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LINTRATEK repeater
Model Number:
KS20E-GSM single band selective booster
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN GUANGDONG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name LINTRATEK repeater
Model Number KS20E-GSM single band selective booster

Specification:

  • 900mhz selective signal booster
  • Provide quick coverage solution for small signal weak & block zones.
  • Reduce drop/off calls.

gsm band selective system booster, mobile single band signal selective 900 repeater

Product Description

                             LINTRATEK



 WHY CHOOSE LINTRATEK?



         ·   Excellent Quality

         ·    Exquisite appearance

      ·    High Technology

             ·    Considerate service

Lintratek come, to save you from the bad signal!!!



 Specification for Signal Repeater

Specification
From: Vita Wong                         Tel/Whatsapp: +8613229223812
   Model No KS20E-GSM
Parameter data Uplink Downlink
Frequency Range 890-915MHz 935-960MHz
Output Power (ALC) 17±1dBm 20 ±1dBm
Gain 65±2 70±2dB
Bandwidth Wide Band

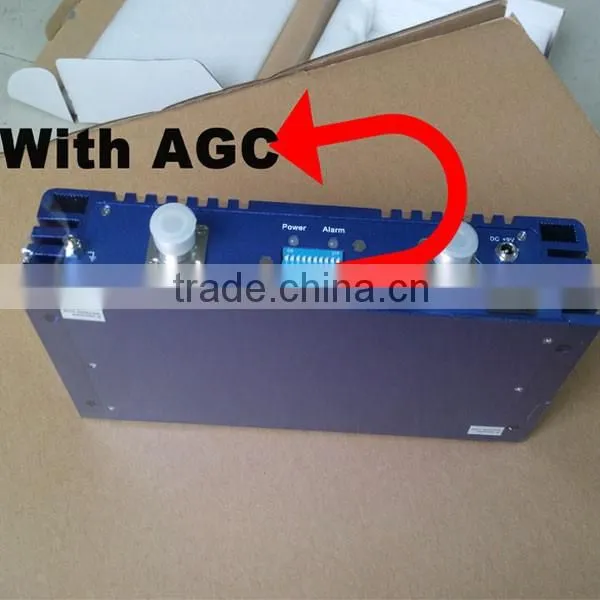

ALC ≤ 2
Ripple in Band ≤5dB
Intermodulation Products 9KHz~1GHz  -36 dBm
1GHz~12.75GHz  -20 dBm
Spurious Emission 9KHz~1GHz  -36 dBm
1GHz~12.75GHz  -30 dBm
Noise Figure @ max. gain  7 dB
VSWR ≤2
MTBF >50000 hours
Power Supply AC110V~220V   DC+9V/3A
Impedance 50 ohm
Mechanical Specification

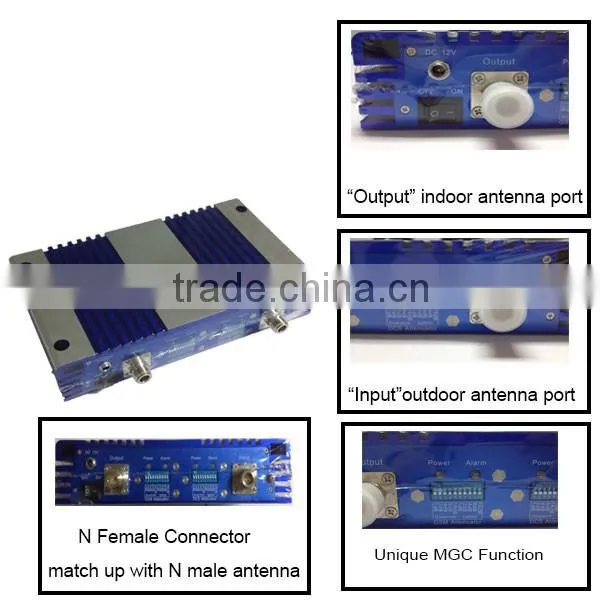

RF Connector N-Female
Cooling Heatsink Convection cooling
Dimensions (D x W xH ) 250*165*53(mm)
Weight 2.5KG
Installation Type Wall Installation
Environment Conditions IP40
Humidity < 90%
Operating Temperature -10°C ~ 55°C

  gsm band selective system booster, mobile single band signal selective 900 repeater

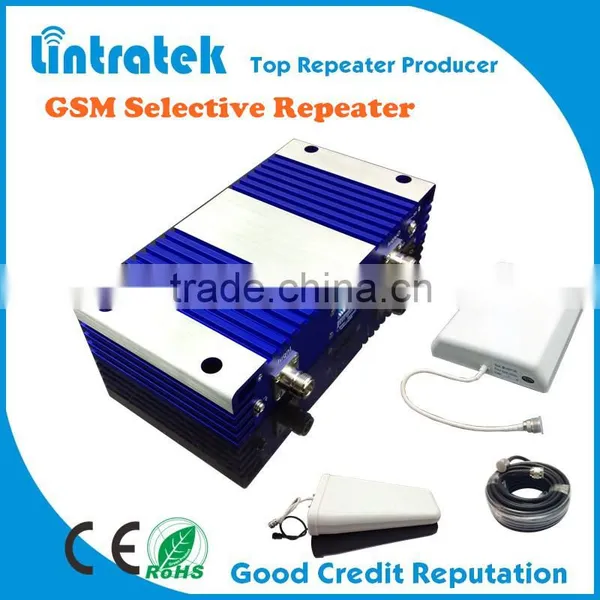

  Signal Booster Full Sets

  • · 1 - Outdoor antenna like YAGI antenna or panel antenna
  • · 2 - Indoor Omni ceiling antenna
  • · 3 – Power adapter
  • · 5 - User manual
  • · 6 - Cell phone repeater
  • · 7 - 10 meters outdoor cable and 2 meter indoor cable

 Product Show

gsm band selective system booster, mobile single band signal selective 900 repeater



gsm band selective system booster, mobile single band signal selective 900 repeater



gsm band selective system booster, mobile single band signal selective 900 repeater



How should you install repeater (very easy and simple):

Step 1: Use your mobile photo to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).



Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.



Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.



step 4: Mount your indoor antenna with signal repeater





step5:  Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.







Note: Connect outdoor ANT (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.

Indoor and outdoor antenna must be separated by wall.

gsm band selective system booster, mobile single band signal selective 900 repeater

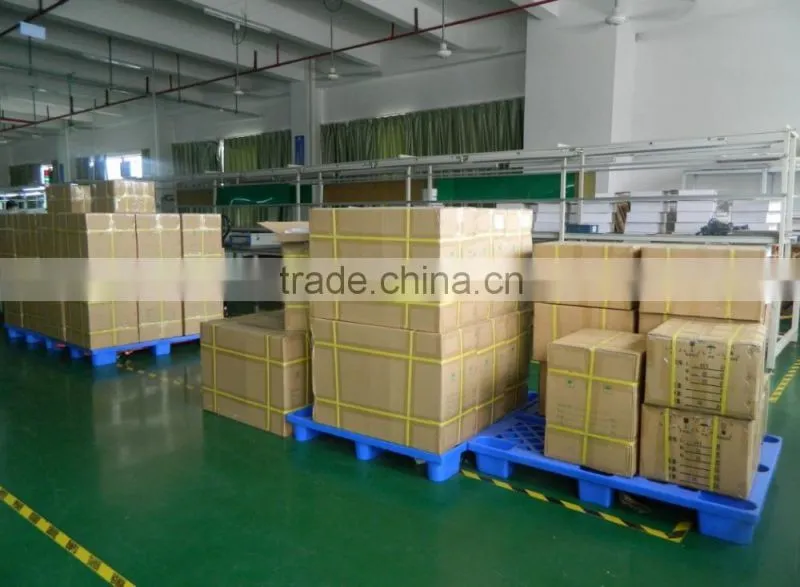

Packaging & Shipping





Our Services

  gsm band selective system booster, mobile single band signal selective 900 repeater

Company Information

 gsm band selective system booster, mobile single band signal selective 900 repeatergsm band selective system booster, mobile single band signal selective 900 repeater



  gsm band selective system booster, mobile single band signal selective 900 repeater
  gsm band selective system booster, mobile single band signal selective 900 repeater





FAQ







After- Sales Service



We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.





Signal problem & installation technique supporting



1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.



2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.



3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.



4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
