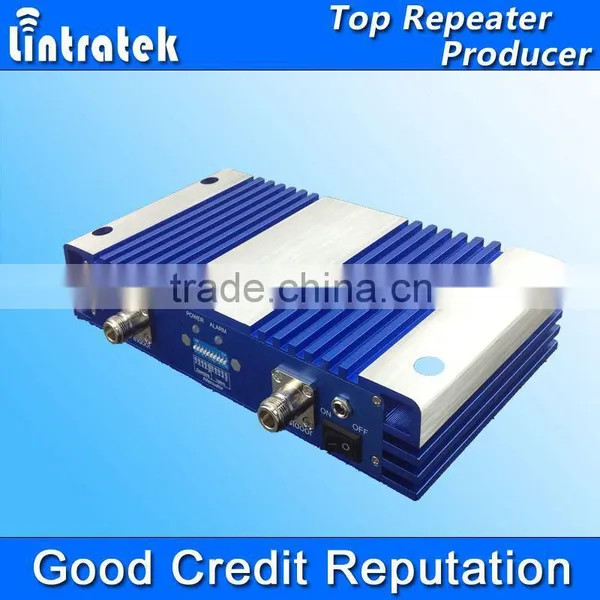

cell phone signal reception booster,GSM WCDMA network mobile phone signal Repeater selective band
Why do you need to buy repeater/booster?
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.
Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
- · Parking lots, tunnels
- · Big stores, office buildings
- · Cars, boats etc.
- · House in remote areas
How can repeater bring your mobile phone better signal?
•The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone repeater through the connection cable (coax).
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off
A regular cell phone repeater consists of: (full kit)
- · 1 - Outdoor antenna like YAGI antenna or panel antenna
- · 2 - Indoor Omni ceiling antenna
- · 3 – Power adapter
- · 5 - User manual
- · 6 - Cell phone repeater
- · 7. 10 meters outdoor cable and 1 meter indoor cable
| Model No | KS20E-GW | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | Customized from890-915/ 1920~1980 MHz |
Customized from935-960/2110 ~ 2170 MHz | |
| Output Power (ALC) | 15±1dBm | 20 ±1dBm | |
| Gain | 65±2 | 70±2dB | |
| Bandwidth | Selective Band | ||
| ALC | ≤ 2 | ||
| Ripple in Band | ≤5dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -20 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 7 dB | ||
| VSWR | ≤2 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC110V~220V DC+9V/3A | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 250*330*53(mm) | ||
| Weight | 2.5KG | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
Mobile repeater packing photo:
Trade Info:
MOQ:5pcs, sample order is welcome
Trade terms: EXW, FOB, CIF
Payment terms: T/T, L/C, western union, paypal, escrow etc.
Payment condition: 30% deposit to confirm production, balance clear before delivery.
Delivery time: 2-5 working days for sample order, 10-30 working days for bulk order
Packing: Neutral carton
Shipping: by sea, by air and by express delivery
Trading process:
After- Sales Service
We have 24 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
