repeater gsm for 1800mhz cell phone signal amplifier hot sale best price Lintratek mobile signal booster
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody's life.
Unfortunately, there are still some places where they can find themselves "out of coverage" ,no signal at all... Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:
- Parking lots, tunnels
- Big stores, office buildings
- Cars, boats etc.
- House in remote areas
How can repeater bring your mobile phone better signal?
•The outside antenna catches low signal from operator servicer's base station and delivers it to cell phone repeater through the connection cable (coax).
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off

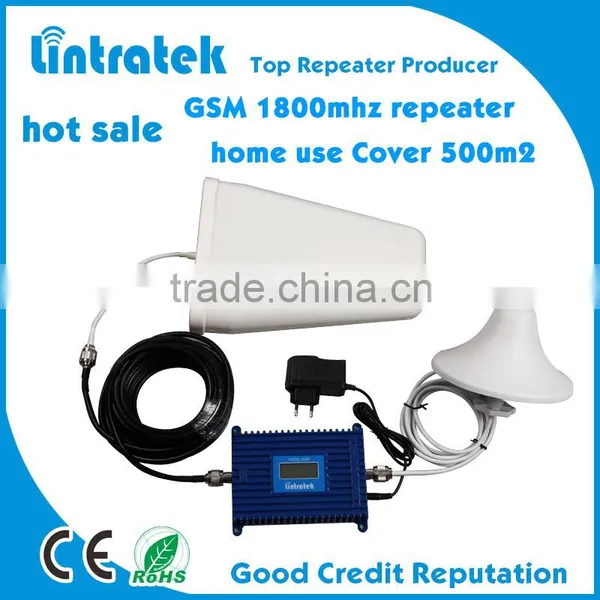

A regular cell phone repeater consists of: (full kit)
- 1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
- 2 - Indoor Omni ceiling antenna( panel antenna)
- 3 – Power adapter
- 5 - User manual
- 6 - Cell phone repeater
- 7- 10 meters outdoor cable and 1 meter indoor cable
Products detail:
Specification
Model No |
KW20L-DCS gsm dcs repeater |
||
Parameter data |
Uplink |
Downlink |
|
Frequency Range |
DCS |
1710-1785mhz |
1805-1880mhz |
Output Power |
20±2dBm |
20±2dBm |
|
Gain |
70 ±2 dB |
70±2dB |
|
Bandwidth |
75M |
||
Ripple in Band |
≤5dB |
||
Spurious Emission |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
VSWR |
≤3 |
||
MTBF |
>50000 hours |
||
Power Supply |
AC:100~240V, 50/ 60Hz;DC:5V 1A |
||
Power Consumption |
< 5W |
||
Impedance |
50 ohm |
||
Mechanical Specification | |||
RF Connector |
N-Female N |
||
Dimensions (D*W*H ) |
140*95*30(mm) |
||
Net weight |
< 0.45Kg |
||
Packing size (D*W*H ) |
250*240*65(mm) |
||
Gross weight |
< 0.7Kg |
||
Installation Type |
Wall Installation |
||
Environment Conditions |
IP40 |
||
Humidity |
< 90% |
||
Operating Temperature |
-10°C ~ 55°C |
||
