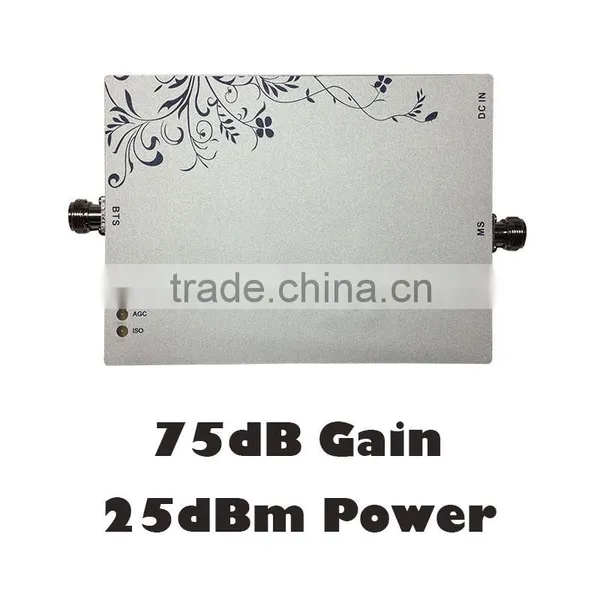

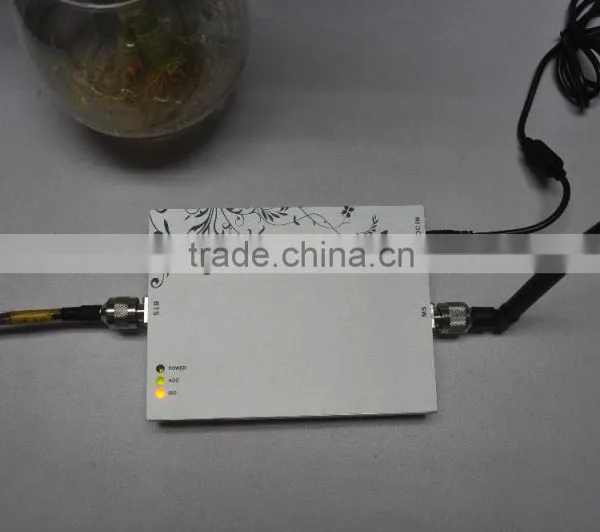

Gsm 1800mhz Repeater Mobile Signal Booster 800sqm Long Coverage Cell Phone Siganl Amplifier 75db 25dbm
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
lintratek
Model Number:
KW25F-DCS gsm repeater
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan Guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GSM1800MHz Mobile Signal Booster /sgianl Amplifier /signal BoosterUS$ 1 - 50MOQ: 1 Piece -
High Gain Good Quality Gsm 1800mhz Cell Phone Signal BoosterUS$ 30 - 50MOQ: 1 Piece
-
Signal Repeater, 70dB 2100mhz 3g Signal RepeaterUS$ 30 - 50MOQ: 1 Piece
-
Lower Price 100~1000sqm Coverage Gsm 1800mhz Cell Phone Signal BoosterUS$ 30 - 50MOQ: 1 Piece
-
Single Band 4g Signal Booster With 1800mhz Mobile Signal Amplifier for Dcs Repeater High GainUS$ 1 - 100MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
lintratek
Model Number
KW25F-DCS gsm repeater
Product Description
gsm 1800mhz repeater mobile signal booster 800sqm long coverage cell phone siganl amplifier 75db 25dbm
Specification
| Model No | KW25F -DCS signal amplifier | ||
| Parameter data | Uplink | Downlink | |
| Output Power | 23 ±2dBm | 25 ±2dBm | |
| Gain | 70 ±3 dB | 75 ±3 dB | |
| Automatic Gain Control | >20dB | ||
| Manual Gain Control | ≤31dB | ||
| Bandwidth | Wide Band | ||
| Ripple in Band | ≤3dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Noise Figure @ max. gain | ≤ 6 dB | ||
| VSWR | ≤ 1.5 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC 165–265V , 50Hz | ||
| Power Comsumption | ≤ 15 W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female N | ||
| Cooling | Heatsink Convection cooling | ||
| Dimensions (D x W xH ) | 180*140*47 (mm) | ||
| Weight | 1.3 Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP55 | ||
| Humidity | < 90% | ||
| Operating Temperature | -25℃ ~ 55℃ | ||
