Cell Phone Signal Amplifier,3g Signal Booster for Support 2100MHz,mobile Phone Signal Booster

Cell Phone Signal Amplifier,3g Signal Booster for Support 2100MHz,mobile Phone Signal Booster photo-1
Cell Phone Signal Amplifier,3g Signal Booster for Support 2100MHz,mobile Phone Signal Booster photo-2
Cell Phone Signal Amplifier,3g Signal Booster for Support 2100MHz,mobile Phone Signal Booster photo-3
Cell Phone Signal Amplifier,3g Signal Booster for Support 2100MHz,mobile Phone Signal Booster photo-4
US$ 1 - 98 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
lintratek repeater
Model Number:
KW25F-WCDMA 3g signal booster
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGDONG
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name lintratek repeater
Model Number KW25F-WCDMA 3g signal booster


· Excellent Quality
· Exquisite appearance
· High Technology
· Considerate service
Lintratek come, to save you from the bad signal!!!

Specification
From: Vita Wong                   Tel/Whatsapp: +8613229223812
Model No
KW25F-WCDMA
Parameter data
Uplink
Downlink
Frequency Range
WCDMA
1920~1980 MHz
2110 ~ 2170 MHz
Output Power
20 ±2dBm
25 ±2dBm
Gain
70±2 dB
75±2dB
Bandwidth
Wide Band
Automatic Gain Control
>20dB
Manual Gain Control
31dB in step of 1dB
Ripple in Band
≤4dB
Intermodulation Products
9KHz~1GHz
≤ -36 dBm
1GHz~12.75GHz
≤ -30 dBm
Spurious Emission
9KHz~1GHz
≤ -36 dBm
1GHz~12.75GHz
≤ -30 dBm
Noise Figure @ max. gain
≤ 6 dB
VSWR
≤2
MTBF
>50000 hours
Power Supply
AC:90~265V, 50/ 60Hz;DC:9V 3A
Power Comsumption
< 20W
Impedance
50 ohm
Mechanical Specification
RF Connector
N-Female
Cooling
Heatsink Convection cooling
Dimensions (D x W xH )
250*145*53(mm)
Weight
≤ 1 Kg
Installation Type
Wall Installation
Environment Conditions
IP40
Humidity
< 90%
Operating Temperature
-10℃ ~ 55℃

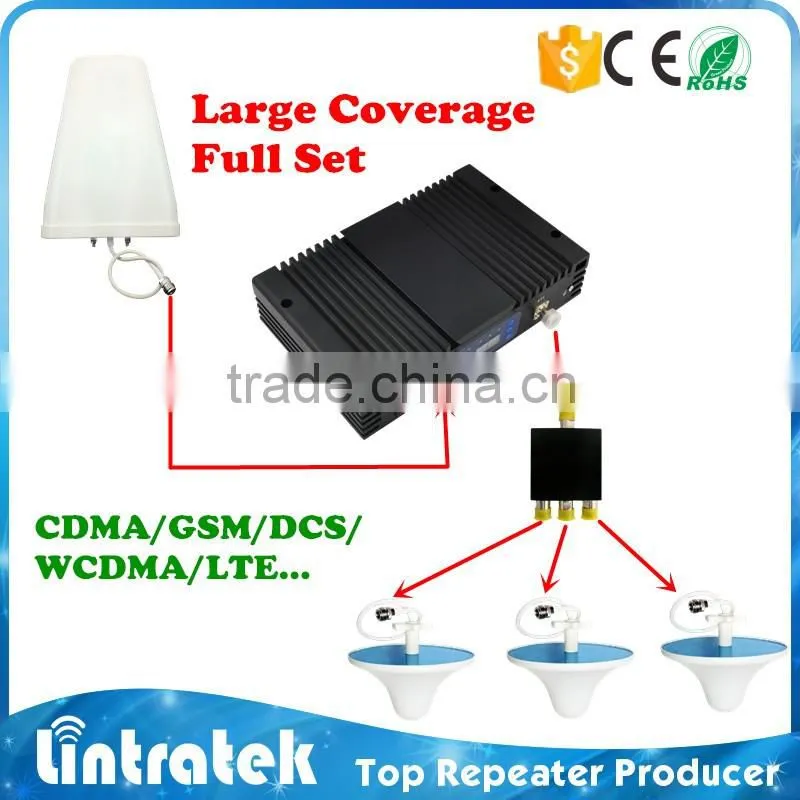

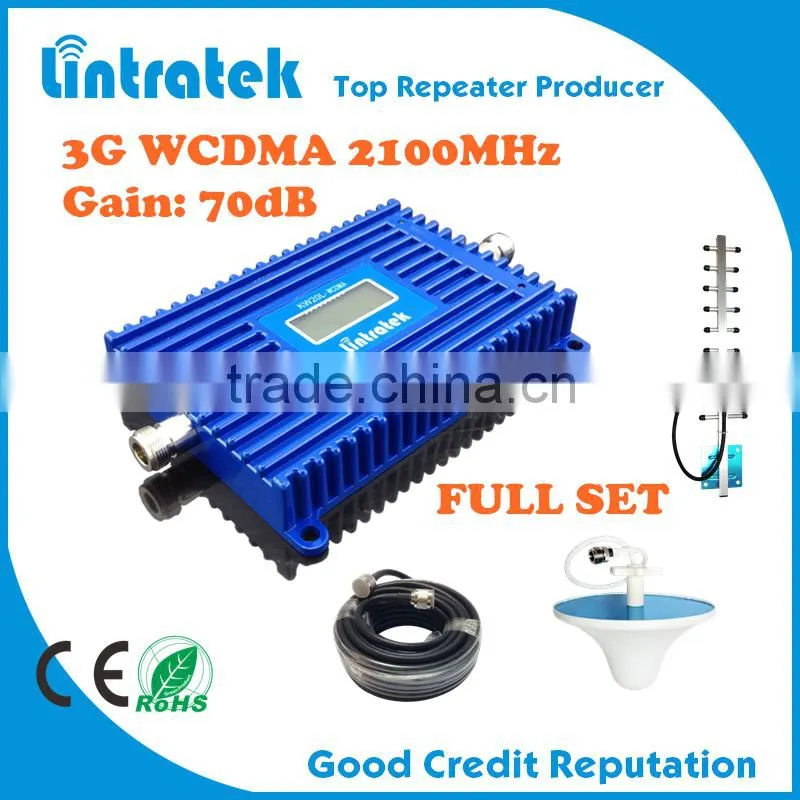

FULL SET

· 1 - Outdoor antenna like YAGI antenna or panel antenna
· 2 - Indoor Omni ceiling antenna
· 3 – Power adapter
· 4 - User manual
· 5 - Cell phone repeater
· 6 - 10 meters outdoor cable and 2 meter indoor cable





After - Sales Service
We have 12 months quality guarantee for all customers, you can return goods to us when receive defective repeater, but air freight charges should be responsible by buyer.

Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
