4QZ-1800 Self-propelled Silage Corn Harvester Machine With 140 hp Turbo Engine
- 50 Set / Sets per Month
- Xingang
- T/T Credit Card PayPal
- Sale SEW equivalent parallel-shaft helical gearbox F Series gear box
- F series solid shaft helical gear reducer parallel shaft transmission box
- RV series mini worm gear box
- RV series low RPM turbo worm and gear reducers
- rv Worm and Worm Ger Calculation Industrial Gear Reducer
- NMRV RV 030-130 Series worm and gear wheel speed reducer
Product Details
Condition: | New | Application: | harvesting corn as animal feed | Type: | Combine Harvester |
Drive Type: | Other, chain drive | Usage: | Corn Harvester | Place of Origin: | Hebei, China |
Brand Name: | Dingguagua | Model Number: | 4QZ-1800 | Dimension(L*W*H): | 5100*1800*3300mm |
Weight: | 5200kg | Certificate: | Other, ISO9001 | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
4QZ-1800 Self-propelled Silage Corn Harvester Machine With 140 hp turbo engine
1. The design of double discs header feeds all the crops uniformly into drum, which can cut all the stalks within the working width(not row by row), to improve the yield rate.
2. Adopted upright feeding roller, upright chaffcutter, which is simple structure and stable performance, not only cutting off the straw cuticle, but also retaining the nutrients,
3. They are equipped with YTO inline 4-cylinder with 140 hp turbo engine, efficient and high-powered.
4. The new cab with 270 degree wide field of vision and simple operating system makes it easy to drive.
5. Equipment with storage containers of forage makes forages recycle and harvest more convenient.
6. Big track and short wheelbase make it convenient and flexible to bend and turn
7. High efficiency, low price, and low fuel consumption, make this machine become more and more small and middle size pasture’s first choice.
Specifications:
Item | Unit | Specification |
Model | 4QZ-1800 | |
Overall dimension (length, width, height) | mm | 5100*1800*3300 |
Net weight | kg | 5200 |
Engine power | kw | 103 |
Mainshaft speed of cutting device | r/min | 1300 |
Header width | mm | 1800 |
Header up-down scope | mm | 0-400 |
Cutting device Structure | upright | |
Throwing drum turning angle | ° | 270 |
Rotor diameter of cutting device | mm | 800 |
Cutting length | mm | Adjust the quantity of the saws |
Throwing height | mm | 4300 |
Throwing distance | mm | ≥3000 |
Walking velocity | km/h | 1-10 |

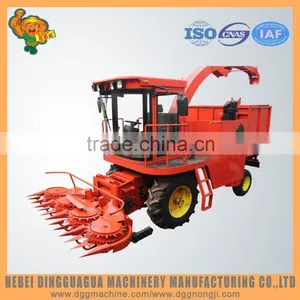

Machine photos:
Company profile
Hebei Dingguagua Machinery Manufacturing Co.,Ltd. is a high-tech modern agricultural machinery manufacturing company, professionally engaged in R&D design, manufacturing, sales and promotion of agricultural machinery with abundant R&D and production capability. The company has an occupation area of 54,000 square meters and a building area of 38000 square meters; we now totally have 260 employees; 40 of them are R&D personnel with high education level; at present, the company has an annual production capacity of various agricultural machines of 150,000 sets, including 12 major series and 50 varieties of products. In addition, we own six China national practical new-type patents.
Major products include:
1)self-propelled forage harvester
2)cultivator
3)mini-tiller
4)grain fertilizer seeder
5)corn precision seeder
