Good modern agricultural machinery 4QZ-1800 self-propelled mini corn harvester machine
1.The design of double discs header feeds all the crops uniformly into drum,which can cut all the stalks within the working width(not row by row), to improve the yield rate.
2.Adopted upright feeding roller,upright chaffer cutter,which is simple structure and stable performance,not only cutting off the straw cuticle,but also retaining the nutrients.
3.They are equipped with YTO inline 4-cylinder with 140hp turbo engine,efficient and high-powered
4.The new cab with 270 degree wide field of vision and simple operating system makes it easy to drive .
5.Equipment with storage containers of forage makes forages recycle and harvest more convenient.
6.Big track and short wheelbase make it convenient and flexible to bend and turn
7.High efficiency,low price,and low fuel consumption,make this machine become more and more small and middlie size pasture's first choice.
Specifications:
|
Item |
Unit | Specification |
| Model | mm | 4QZ-1800 |
| Overall dimenssion(length,width,height) | mm | 5000*1800*2900 |
| Net weight | kg | 4000 |
| Engine power | hp | 140 |
| Mainshaft speed of cutting device | r/min | 1300 |
| Header width | mm | 1800 |
| Header up-down scope | mm | 0-400 |
| Cutting device structure | upright | |
| Throwing drum turning angle | ° | 360 |
| Rotor diameter of cutting device | mm | 800 |
| Fragment length | mm | Adjust the quantity of the saws |
| Throwing height | mm | 4300 |
| Throwing distance | mm | ≥3000 |
| walking velocity | km/h | 1-10 |

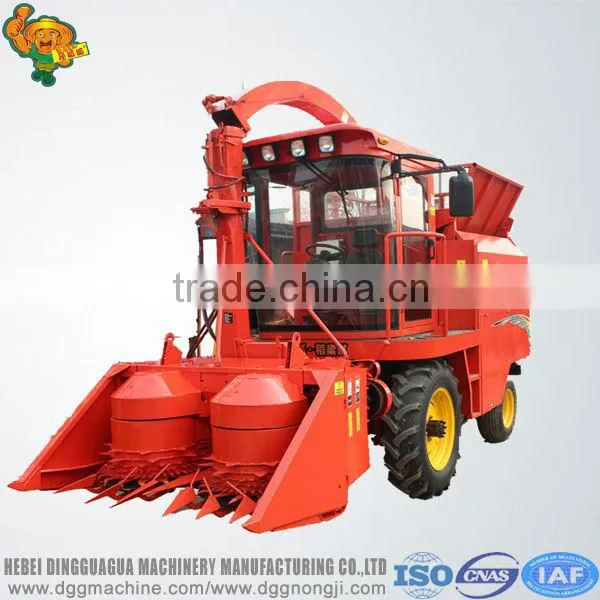

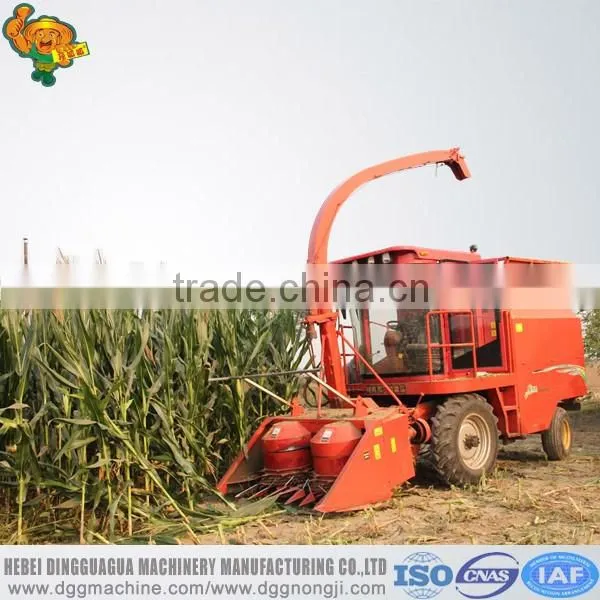

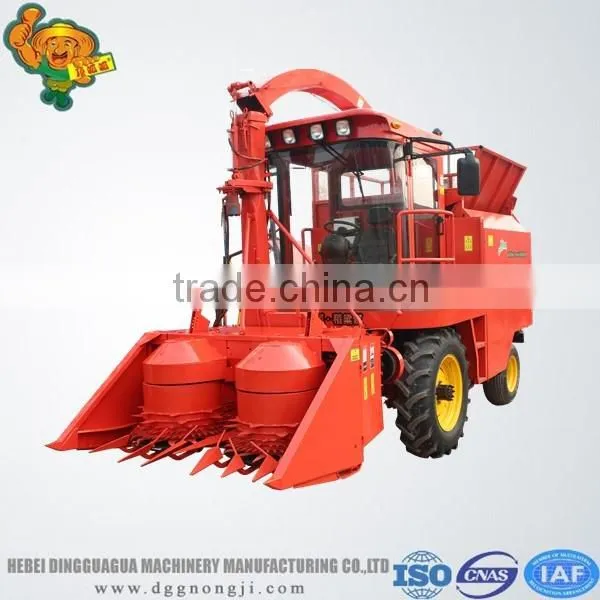

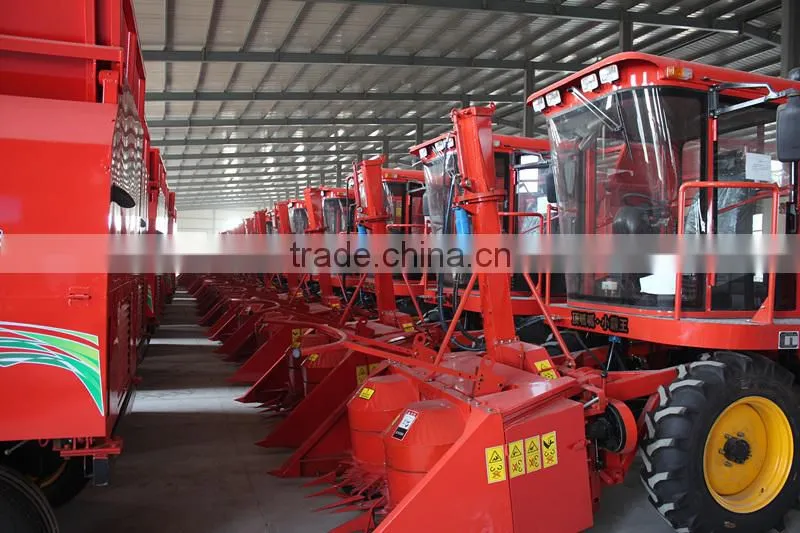

Machine photos
Customer Visit Our factory

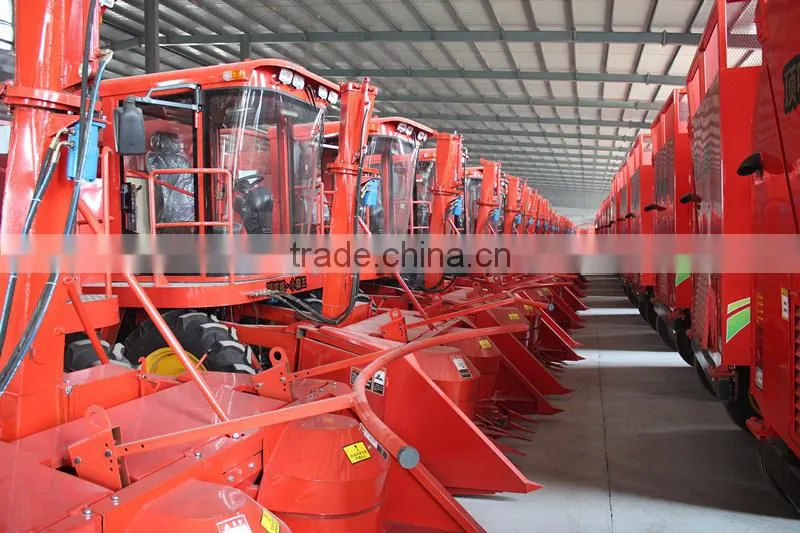

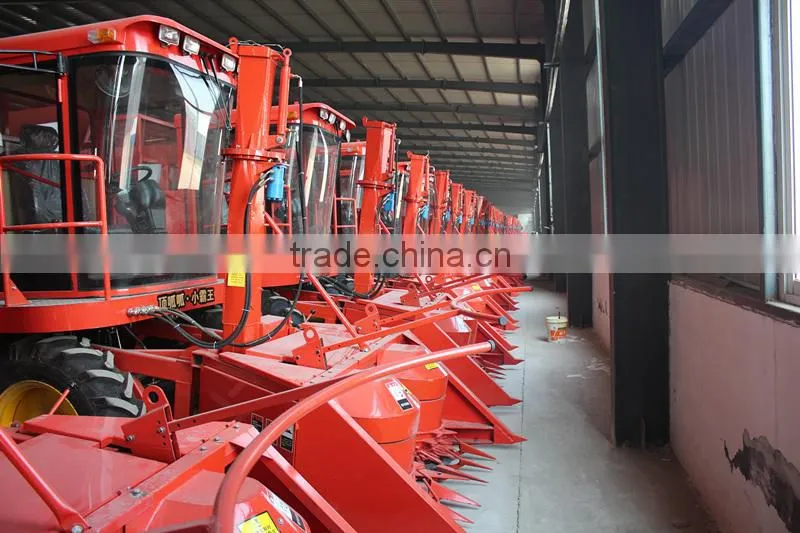

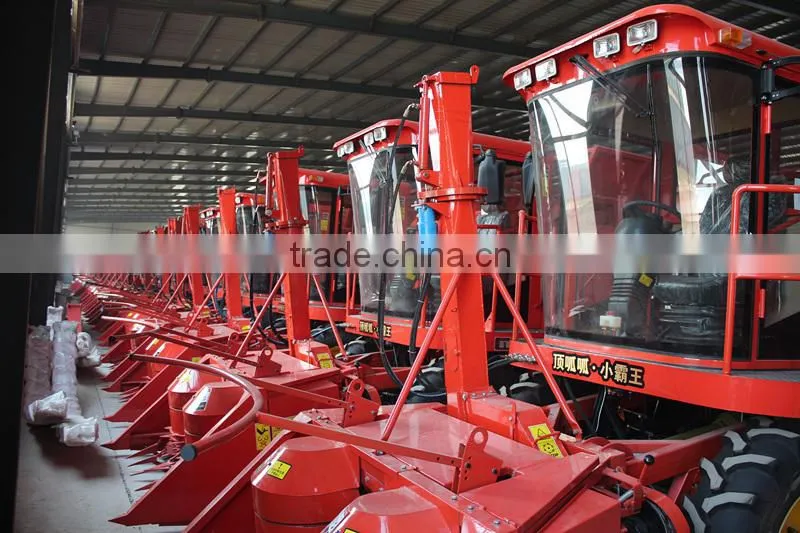

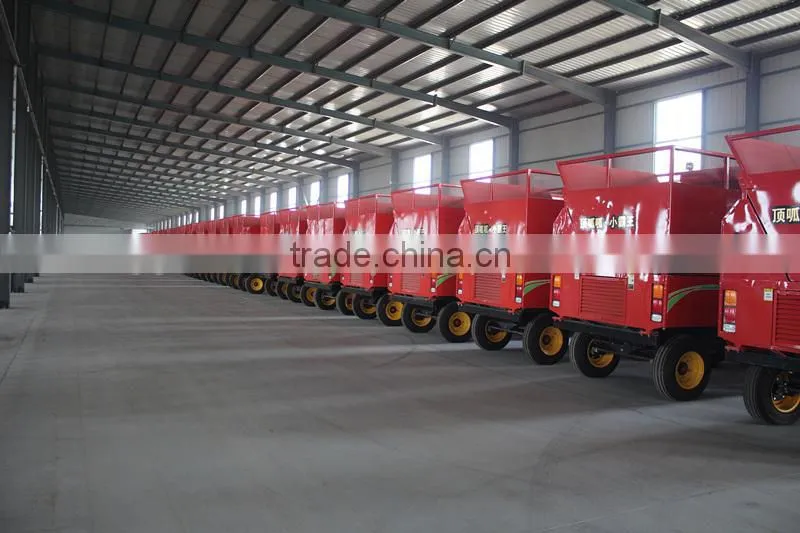

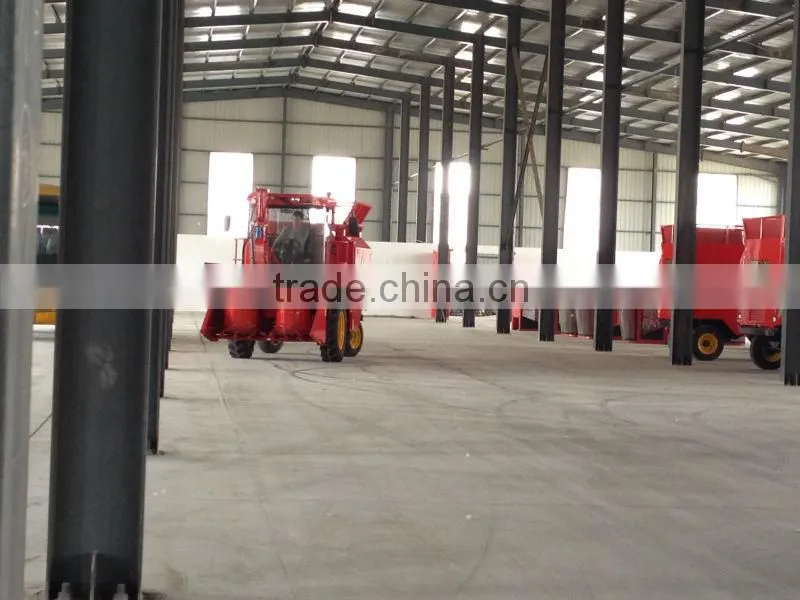

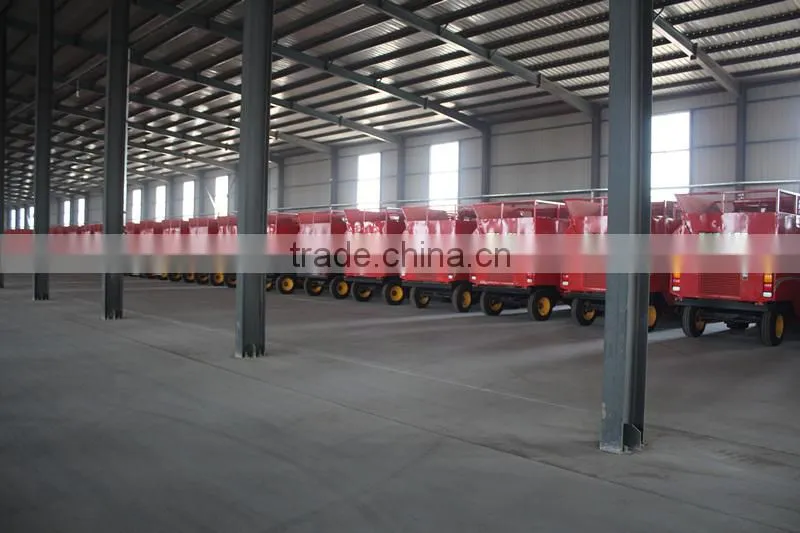

Warehouse storage
Hebei Dingguagua Machinery Manufacturing Co., Ltd. is a high-tech modern agricultural machinery manufacturing
company,professionally engaged in R&D design,manufacturing,sales and promotion of agricultural machinery with abundant R&D and production capability. The company has an occupation area of 54000 square meters and a building area of 38000 square meters; we now totally have 260 employees;40 0f them are R&D personnel with high education level;at present,the company has an annual production capacity of various agricultural mechanines of 150000 sets,including 12 major series and 50 varieties of products. In addition,we own six China national practical new-type patents.
Major products include:
1) cultivator with fertilizer
2)self-propelled forage harvester
3)mini-tiller
4)seeder(for different crops)
Participating in professional exhibitions

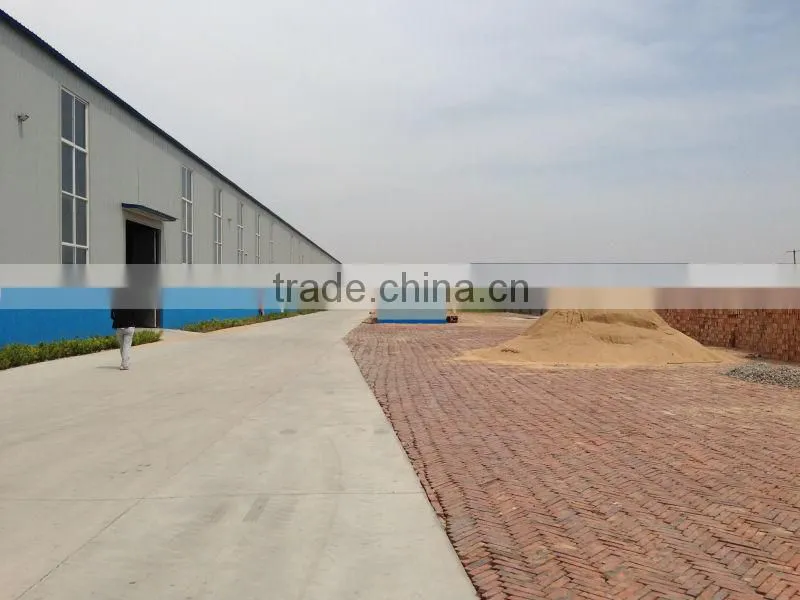

Factory photos
