Bulk surface treatment machine
Product Description

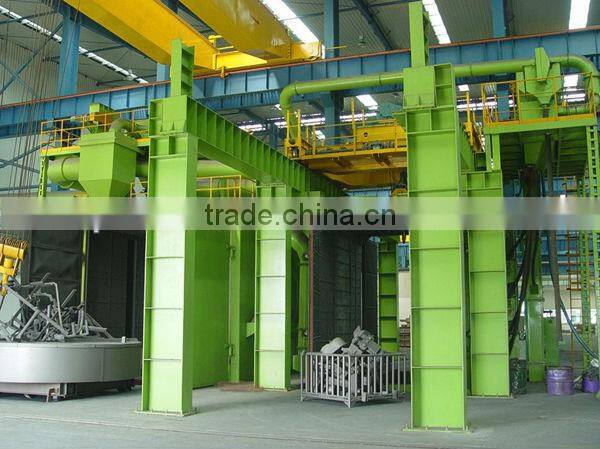

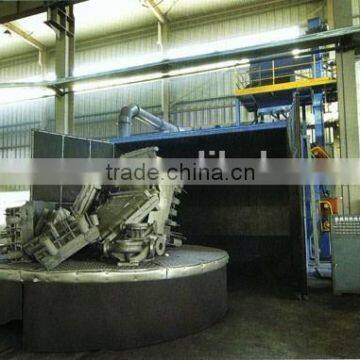

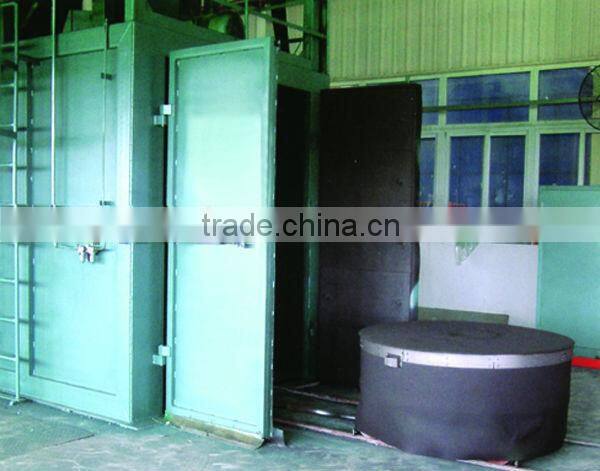

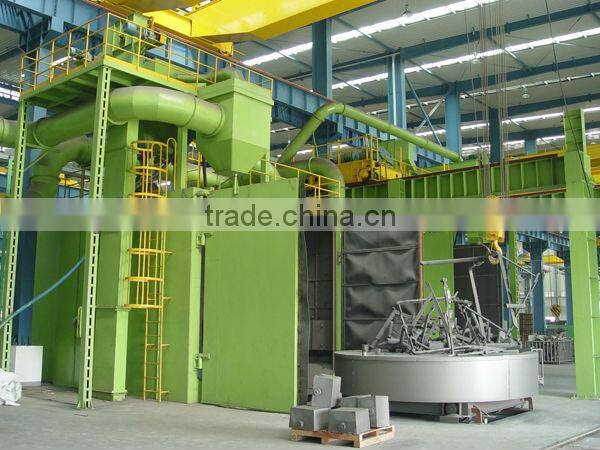

Rotary trolley shot blasting machine throws high speed shot to surface of big castings to remove gravel and scale. The high
speed turbines of rotary trolley shot blasting machine throw steel shot to surface of the workpiece on the trolley so as to
remove sticky gravel and scale on big castings, obtaining natural metal color with certain roughness. Usually, shot blasting is
not enough to clean castings with deep angle or convex surface. Air sand blasting becomes a auxiliary method to it. This series
of blasting machine mainly applied to clean large works such as construction machinery, machine tools, metallurgy, motor
parts and mining machine parts.
This machine mainly used in cleaning and strengthening the surface of the castings, and used in removing oxide and welding
dregs ,it is widely suitable for the field of oil casting, forging,machinery, iron and steel industry.
Technique parameter
| model | Q365C | Q3610 | Q3620 |
| Size of workpiece cleaned(mm) | 2500*1300 | 2500*1500*280 | 4000*3000*700 |
| maxmum weight of workpiece(kg) | 5000 | 10000 | 20000 |
| shot blast rate(kg/min) | 2*250 | 4*250 | 4*250 |
| lifting capacity of hoist(t/h) | 40 | 60 | 75 |
| saparating capacity ofseparator(t/h) | 40 | 60 | 75 |
| ventilation capacity(m³/h) | 13200 | 240000 | 21000 |
| power(excluding dedusting)(kw) | 39.2 | 188.45 | 185.25 |
| demension(mm) | 9000*4200*9290 | 14900*500*8700 | 16900*6540*10020 |
About us
Qingdao Rovan Machinery Co.,Ltd was established in 2001, Asia's largest shot blasting machine supplier, do foreign trade
export for ten years,mainly produces shot blasting machine, shot peening equipment, resin sand equipment, sand plant
equipment, dust collector and conditioning equipment, V law molding line etc.
Q36 sereis automatic rotating shot blasting machine Technical advantages
With new product design,development,prototype,debug capabilities,provide users with the best technical solutions in the shortest
time,and delivery in high quality.In the shot blasting,sand casting,shape own professional technicist to leading technology work.
Trade Terms:
1. Payment:
(1)Telegraphic Transfer(30% advance payment, balance before shipment).
(2)Telegraphic Transfer(30% advance payment, balance against copy of documents).
(3)Letter of Credit: at sighs.
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
Application:
surface treatment
machined part
style design
Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years,
competitive with good quantity.
7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually
paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to
be finished in high quality and stable feature. Welcome to contact us or visit our company.
If you want to buy shot blasting machine, could you tell me the answers as follow?Please indicate the following details:
1) What kind of workpiece will you clean? Material?2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?
3) How heavy is each workpiece? Especially the weight of maximum workpiece?4) How many tons will you clean for each month or each day?
After getting your informations, the detailed technical parameters will be sent to you for your reference. Note:As we are an
integrated company, we sell our products direct to customers without any extra agent charges. Hence, our price is relatively lower
than others. Moreover, we are using the most advanced equipment and technology in order to produce high quality and more
professional.
