Specifications
XJ750 Workover Rigdouble Caterpillar C15 engines
Allison transmissions
travelling system:6X5

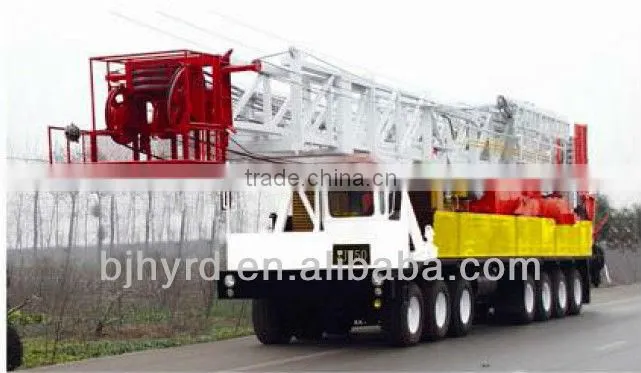

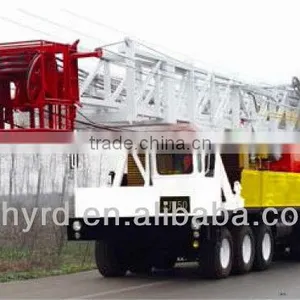

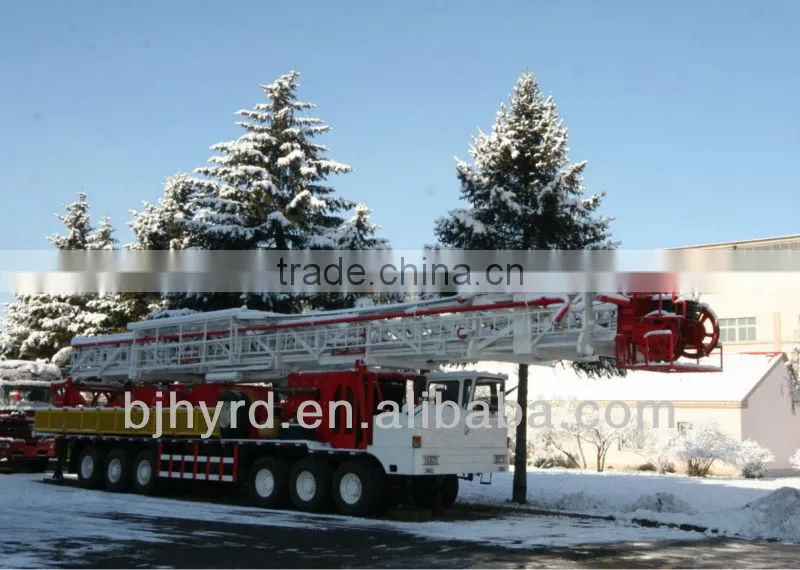

XJ750 Workover Rig
Specification
1.XJ750 workover rig adopts double Caterpillar C15 engines with Allison transmissions.
2. It is the best-selling mobile drilling rig for both oil drilling and workover purposes.
3. It can reach up to 3,000m drilling depth and 8,000m workover depth,
4. max hook load. 1,700kN
5.XJ750 rig is the ideal choice for heavy duty workover and mobile drilling operation.
Technical Specification
Model |
XJ750 |
Drilling depth |
3,000m(9,840ftm 4-1/2” DP) |
Workover depth |
8,000m(26,200ft,2-7/8” DP) 6,500m(21,330ft, 3-1/2” DP) 5,000m (16,400ft, 4-1/2” DP ) |
Max. hook load |
1,700kN(382,000lbf) |
Wireline Dia. |
Φ29mm(1-1/8”) |
Traveling system |
6×5 |
overall dimensions(L×W×H) |
22.2×3.1×4.45m 72.8×10.2×14.6 ft |
Weight |
76,000kg (1,676,000 lbs) |
Max. travel speed |
45km/h,(28 mil/h) |
Carrier |
self-propeller 14×8 |
Engine |
Cat C15 ACERT AⅢ×2 |
Power of engine |
325kW(440hp)/2,100 r/min |
transmission |
Allison M5610HR×2 |
Derrick net. height |
38m(125ft) |
Derrick max. hook load |
1,700kN(382,000lbf) |
Derrick effective lines |
10 |
Racking board capacity |
3,000m (9,840ft, 4-1/2” DP) |
racking board height |
24m (79ft) |
max. wind welocity |
30m/s(98ft/s) |
drawwork rated power |
373kW(500hp) ×2 |
main drum |
Φ528×1041mm(Φ20.8”×41”) |
max. faster line pull |
280kN (62,300lbf) |
sandking drum |
Φ315×1,005mm(Φ12.4”×39.6”) |
Air assist brake system |
KOBELT Disc4-10.5-48.5” |
