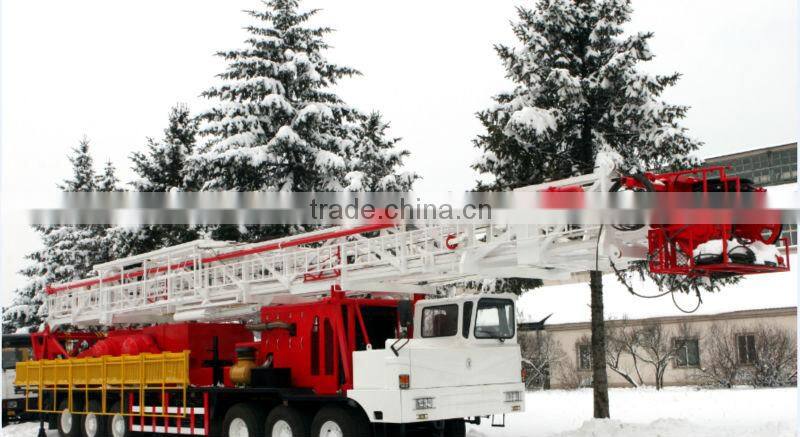

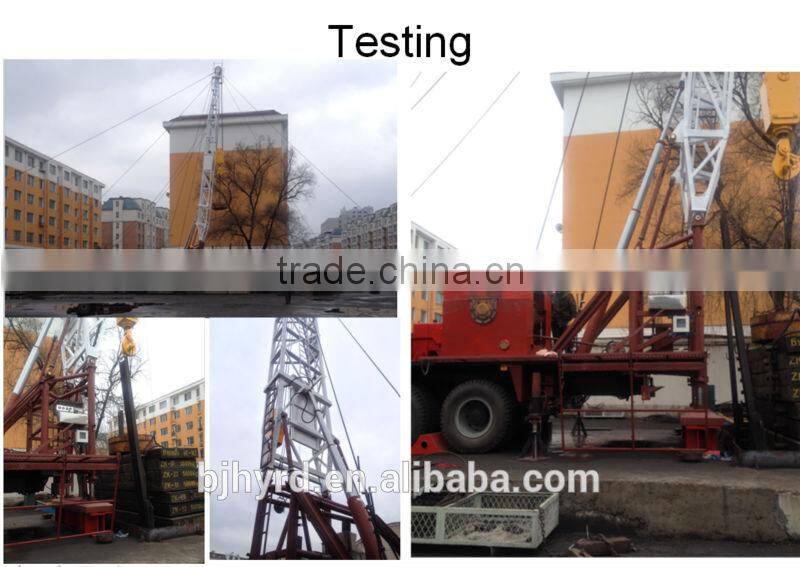

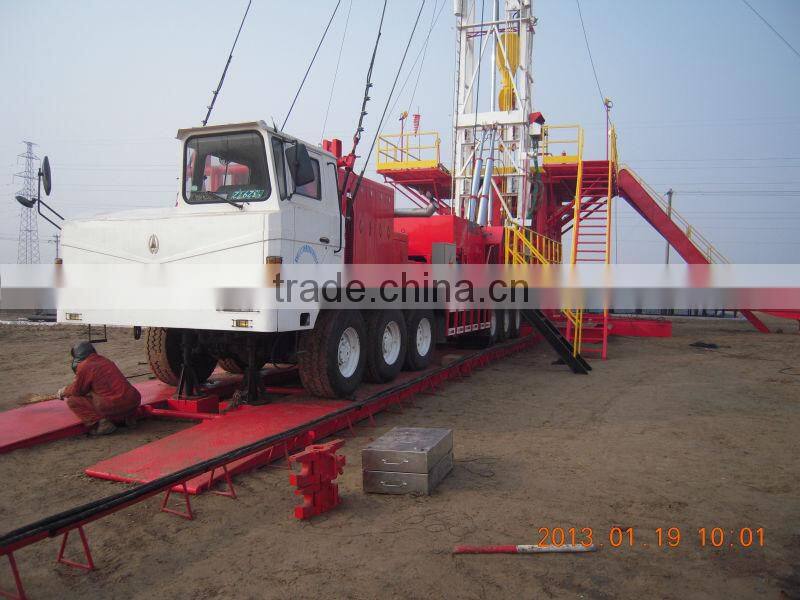

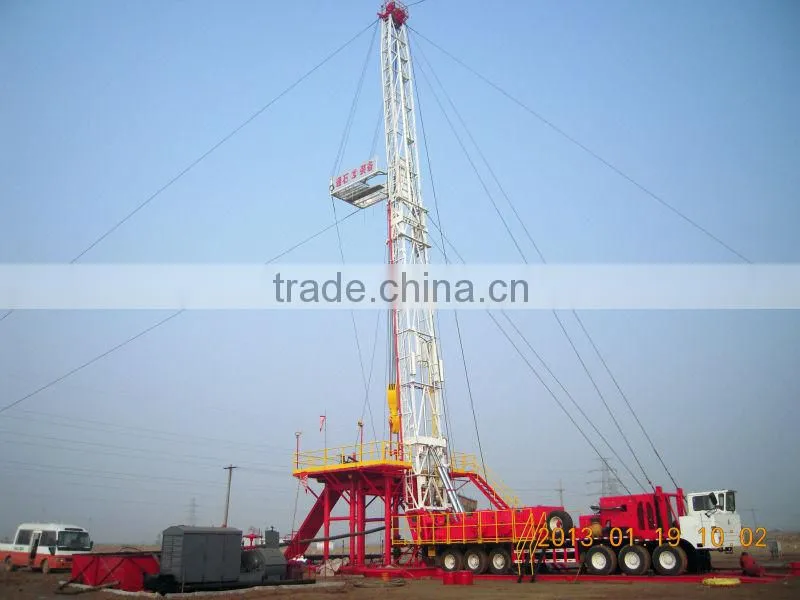

XJ 350 Workover Rig for Oil Field

Description

350hp Workover Rig (Overhaul)

350hp Workover Rig (Servicing)

Workover depth

3,200m (10,500ft, 2-7/8” DP)

2,500m (8,200ft, 3-1/2” DP)

Servicing depth

4,000m (13,120ft, 2-7/8” DP)

Rated hook load

600kN(134,900lbf)

Max. hook load

900kN(202,330lbf)

Traveling system

3×4(Φ26mm(1”) wireline)

Hook hoistin speed

0.25-1.4m/s(0.82-4.6ft/s)

Overall dimensions (L×W×H)

18.5×2.9×4.2m

60.7×9.5×13.8ft

18.5×2.85×4.2m

60.7×9.4×13.8ft

Total weight

51,000kg(112,440lb)

49,500kg(109,130lb)

Max. travel speed

45km/h(28mil/h)

Carrier

Self-propeller 10×8

Engine model and rated power

Caterpillar C9

260kW(350hp)/2,100rpm

Detroit S6063

298kW(400hp)/2,100rpm

Transmission

Allison 4700 OFS

Allison M5610s

Derrick height

31.7m(104ft)

Max. static load

900kN(202,330lbf)

Racking board capacity

4,000m(13,120ft, 2-7/8 EUE Tubing)

Racking board height

16.8m(55ft)

Drawwork rated power

224kW(300hp, double drum)

238kW(320hp)

Main drum

Φ406×890mm(Φ16”×35”)

Φ429×965mm (Φ16.9”×38”)

Max. faster line pull

180kN(40,470lbf)

Sanding drum

Φ965×264mm(Φ38”×10.4”)

Air assist brake system

KOBELT Disc4-7-35

Caliper 5026-CM

KOBELT Disc4-7-48

Caliper 5026-CM

Drill floor(L×W×H)

4.2×4.2×3.7m(13.8×13.8×12.1ft)

Swivel model

SL90

Max. load

900kN(202,330lbf)

ZP125 rotary table

Max. load 900kN (202,330lbf)

Max. open Dia.292mm(11.5”)
