Casing and Tubing Coupling Bucking Units
- Tianjin
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Casing And Tubing Coupling Bucking Unit For Oil Field Service
-
API Certification Casing And Tubing Coupling Bucking Unit For Oil Field Service
-
Hydraulic Bucking Unit
-
API Standard TJA Casing and Tubing Coupling Bucking Units
-
PSX50 Drilling Rig Hydraulic Disc Brake
-
PSZ65 Hydraulic Disc Brake Machine for Workover Rig
Product Details
| Place of Origin | Beijing, China | Brand Name | ocean renda | |
| Model Number | all | Type | Other | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbon Steel | Processing Type | Casting | |
| Use | Coal Mining |
Product Description

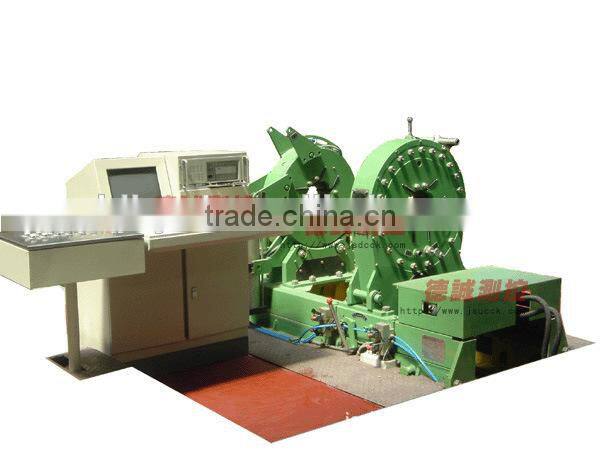

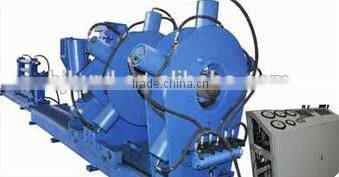

Casing and tubing coupling bucking units
1.Size:2 3/8-20"
2.Torque:25-50KN.M
3.Apply in Casing and Tubing
4.Made in China
Casing and Tubing Bucking Units
TJA Series of casing and tubing coupling bucking unit is widely applicable for casing and tubing manufacturing, and oil field service. Among which the TJA series is the most representive casing and tubing making equipment with most mature technology and most advanced structure. The bucking unit follows API tubing thread connection requirements, especially suitable for screwin screwout of multiple kinds of coupling. Never-stick gripping mechanism and precise torque-control system provide whole computer moninor during screwing process. Manual, semi-automatic, fully automatic are available, and features large range, high torque, long service life and safe and reliable. The product has awarded national invention patent
Technical Parameters:
Model | TJA7-25 | TJA95/8-40 | TJA133/8-45 | TJA20-50 | ||||||
Applicable size | mm | Φ60.33—Φ177.8 | Φ60.33—Φ244.48 | Φ60.33—Φ340 | Φ244.48-Φ508 | |||||
in | 23/8—7 | 23/8—95/8 | 23/8—133/8 | 95/8—20 | ||||||
Torque | Hi gear | kN.m | 15 | 14 | 16 | 17.6 | ||||
ft.lbf | 11060 | 10320 | 11800 | 12980 | ||||||
Low gear | kN.m | 25 | 40 | 45 | 50 | |||||
ft.lbf | 18440 | 29500 | 33190 | 36870 | ||||||
Speed | Hi gear | rpm | 1-28 | 0.95-26 | 0.63-23.7 | 0.7-20.3 | ||||
Low gear | rpm | 0.53-11.1 | 0.37-9.3 | 0.23-8.3 | 0.25-7 | |||||
Central height | mm | 1100 | 1150 | 1150 | 1200 | |||||
in | 43.31 | 45.28 | 45.28 | 47.24 | ||||||
Core Dia | mm | 235 | 315 | 400 | 565 | |||||
in | 9.25 | 12.4 | 15.75 | 22.24 | ||||||
Shifting Stroke | Mm | 800 | 800 | 800 | 800 | |||||
in | 31.5 | 31.5 | 31.5 | 31.5 | ||||||
Hydraulic sytem Maximum pressure | MPa | 20 | ||||||||
psi | 2900 | |||||||||
Hydraulic system | L/min | 5-185 | ||||||||
gpm | 1.3-48.9 | |||||||||
| Pressure | MPa | 0.4-1 | |||||||
psi | 58-145 | |||||||||
Air consumption | m3/h | 2 | ||||||||
cfm | 1.2 | |||||||||
Overall dimensions | mm | 3210×1280×1650 | 3220×1300×1700 | 3250×1300×1700 | 3520×1450×1800 | |||||
in | 126.4×50.4×65 | 126.8×51.2×67 | 128×51.2×67 | 138.6×57×70.9 | ||||||
Weight | kg | 8000 | 10800 | 10800 | 12000 | |||||
lb | 17600 | 23760 | 23760 | 26400 | ||||||
