Drill Pipe Manual Tongs
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
OCEAN RENDA
Model Number:
type B
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
OCEAN RENDA
Model Number
type B

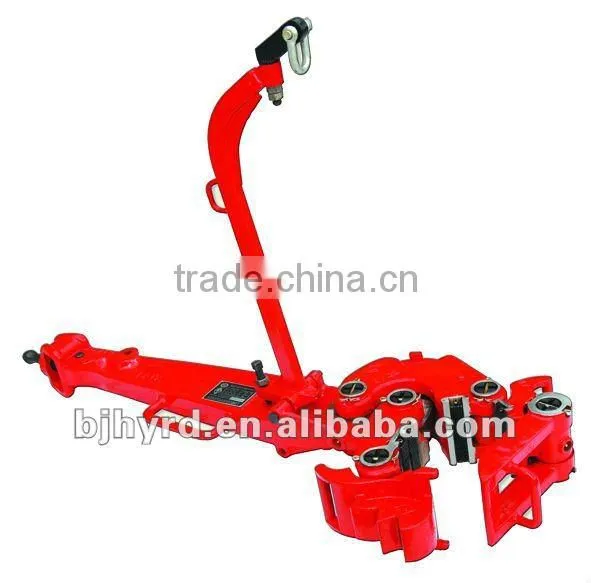

Drill pipe manual tongs
Product Description
Specification
Type Q86-324/75(3-3/8—12-3/4 in) B manual tong is an essential tool in oil drilling operation-fasten or remove drill pipe and casing joint or coupling. Changing lug jaws and latch step can adjust different handling sizes of the tongs. It applies for different pipe sizes as changing different jaws.
Technical Specification
| No. of latch lug jaws | Handling shoulder | Handling OD.mm(in) | Rated torque kN.m(ft-lbs) |
| 5a | 1 | 86-105(3-3/8~4-1/8) | 55(12,365) |
| 2 | 105-133(4-1/8~5-1/4) | 75(16,860) | |
| 5b | 1 | 108-133(4-1/4~5-1/4) | 75(16,860) |
| 2 | 127-146(5~5-3/4) | 75(16,860) | |
| 3 | 152-171(6~6-3/4) | 75(16,860) | |
| 5b-1 | 1 | 133-146(5~5-3/4) | 75(16,860) |
| 2 | 152-168(6~6-5/6) | 75(16,860) | |
| 3 | 171-203(6-3/4~8) | 55(12,365) | |
| 5c | 1 | 168-187(6-5/8~7-3/8) | 75(16,860) |
| 2 | 187-203(7-3/8~8) | 75(16,860) | |
| 3 | 216-219(8-1/2~8-5/8) | 55(12,365) | |
| 5d | 1 | 216-244(8-1/2~9-5/8) | 55(12,365) |
| 2 | 270-273-(10-5/8~10-3/4) | 55(12,365) | |
| 5e | 1 | 298(11-3/4) | 55(12,365) |
| 2 | 324(12-3/4) | 55(12,365) | |
| 5e 3 | 1 | 340(13-3/8) | 55(12,365) |
