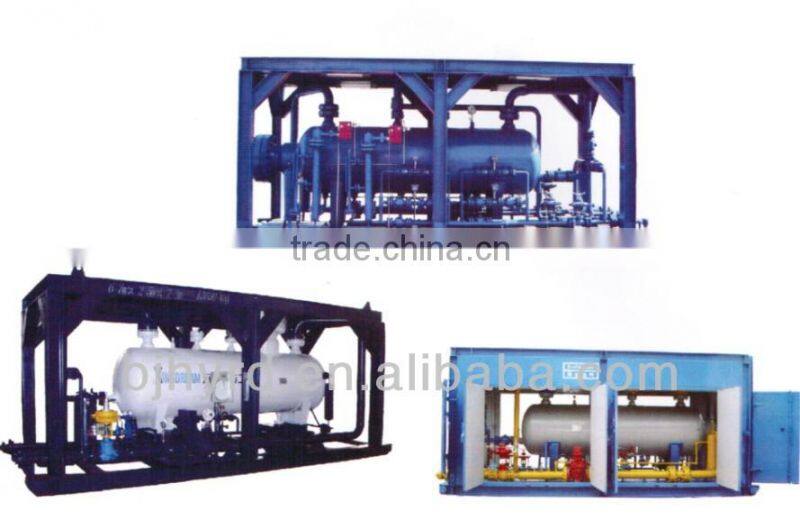

Three phase well test separator
Specification
1. Type:WS1×3.5
2.is mainly used for separating the oil-gas flow into oil, water and gas
3.three phase separator
4.evaluate the daily capacity of crude oil and natural gas by advanced measuring instrument
5.makes sampling and analysis of components easier
Separator Principle
After inflow of oil& gas from oil well flows into the separator through inlet separator pipeline. It would then go through the energy absorber at inlet and the first phase separation is completed. The oil-gas flow, after the first phase separation, would then be buffered by the corrugated board. The resulting fog-foam will be removed from gas flow and the residual liquid drops can be cleaned out. The separated, clean natural gas will go into an anti-vortex mist collector and be put out from the tank, and then the natural gas shall enter into air process after going through the testing air orifice plate device and pneumatic control valve. After separating the resulting liquid by gravity, oil can be obtained from oil separating board. Outlet for oil and water are located at the front or end of the oil separating board respectively. Flowed oil and water are measured separately by flow meter when they pass through, and then would be processed individually.
Technical Parameters
Type |
WS1×3.5 |
working pressure |
9.8Mpa, 6.4MPa |
Diameter |
Φ1000 |
Gas processing capacity |
1000 thousand m3/d |
Liquid processing capacity |
800 m3/d |
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
