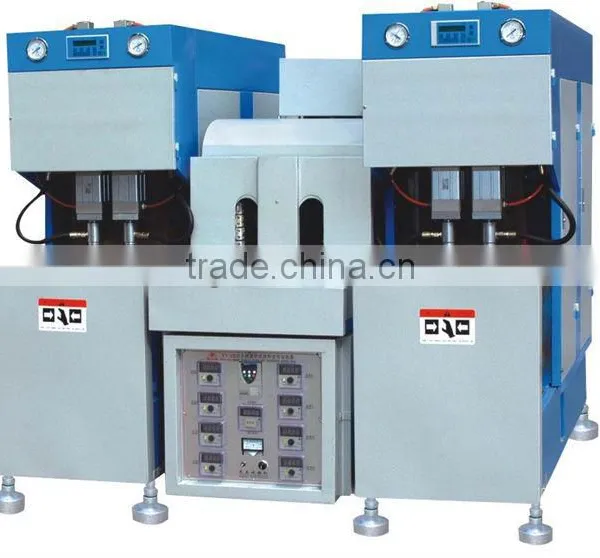

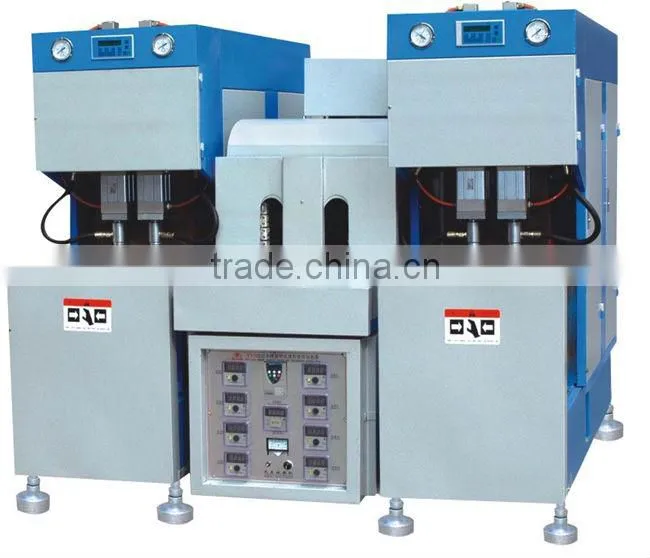

CM-8Y Semi-automatic PET bottle blowing machine
Technique Parameter of blow molding machine:
PET bottle blowing machine
Main parameter: | ||
Model |
CM-8Y |
|
Container |
Product material |
PET |
Volume |
0.1L-2L |
|
Theoretical output |
1200-1600PCS/H |
|
Preform length |
15mm-350mm |
|
Preform inner diameter |
φ5mm-38mm |
|
Moulding |
Max.mould plate Dimenstion (L x W) |
350x380mm |
Max.mould thickness |
180mm |
|
Clamping force |
45KN |
|
Mould opening stroke |
160mm |
|
Machine size and weight |
Main machine (L x W x H) |
160x60x161cm |
Main machine weight |
500Kg |
|
Heater (L x W x H) |
187x63x145cm |
|
Heater weight |
250Kg |
|
Power |
17.5kw |
|
CM-8Y heat resistant semiautomatic bottle blowing moulding machine is suitable for producing any shapes of PET containers and volume is from 10ml to 2000ml , it is widely used to produce mineral water bottles ,carbonated beverage bottles ,cosmetic bottles ,oil bottles etc.
Adopting double carnk connecting bar clamping and clamping mould is stable and fast
Adopt for infra-red rotary oven and heated equally.PET bottle blowing machine
1.The air system has been divided into two parts , pneumatic action part and bottle blow part to meet the different requirements for the pressure of action and blow , it can provide sufficient and steady high pressure for blowing large irregular shaped bottles
2.The machine is also equipped with muffler and different parts of refueling system
3.The machine can be operated in step by step mode and the semi-auto mode
4.The machine is small with low investment ,it is easy and safe to be operated by one person.
