PET Blowing Bottle Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PET	Blow Moulding Type	Other, Injection Blow Moulding, Stretch Blow Moulding
Automatic	Yes	Place of Origin	Jiangsu, China
Brand Name	WINMARK	Model Number	CY-BM
Voltage	220v-415v	Power(W)	By Order
Dimension(LWH)	By Order	Weight	By Order
Certification	ISO,CE,BV	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

PET Blowing Bottle Machine
1.FESTO Pneumatic Parts
2.Mittisubushi PLC
3.OMRON Electrical Parts
4.Economical Style

PET Blowing Bottle Machine

CY-D series full-automatic pet bottle blow molding machine is the most stable two-step automatic stretch blow molding machine. It has one to four cavities and the maximum size of the bottles is 2L, and the maximum capacity is 3800pcs per hour. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.

Technical parameters

TYPE	ITEM	CY-D2-1.5	CY-D2-2	CY-D3	CY-D4
CONTAINER	Number of cavity	2 cavities	2 cavities	3 cavities	4 cavities
	Theoretical output	1800-2500 pcs/hr	1700-2400 pcs/hr	2400-3200 pcs/hr	2800-3800 pcs/hr
	ntainer volume	1.5L	2.0L	1.5L	1.5L
	Max.neck diameter	38mm	38mm	38mm	38mm
	ntainer diameter	90mm	105mm	90mm	105mm
	ntainer height	330mm	330mm	330mm	330mm
ELECTRICAL SYSTEM	Number of lamp	32pcs	32pcs	40 pcs	52 pcs
	Max.heating power	48kw	48kw	60kw	78kw
	Installation power	51kw	51kw	63kw	63kw
	Actual power consumption	16kw	16kw	20kw	24kw
AIR SYSTEM	Operatating pressure	7kg/cm2	7kg/cm2	7kg/cm2	7kg/cm2
	Low pressure consuming	1100 Ltr/min	1100 Ltr/min	1400 Ltr/min	2000 Ltr/min
	Blowing pressure	≤40kg/cm2	≤40kg/cm2	≤40kg/cm2	≤40kg/cm2
	High pressure consuming	2000-2500Ltr/min	2000-2500Ltr/min	2000-3000Ltr/min	3000-3500Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm2	5-6 kg/cm2	5-6 kg/cm2	5-6 kg/cm2
	Temperatuer	10°C	10°C	10°C	10°C
	Consuming	5600kcal/hr	5600kcal/hr	7600kcal/hr	7600kcal/hr
	Flow rater	30Ltr/min	30Ltr/min	45Ltr/min	45Ltr/min
MACHINE	Machine dimension	3.0×1.7×2.0	3.0×1.7×2.0	3.0×1.7×2.0	2.1×1.9×2.0
MACHINE	Machine weight	2.5ton	2.8ton	3.0ton	3.2ton

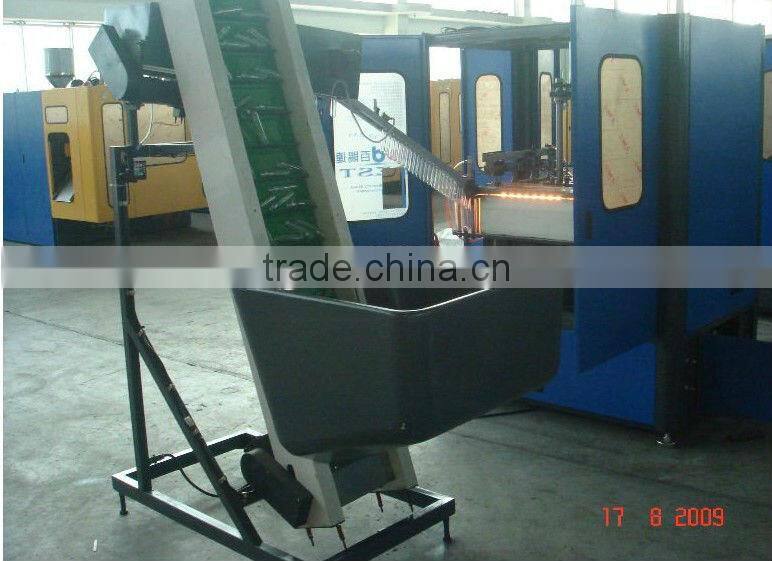

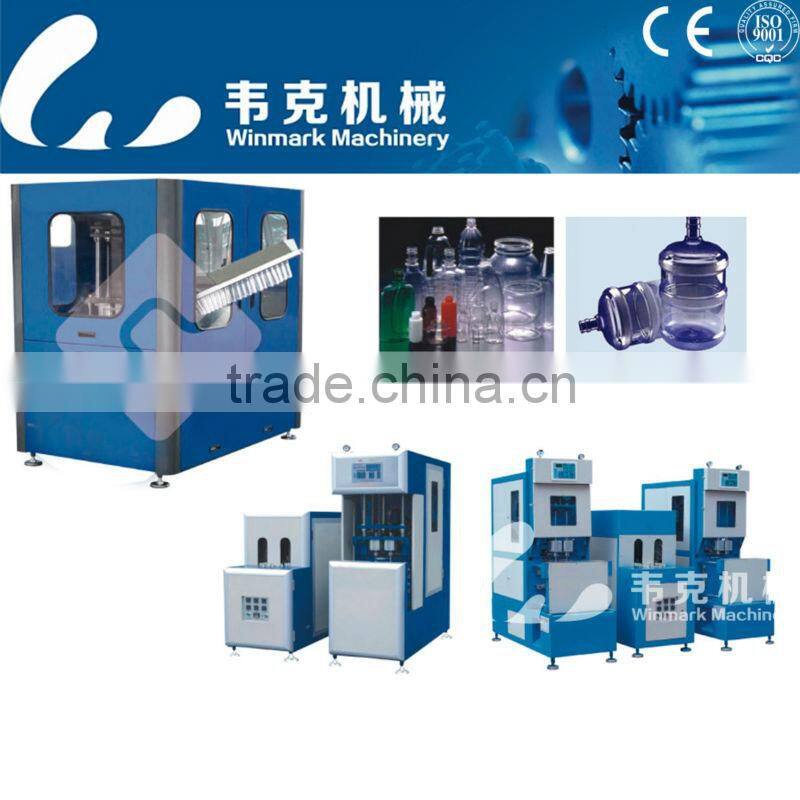

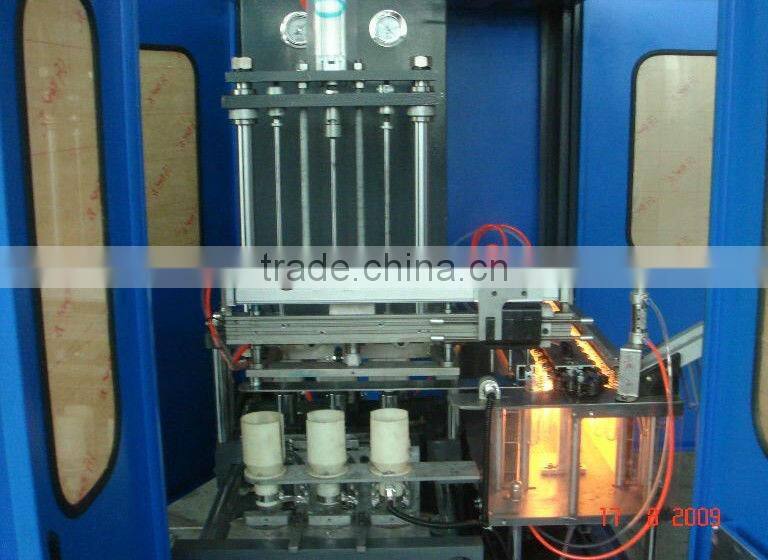

Product Pictures

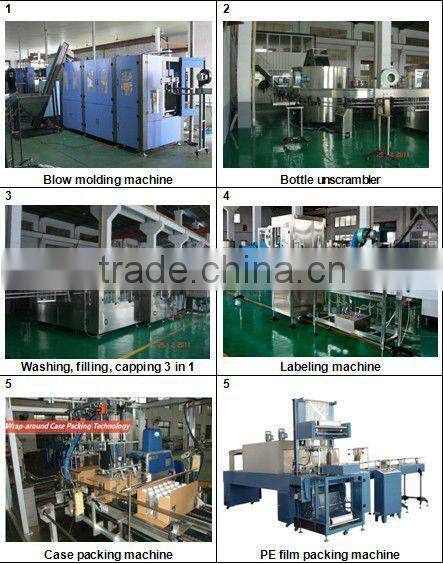

Other Optional Products

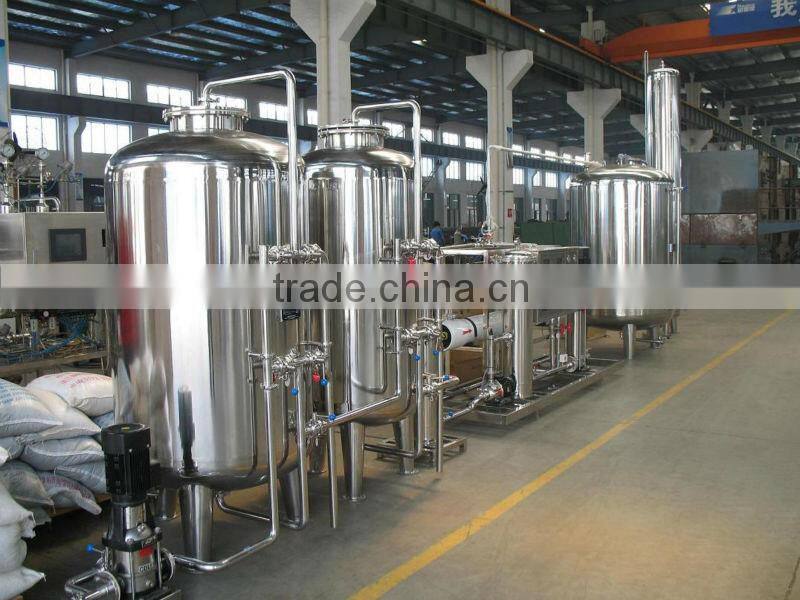

Water Treatment System

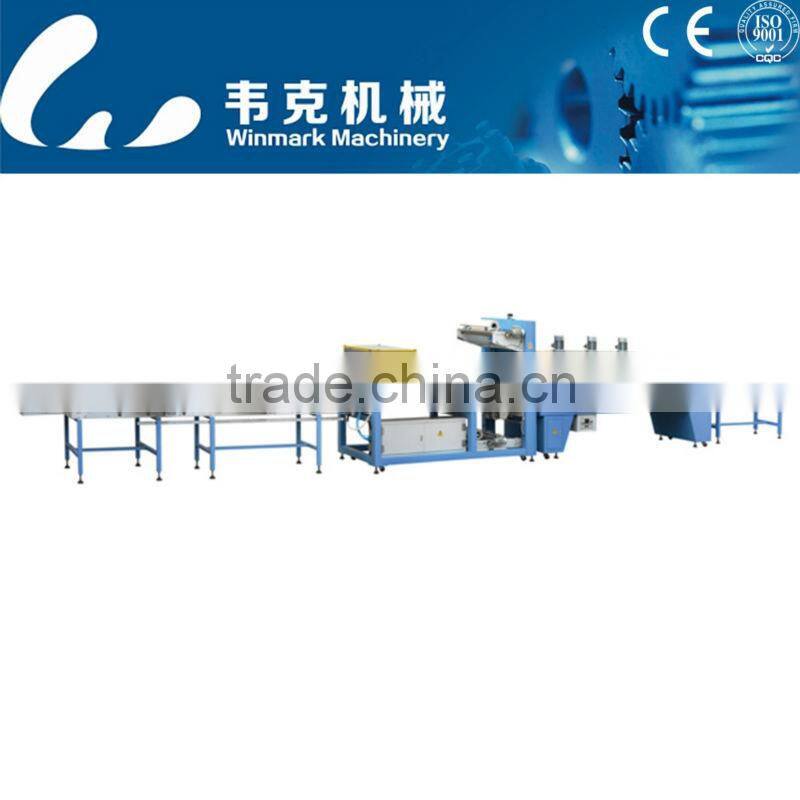

Packing Machine

Factory Shows

Packing Details
