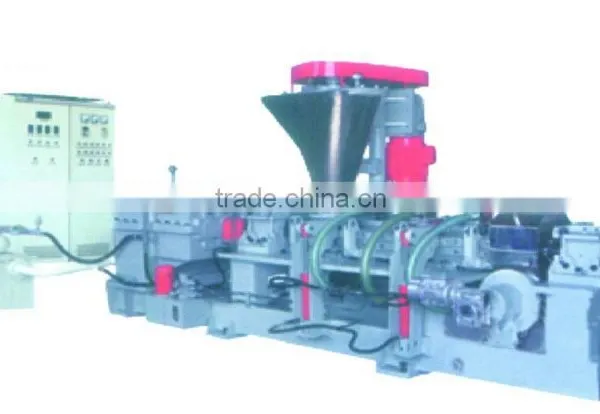

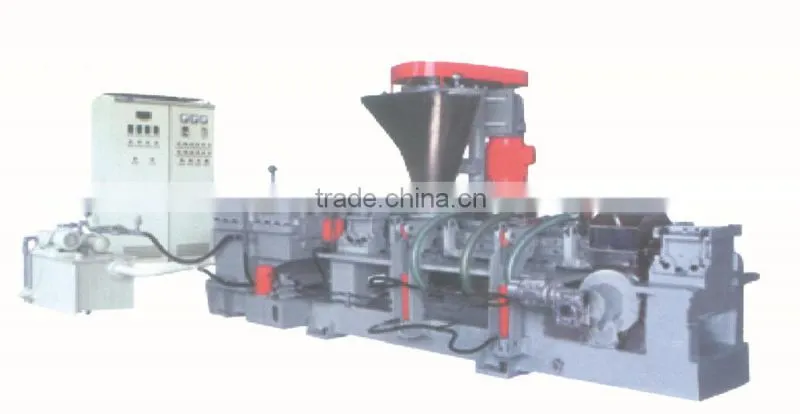

Screw Refiner
Twin screw pulping machine (referred to as foreig BIVIS machine) using extrusion mechnanical pulping, the use of two parallel, combined spiral roller rotates in the same direction and are engaged with each other, so thatthe processing of pulp fiber by extrusion and grnding, fiber reiforced by the treatent, s as to realize the separation of fiber, brush , wire. Complete the grinding efferct. At the same time and efficient hybrid, dehydration, bleaching, washing and other functions.
| Model | Dia. of screw(mm) | Screw speed(rmp) | Power of motor(kw) | Shrot woolen bieaching pulp | Wooden chip or bamboo chip chemical pulp | Cotton wheat mechanical pulp | Chemical slog pulp | Waste paper |
| XSGM80 | 80 | 360 | 75 | 3 | 4-8 | 5-10 | 6-10 | 8-10 |
| XSGM120 | 120 | 360 | 185 | 10 | 15-30 | 10-20 | 10-20 | 10-20 |
| XSGM160 | 160 | 360 | 280 | 15 | 20-40 | 20-40 | 20-40 | 20-40 |
| XSGM185 | 185 | 360 | 315 | 18 | 50-80 | 40-60 | 40-60 | 40-60 |
| XSGM200 | 200 | 320 | 400 | 20 | 60-80 | 60-80 | 60-80 | 60-80 |
| XSGM240 | 240 | 320 | 750 | 25 | 80-100 | 80-100 | 80-100 | 80-100 |
| XSGM300 | 300 | 320 | 1250 | 40 | 120-300 | 100-200 | 100-200 | 80-200 |
| XSGM400 | 400 | 320 | 1800 | 60 | 150-400 | 150-250 | 150-250 | 150-300 |
Friends paper making machinery equipment Co.,Ltd is a high-tech enterprise of a research and development,manufacturing,technical services in one,the company passed the ISO9001 quality management system certification in 2009.The company mainly produces pulping equipment,paper making equipment,clean pulping equipment and environmental protection equipment four categories,more than 60 series and more than 200 kinds of products,sixteen kinds of products obtained national patent.
Companies adhere to the “industrial science and technology innovation as the driving force,and constantly develop new products to energy saving and high efficiency,high technology and services to customers,with superior product quality to win the trust of customers.Friends has the right to import and export,the products are sold through out the country and exported to Vietnam,Thailand,India,Indonesia,South Africa,Syria,USA,Middle East,Russia and other countries,in the international market has formed a good corporate image and product brand.
Sustainable development of an enterprise depends on the brand,the effective maintenance and continuation of business.Unified,strong and Implicit profound brand culture,is the foundation and the power enterprises’ growth.There is no culture,enterprises can only stop stay in the shallow level of penny earn,never popular.Erect a banner to the enterprise culture.Pointed out the direction,highlight the core with goal of strengthening the management of Enterprises,from building the unique spirit of enterprise system start.
Companies adhere to the “industrial science and technology innovation as the driving force,and constantly develop new products to energy saving and high efficiency,high technology and services to customers,with superior product quality to win the trust of customers.Friends has the right to import and export,the products are sold through out the country and exported to Vietnam,Thailand,India,Indonesia,South Africa,Syria,USA,Middle East,Russia and other countries,in the international market has formed a good corporate image and product brand.
Turn-key engineering service
Complete project design
Lubrication system & Hydraulic system
Stock preparation system design
QCS system & Steam condensate system
Approach system design
Automation control system(MSC)
Vacuum system
Spare parts
Rolls
DST doctor & DST double doctor
Gear box & Drive gear
Various kinds of stretcher & Corrector
Drive shaft & Universal joint couplings
Paper machine designing & manufacturing
Paper machine remodification & boost
Paper machine erection & test-run
Paper machine ventilation system design &manufacturing
Rewinder supplies
Complete paper machine & equip spare parts supplies
