School Exercise Book /Writing Paper Making Machine From FRDS

School Exercise Book /Writing Paper Making Machine From FRDS photo-1
School Exercise Book /Writing Paper Making Machine From FRDS photo-2

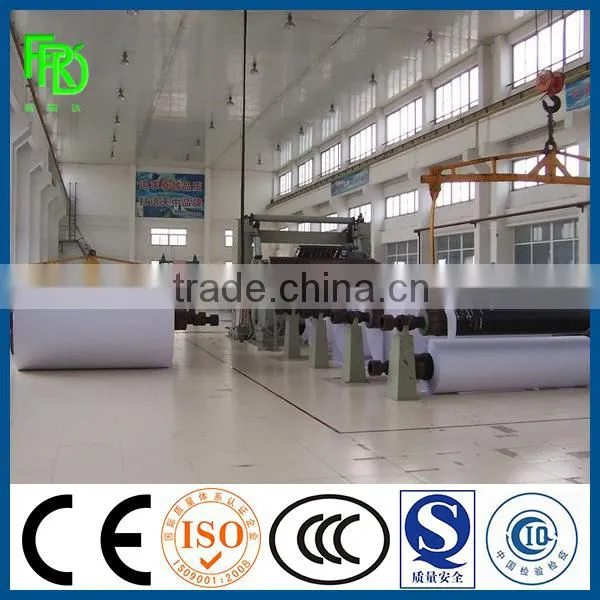

School Exercise Book /Writing Paper Making Machine From FRDS photo-3

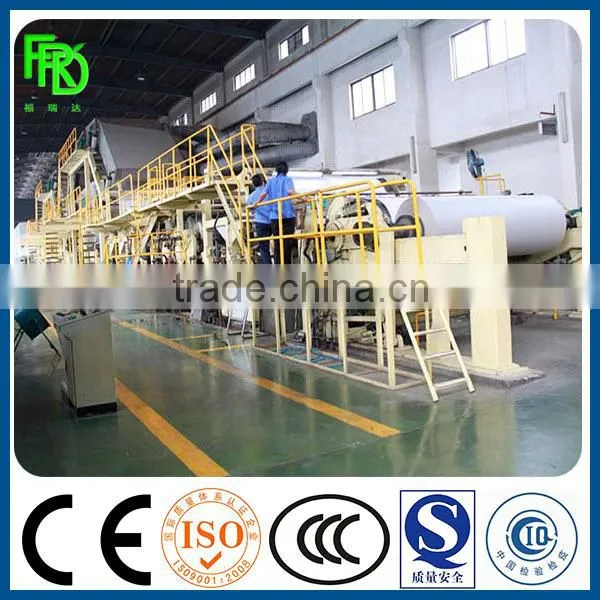

School Exercise Book /Writing Paper Making Machine From FRDS photo-4

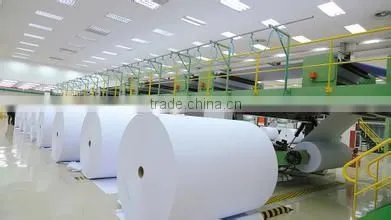

School Exercise Book /Writing Paper Making Machine From FRDS photo-5

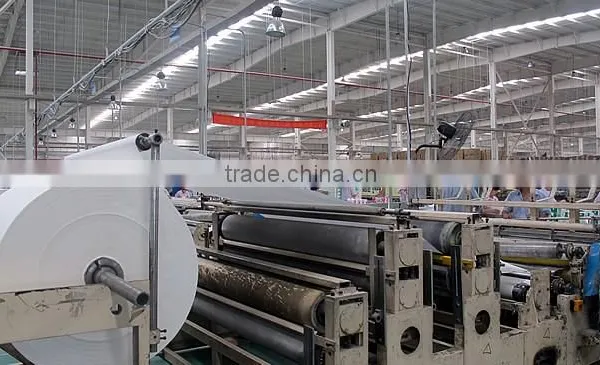

School Exercise Book /Writing Paper Making Machine From FRDS photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, culture paper
Processing Type:
Other, Writing paper machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, culture paper
Processing Type Other, Writing paper machine
Place of Origin Henan, China
Brand Name FRD
Model Number 1880mm
Voltage 380V 3 Phase
Dimension(L*W*H) 13.5m*4.5m*5.5m
Weight 15,000kg
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

School Exercise Book /Writing Paper Making Machine from FRDS

Ⅰ、Technical parameter

Raw material: Waste paper (waste office paper/book paper/newspaper/magazine)
Out paper:Culture paper, printing paper, writing paper
Capacity:20 T/D
Output paper weight: 50-80g/m2
Trimmed width: 1880mm
Width of wire: 2250mm
Rail gauge: 2700 mm
Drive way: Motors with AC frequency converter & adjustable speed. Processing transmission

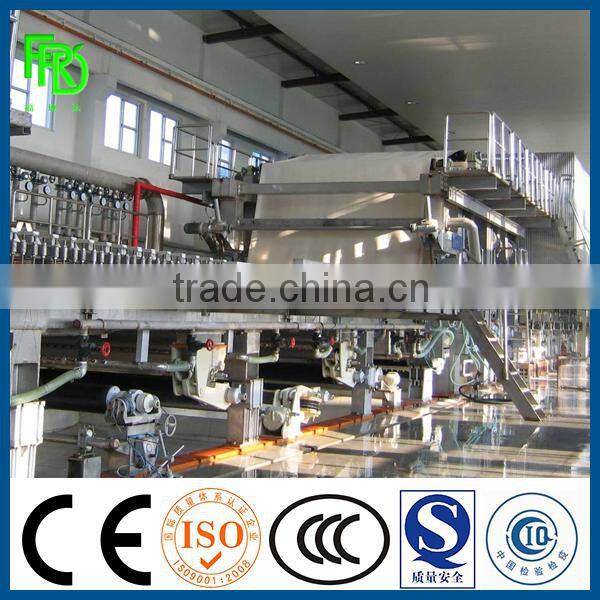

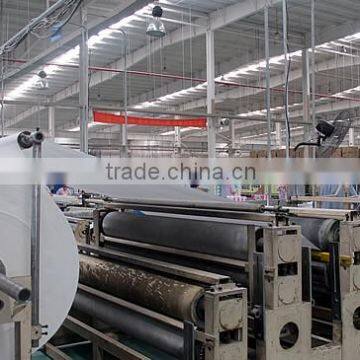

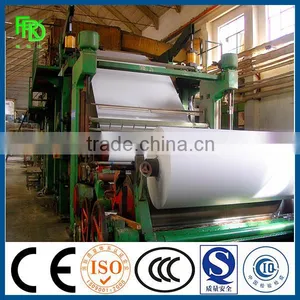

Ⅱ、Paper machine part

1. Cylinder part: Ø1500mm ×2250mm x 2700mm stainless steel cylinder mould 2pcs, Ø400mm × 2250mm x 2700mm couch roller 2pcs, 1 pc of Ø400mm × 2250mm x 2700mm reverse roller, rubber hardness HSD 38°±2.
2. Pre-press part: Ø400mm x 2250mm x 2700mm rubber roll 1 pc, Ø450mm x 2250mm x 2700mm stone roll 1 pc.
3. Main press part: Ø550mm x 2250mm x 2700mm stone roll 1 pc,Ø500mm x 2250mm x 2700mm rubber roll 1 pc.
4. Dryer part: Ø1500mm x 2250mm x 2700mm alloy dryer can 10pcs
5. Calender machine: 1 set, bottom roller: Ø400mm x 2250mm x 2700mm, upper roller:Ø380mm x 2250mm x 2700mm
6. Reeling machine: 1 set
7. Driving & control part: Equipped with 500 reducer, Motors with AC frequency convertor & adjustable speed, processing transmission.

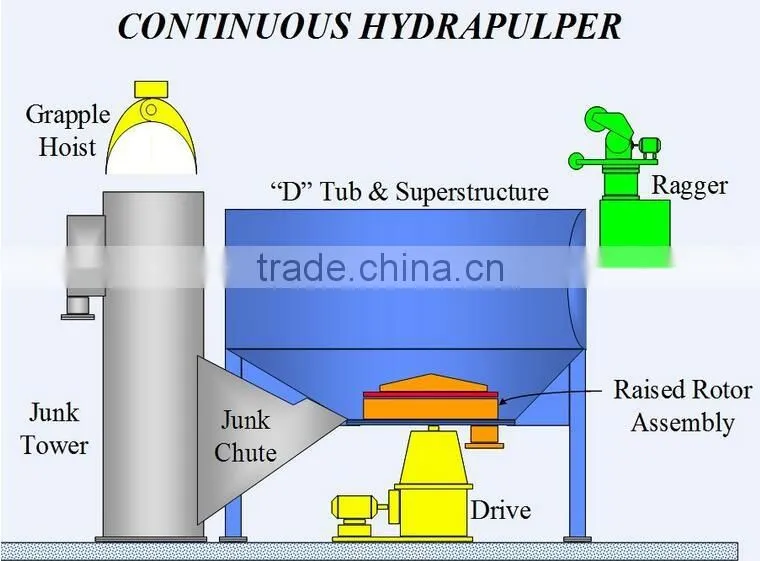

III. pulp making line


IV. Hot water recycling system


V. Waste water recycling system.


VI. Boiler

Raw material

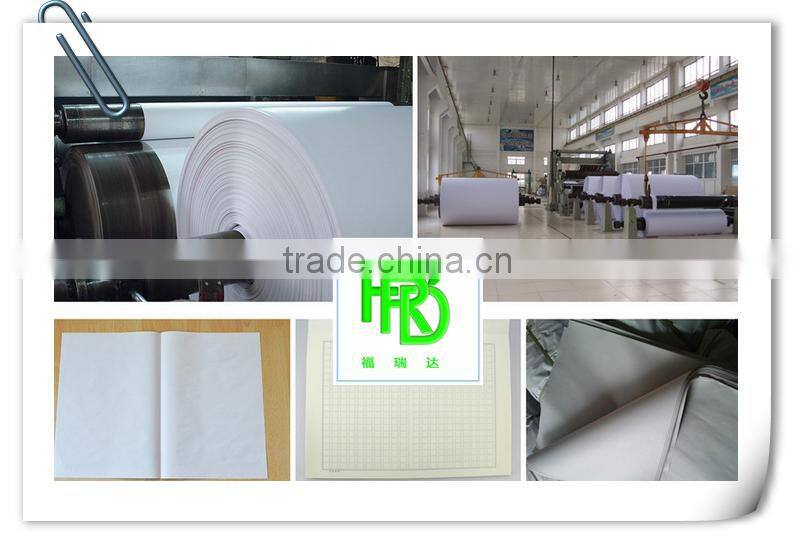

Finished product

Packing & Delivery
Our Advantages

1. Competitive price

2. 30 years’ professional experience in design and manufacturing of paper making machines

3. Advanced technology and state of art design, stringent testing and quality inspection process

4. Extensive experience in overseas projects, including plant design, installation, test run, staff training, production and maintenance consultation

5. Extensive experience in products customization to meet client’s special requirements

FAQ

Q1

What kind of paper machine your factory produce?

a.Toilet Paper Machine which can produce toilet paper, tissue paper jumbo roll
b.Culture paper machine which can produce white paper jumbo roll, include A4,A3 paper,copy paper,printing paper,newspaper,offset paper etc.
c.Kraft paper machine which can produce carton box paper,corrugated paper,craft paper,carton board paper etc.

Q2

Can you make paper mill design for us?

Yes, We have a professional technical team and installation team with more than 30years experience.

Q3

How about your machine’s quality?

We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in many countries. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time.

Q4

What should I have to know if I want to get the quotation?

a.The raw material you will use(main important)
b.The capacity per day(main important)
c.The paper weight you require.
d.The paper trimmed width you require.

Q5

Could your engineer can teach and train our workers and stay in our factory for long time?

Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.
