A4 Paper Recycling Machine to Make Newsprint Paper From Friends Machinery

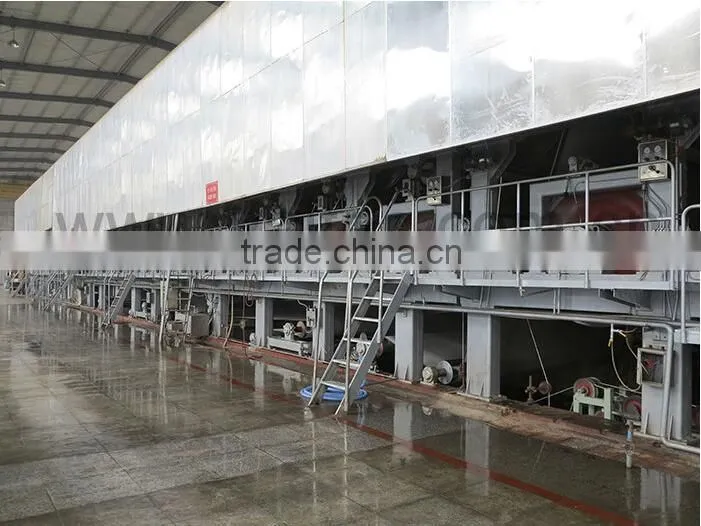

A4 Paper Recycling Machine to Make Newsprint Paper From Friends Machinery photo-1

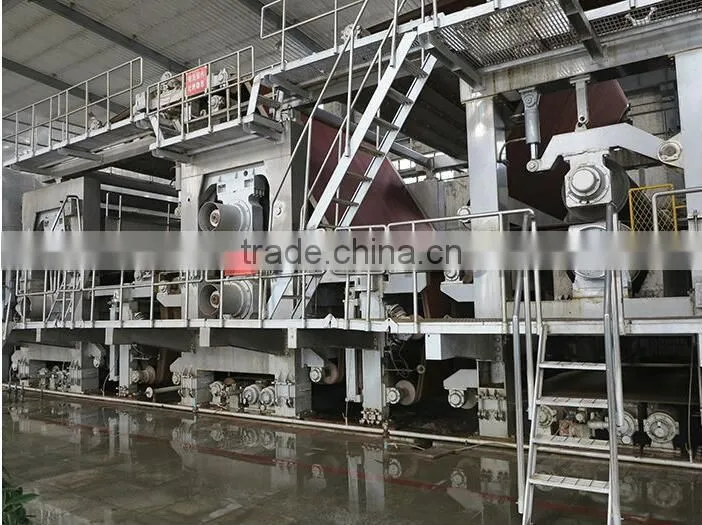

A4 Paper Recycling Machine to Make Newsprint Paper From Friends Machinery photo-2

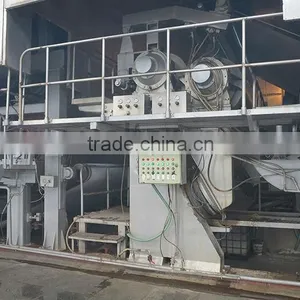

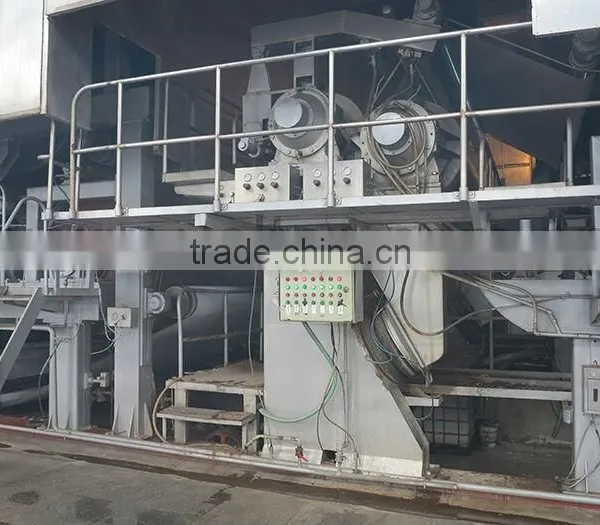

A4 Paper Recycling Machine to Make Newsprint Paper From Friends Machinery photo-3

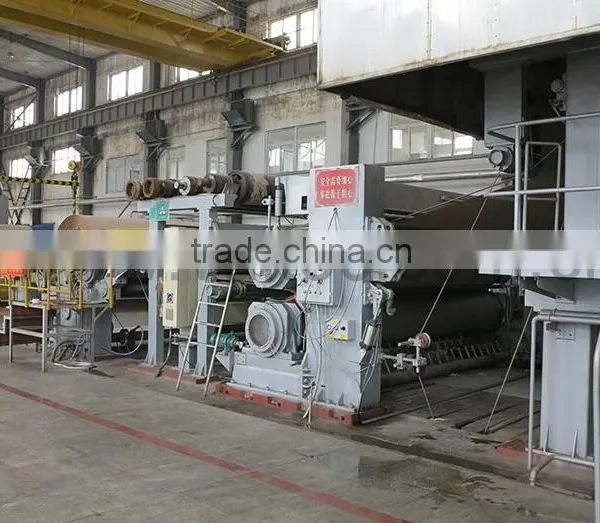

A4 Paper Recycling Machine to Make Newsprint Paper From Friends Machinery photo-4
A4 Paper Recycling Machine to Make Newsprint Paper From Friends Machinery photo-5

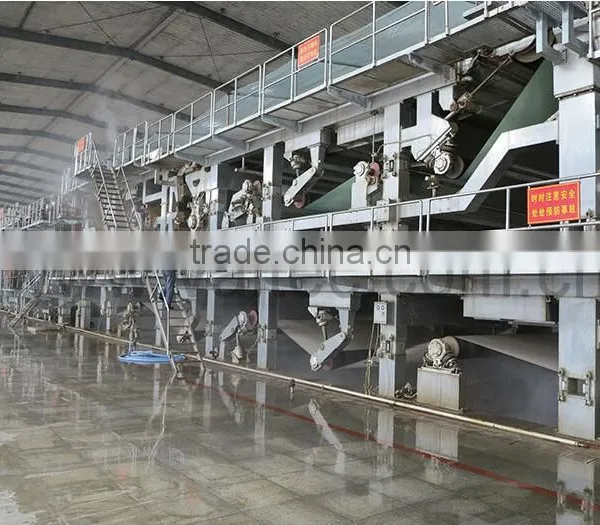

A4 Paper Recycling Machine to Make Newsprint Paper From Friends Machinery photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, culture paper
Processing Type:
Other, culture paper machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, culture paper
Processing Type Other, culture paper machine
Place of Origin Henan, China
Brand Name FRD
Model Number 1800mm
Voltage 380V/400v
Power(W) 500kw
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

A4 paper recycling machine to make newsprint paper from Friends Machinery

1.The A4 paper recycling machine to make newsprint paper from Friends Machinery is designed for high quality culture paper making. Its main paper products is A4 copy paper, writing and printing paper.

2. Our this machine adopts first grade auxiliries and most advanced technics in China. Paper from it is in high grade, smooth and well selling. We can provide whole A4/ copy paper production line , including pulp &paper making equipment and paper machine spare parts. All the equipment have international certifications.

1. Paper product: A4 paper / copy paper/ writing and printing paper

2. Grammage: 50-400g/m2

3. Paper width: 1800mm

4. Rail distance: 2800mm

5. Working speed: 40-80m/min

6. Designed speed: 120m/min

7. Nominal capacity: 20t/d

8. Transmission: Alternating current frequency conversion fractional drive.

9. Equipment of paper machine

Back part----five fourdrinier part----two main press part----10 diameter 1500mm dryer cylinders----sizing machine----4 diameter 1500mm dryercylinders ---- Calender ---- winding machine----(left and right machines decided by the customers)

Description of main structure

1. Wire section
It consists of flow part, forming section. Round cylinder mould, couch and evening device and so on form the flow and forming section.

2. Press section
This section has three main press.Pneumatic tyre pressure main press section. Press felt are
equipped with corrector, tensioner.

3. Drying section
In order to guarantee the drying capacity of the drying part. This paper machine has 3 groups 1500mm and they are divided into 4+6+4. Every dry fabric is equipped with pneumatic correcto-r and electric tensioner. The drying part drive is open gear, bearings of dry cylinder are rolling bearings.

4. Driving section
The total installed capacity of this machine is 223kw.

5. Foundation part
The foundation part of this machine include foundation plate, anchor bolt, iron pad on paper machine foundation drawing. Foundation plate indicates all kinds of bottom rail, guide rail, foundation base and so on of the paper machine. The material is cast iron that undergoes the artificial aging treatment and finish machining. The thickness of the foundation plate is about 85mm, the width of the dry part is 270mm, the width of the press section is about 300mm, the width of the fourdrinier part is about 230mm.

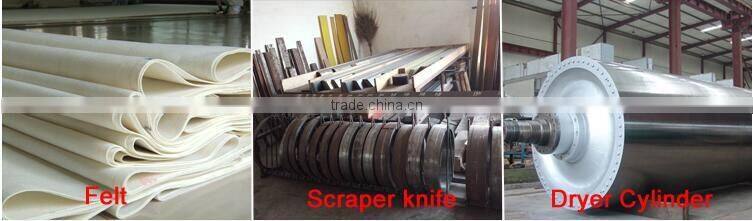

Other parts

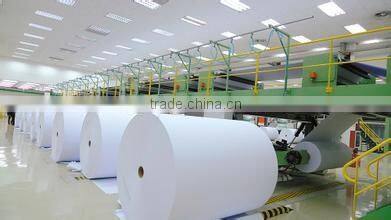

Paper jumbo roll from this paper machine

Our Service

♥ We provide technology consultation

♥ We provide project evaluation

♥ We provide details design of factory

♥ We provide installing and testing the whole production line

♥ We supply spare part for long time

Our Company

Papermaking equipment selection Chinese, Chinese papermaking equipment is the first Qinyang Friends. Qinyang City Friends Machinery Equipment Co., Ltd. is specializing in the production of pulp and paper series of complete set of equipment, set research and development, production and sales as one of the modern enterprise.

Friends machinery with advanced modern management system, Seiko produced, independent innovation, collected and created a large number of technical backbone and management elites, all products were certified by CE, enterprise products continuously updating, with exquisite craft, advanced papermaking technology, strict quality, excellent performance of renowned at home and outside, and in a few years like a day of sincerity has been widely recognized by customers. Products sold throughout the country, exported to Southeast Asia, the Middle East, Russia, Mongolia. Jordan. Indonesia, Bangladesh and other regions.

The company has first-class sales and technical service team, according to customer needs to provide project design, process design and technical training, etc.. A pre-sale, sale, the after-sales tracking service, fully eliminate the worries of the majority of customers.
