FRD 1880mm Kraft Paper Making Machine

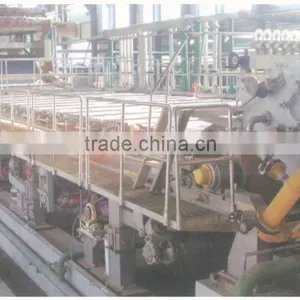

FRD 1880mm Kraft Paper Making Machine photo-1

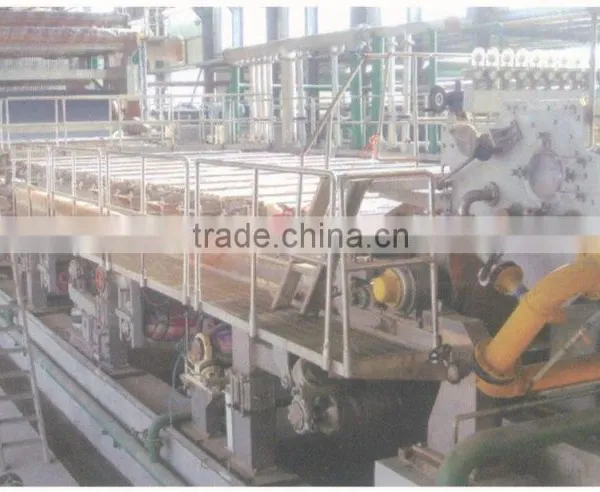

FRD 1880mm Kraft Paper Making Machine photo-2
FRD 1880mm Kraft Paper Making Machine photo-3
FRD 1880mm Kraft Paper Making Machine photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, kraft paper machine
Processing Type:
Other, paper sliting and rewinding machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, kraft paper machine
Processing Type Other, paper sliting and rewinding machine
Place of Origin Henan, China
Brand Name FRD
Voltage 220V/380V
Power(W) 200-400kw
Dimension(L*W*H) 2950*1320*1500mm
Weight 3.5-4.5t
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description



Technical parameter

1.Raw material: waste paper,straw, cotton straw, sugar cane bagasse

2.Output paper: kraft paper, corrugated paper, fluting paper, carton paper

3.Net paper width: 1880mm

4.Capacity: 15-20t/d

5.Working speed: 25-50m/min

6.Rail gague: 2900mm

7.Drive way: AC inverter,adjustable speed, processing transmission



Main frame of the equipment

1.Cylinder section: φ 1500mm×2300mm stainless steel cylinder mould 3 sets, φ 450mm×2300mm

couch roll 3 sets, φ400×2300mmreverse roll 1set, coated by rubber, rubber shore hardness 38°C±2.

2. Press section: φ 500mm×2300mm marble roll 1 set, φ 450mm×2300mm rubber roll 1 set,

coated by rubber,rubber shore hardness 90°C±2. Pneumatic compression device, allocating a group

of scraper.

3. Dryer section: Φ2500mm×2300mm dryer can 2 set, φ 1500mm×2300mmdryer can 6 sets,

500mm×2300mm touch roll 1 set, φ 450mm×2300mmdouble-dryer cans fly roll 1 set, allocating two

scrapers and setting the dried wire device od double-dryer can. Pneumatic compression device,

coated by rubber,rubber shore hardness 90°C±2.

4. Winding section: 1880mm cylindrical winding machine 1 set.

5.Drive way: AC inverter speed, section drive.

Company Information



Qinyang City Friends Machinery Equipment Co.,Ltd located in Qinyang City, Henan province, China, is one of leading paper machine manufacture,which specializes in pulp making machine, paper making machine and paper processing machine manufacturing.



Qinyang City Friends Machinery Equipment Co.,Ltd located in Qinyang City, Henan province, China, is one of leading paper machine manufacture,which specializes in pulp making machine, paper making machine and paper processing machine manufacturing.FRD 1880mm Kraft paper making machineFRD 1880mm Kraft paper making machineFRD 1880mm Kraft paper making machineFRD 1880mm Kraft paper making machine
