1575mm Corrugated Paper Making Machine From FRD

Technical parameter:

1.Raw material:waste paper, occ,virgin pulp;

2.Output paper style: corrugated paper, fluting paper, kraft paper;

3.Output paper weight:100-180g/m2;

paper width: 1600mm;

5.Capacity:8-10T/D;

6.Width of cylinder mould:1950 mm;

7.Rail gauge:2400 mm;

8.Drive way:AC inverter speed, section drive;

 Main structure

1.Cylinder section: Φ1500mm×1950mm stainless steel cylinder mould 2 sets, Φ450mm×1950mm couch roll 2 set, φ400×1950mm reverse roll 1set, coated by rubber,rubber shore hardness 38°C±2.

2.Press section: Φ500mm×1950mm marble roll 1 set, Φ450mm×1950mm rubber roll 1 set, coated by rubber,rubber shore hardness 90°C±2.

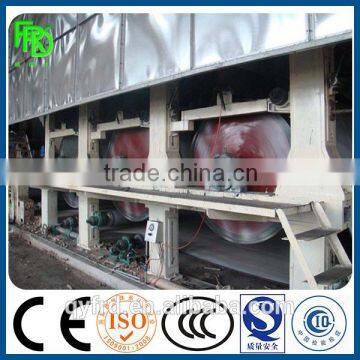

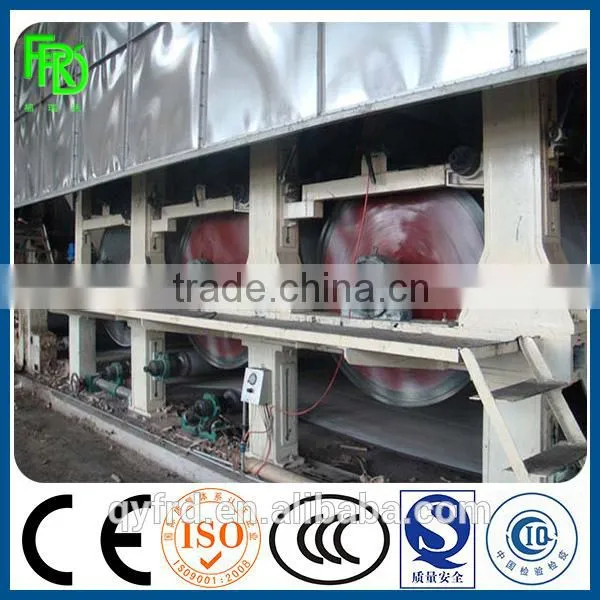

3.Dryer section: Φ2500mm×1950mm cast iron dryer can 2 set,Φ500mm×1950mm touch roll 1 set,coated by rubber,

rubber shore hardness 90°C±2.

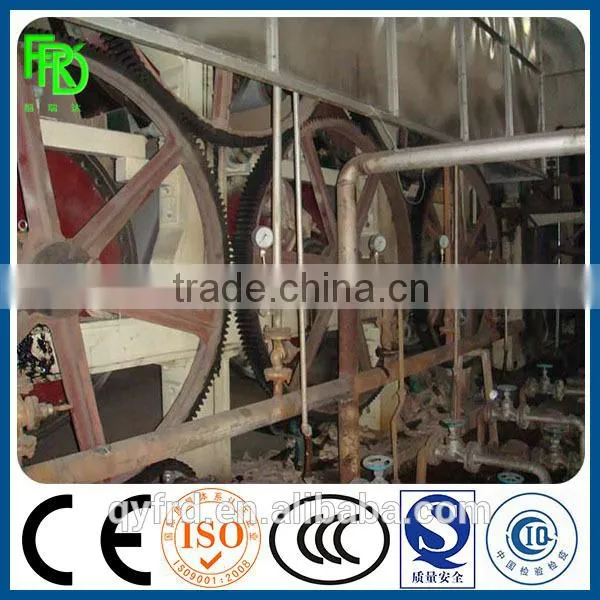

4.Drive way: AC inverter speed, section drive.

5.Pneumatic compression device.

Qinyang City Friends Machinery Equipment Co.,Ltd located in Qinyang City, Henan province, China, is one of leading paper machine manufacture,which specializes in pulp making machine, paper making machine and paper processing machine manufacturing.

Our company has perfect service system. We have engineer team with rich practice experience, who can supply professional service during the whole deal, including technbology consultation, design factory, project evaluation, detailed design of factory, installation and testing the whole production line, training engineers and workers.
