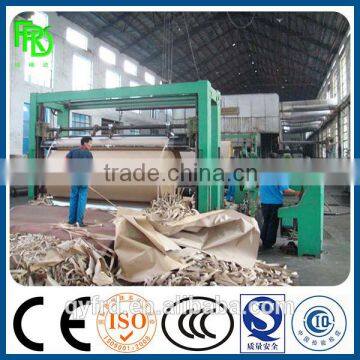

3200mm corrugated paper machine
Technical paramenter:
1. Raw material: recycle paper;
2. Paper grade:Corrugated paper
3. Weight of paper:100-250gm2;
4. Net paper width:3200mm;
5. Width of cylinder mould:3750mm;
6. Rail gauge:4300mm;
7.Working speed:80-150mmin;
8.Capacity :30-35TD;
9. Drive way: AC inverter speed,section drive
The main structure of equipment:
1.Cylinder section:Φ1500×3750mm cylinder mould 2 pcs, Φ500×3750mm couch roll 3pcs(including round roller 1pcs);they are coated by rubber,rubber hardness shore 38±2.
2.Press section: Φ800×3750mm natural marble roller 1 pcs, Φ750×3750mm rubber roll 1pcs,rubber hardness shore 90±2,pneumatic pressure device.
3.Dryer section: Φ2500×3750mm alloy dryer 2pcs, Φ750×3750mm roller 1pcs, rubber hardness shore 90±2, pneumatic pressure device;2nd dryer sectionΦ500×3750mm opposite pressing roll 1 pcs, it is coated by rubber,rubber hardness shore 90±2,2nd dryer section dry wire device.
4.Drive and controlling section:Mode-650 speed reducer 1 set,Model-500 speed reducer 2set,adopt alternating current inverter ,closed digital signal control system.
Qinyang City Friends Machinery Equipment Co.,Ltd located in Qinyang City, Henan province, China, is one of leading paper machine manufacture,which specializes in pulp making machine, paper making machine and paper processing machine manufacturing.
Our company has perfect service system. We have engineer team with rich practice experience, who can supply professional service during the whole deal, including technbology consultation, design factory, project evaluation, detailed design of factory, installation and testing the whole production line, training engineers and workers.
