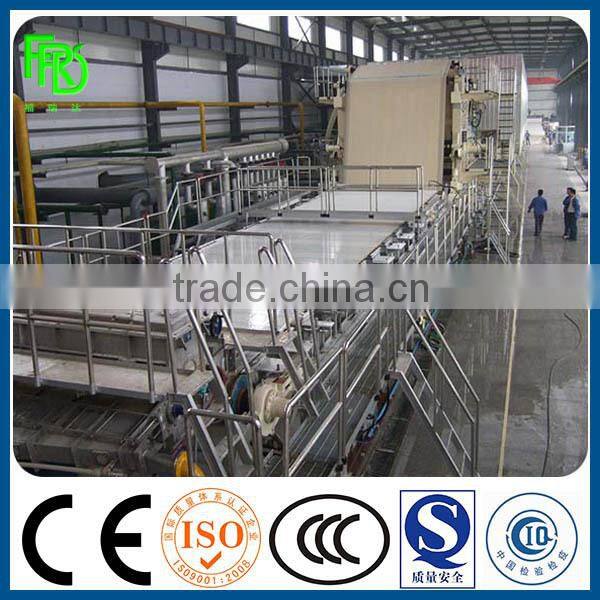

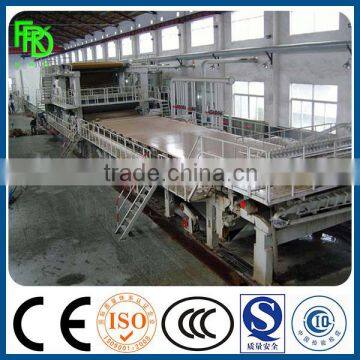

3200mm capacity 40-50T/D fourdrinier paper machine for Kraft paper and corrugated paper

3200mm capacity 40-50T/D fourdrinier paper machine for Kraft paper

and corrugated paper

Main parameter

1. Paper type: fluting paper and Kraft paper

2. Basis weight: 60-200g/m2

3. Trimmed paper width: 1575mm (1600mm)

4. Production capacity: 10-15t/d

5. Working speed: 40-60m/min

6. Design speed: 80m/min

7. Dynamic balanced speed: 200m/min

8. Mold width: 2000mm

9. Gauge: 2400mm

10. Drive way: sectional drive with complete digital AC frequency conversion and speed regulation

11. Machine layout: single layer, right hand machine

12. Pulp material: recycled waste paper

13. Paper dryness in different part of paper machine:

     1. Out of wire: 15%-18%

     2. Go into dryer: 38%

     3. Finished paper: 92%

14. Lateral shrinkage: ≤4%

15. Streamer moisture difference: ≤±0.8%

16. Air compressed pressure: ≤0.6mpa

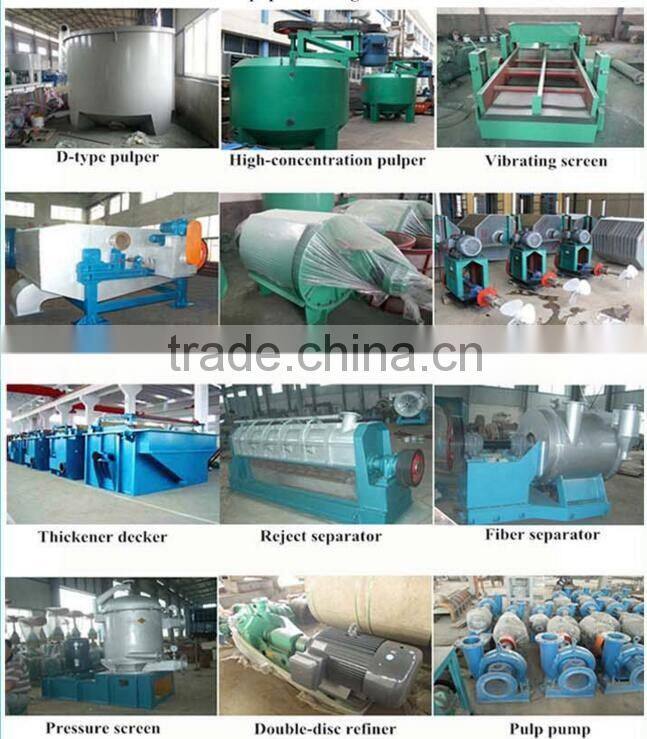

Different Raw material for pulp making

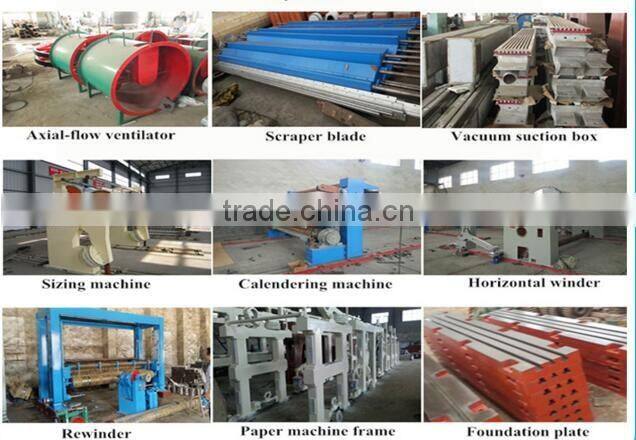

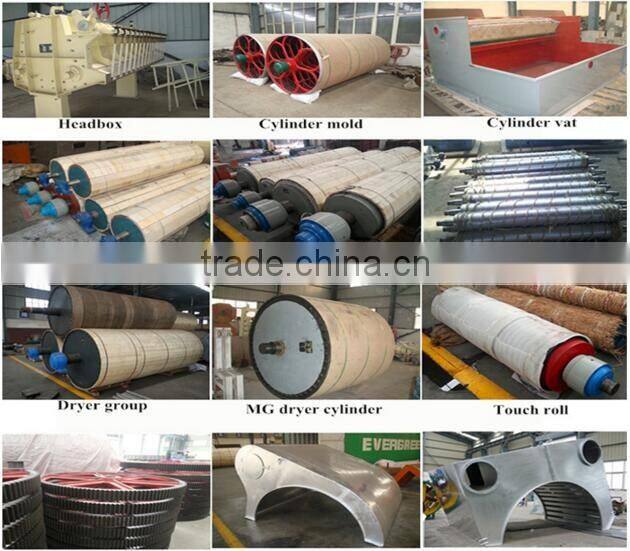

Machine component

Finished product

1.The dryer is packed with wood chips for protecting its surface

2. The large diameter roll is packed with wood chips.

3. The steel rolls are packed with plastic film and straw ropes

4. Speed reducer, oil station, and suction box, hydraulic station is packed with wooden box.

5. Electric control cabinet is packed with three-ply board box

6. Some parts are nude cargo

1. Can you design the production line for customer?

Yes, we have a professional team with rich experience of paper mill design by CAD software.

According to different paper(tissue paper,kraft paper,office A4 paper), different raw material(wood, waste paper, paper pulp), Our technicist and engineer will offer different design.

2.How to assure machine quality?

Xinghua Paper Machinery Factory is one paper machinery factory with more than 30 years manufacturing experience. We strictly manufacture and manage according to ISO9001:2000 System and match all the CE standard or stricter standard. Our guarantee period is 1 year. If there are any quality problems, We will repair or change for free.

3.What's necessary information for the paper making line?

♣What kind of paper you want to produce(Important) (such as toilet paper,kraft paper,A4)

♣What kind of raw material you will use(Important) (such as waste paper, rice straw etc)

♣The production capacity you want per day(Important)

♣The paper weight .

♣The paper width.

4.Why your price is so high, is there any discount?

The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly.

5. Will your company provide oversea install and worker training service?

Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.
