2100mm Kraft paper making machine,test liner paper machine
- 6 Set / Sets per Month
- Qingdao port China
- T/T L/C D/P D/A Credit Card PayPal
- 2400mm kraft paper making machine for paper packaging
- Mimi small capacity fluuting paper and kraft liner paper making machine
- Kraft liner mill paper high speed corrugate paper machine
- 1760mm 20-30T/D Multi-dryer and Multi-cylinder Cardboard Paper Making Machine
- CE 3200mm corrugated paper machine,carton recycled paper making machine
- 30t/d Corrugated paper machine kraft paper making machine for sale
Product Details
Condition: | New | Product Type: | Other, Kraft paper machine | Processing Type: | Other, Corrugated paper machine |
Place of Origin: | Henan, China | Brand Name: | FRD | Model Number: | 2100mm |
Voltage: | 380V 50HZ | Power(W): | 7.5KW | Dimension(L*W*H): | Depends |
Weight: | 3000kg | Certification: | CE | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |

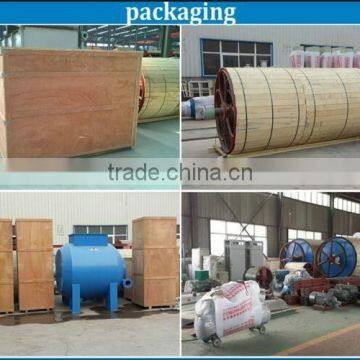

Packaging Details
Standard wooden package
Product Description
2100mm Kraft paper making machine,test liner paper machine
I.Brief Introduction
This production line can use Waste paper, wood pulp, bamboo, sugarcane bagasse, wheat straw,
stalk, reed, hemp, etc. as raw material to make high quality craft paper,finished product can be paper
roll ;It includes following section:
1.Pulp making production line;
2.Glue adding system ;
3.Paper making production line;
4.Paper converting section;
5.Boiler section ;
II. Technical parameter
1. Raw material: Waste paper, wood pulp, bamboo, sugarcane bagasse, wheat straw, stalk, reed,
hemp, etc.
2.output paper : kraft paper, fluting paper;
3. Capacity:40 ton per day;
paper width: 2100mm;
5.Output paper weight: 80-180g/m2;
6.Working speed:80-100 m/min;
7.Design speed: 120m/min;
8.Width of cylinder mould: 2450mm;
9.Rail gauge:2900mm;
10.Drive and control : Alternating current ,frequency conversion, speed control, section drive;
III. Main frame of equipments
1.Cylinder part:
Φ1500mm×2450mm×2900mm cylinder mould 2sets;Φ420mm×2450mm×2900mm couch roll 2sets;Φ420mm×2450mm×2900mm reverse roll 1 set; rubber Share hardness is 38°C±2, pneumatic pressure device.
2. Press part:
One pre-press:Φ600mm×2450mm×2900mm stone roll 1 set; Φ550mm×2450mm×2900mm rubber
roll 1 set;
One main press: Φ900mm×2450mm×2900mm stone roll 1set ;Φ850mm×2450mm×2900mm rubber roll 1 set;
3.Dryer part:
Φ1500mm×2450mm×2900mm cast iron dryer can 6 sets;
4.Calender part:
Three- roll calender 1set;
5. Paper processing part:
Winding machine 1 set, Rewinding and slitting machine 1 set.
6. Driving & control part:
AC frequency conversion speed, section drive.
Raw material
Finished products
Qinyang City Friends Machinery Equipment Co.,Ltd located in Qinyang City, Henan province, China, is one of leading paper machine manufacture,which specializes in pulp making machine, paper making machine and paper processing machine manufacturing.
Our company has perfect service system. We have engineer team with rich practice experience, who can supply professional service during the whole deal, including technbology consultation, design factory, project evaluation, detailed design of factory, installation and testing the whole production line, training engineers and workers.
Hello,this is Crystal!
If you are interested in our paper making machine or you want to know more about our products,please contact with me or by sending me email at any time.
We are willing to establish long-term relationship with new and old customers at home and aboard to achieve mutual benefit.It will be a great honour to serve for you.
Company Profile
Established in May 1988, is the production of pulp, paper, paper processing and sewage treatment professional equipment manufacturers, over the years to develop high-quality, high efficiency, energy saving, environmental protection and new products and services in the paper industry, scientific research production in one of the technology companies. Twenty years, the rapid development of enterprises, production capacity and production levels rising, widening the scale of production, has been awarded the contract and keep credibility of enterprises. Produced by the papermaking equipment selling more than 20 provinces and regions, and exported to Vietnam, Myanmar, Uzbekistan, Russia, Kyrgyzstan and other countries. By the user trust and praise.
