2400MM High Quality And Excellent Production Multi Cylinder Wire Kraft Paper Making Machine

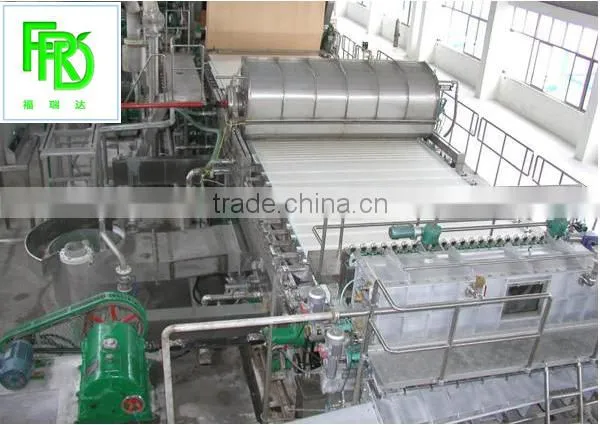

2400 multi-cylinder and long -mesh kraft paper machine
1. Output paper:Kraft paper, carton paper,
2. Raw material:waste paper
3. Capacity:30-40T/d
4. output paper weight:100-300g/m2
5. net paper width:2400mm
6.Drive way: Alternating current frequency conversion adjustable speed, sectional drive;

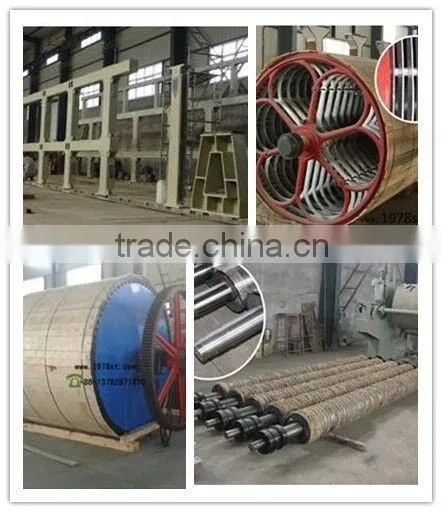

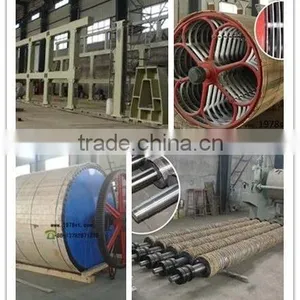

Main frames of the production line
1.Cylinder part:cylinder mold 3sets; couch roll 3sets;reverse roll 1 set; pneumatic pressure device.
2.Press part: stone roll 1 set ;rubber roll 1 set;
3.Dryer part:Dryer can 8 sets;pneumatic pressure device
4. winding part:Cylinder type winding machine 1 set, Rewinding machine 1 set.
Raw material

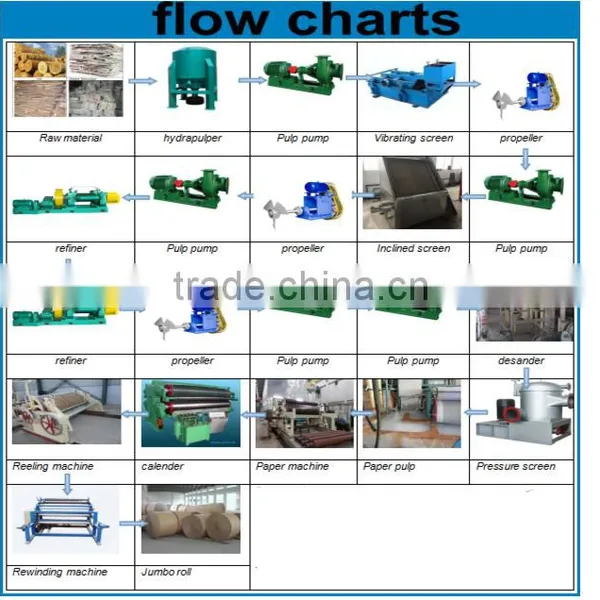

Flow chart : OCC, conveyor, hydra pulper , high density cleaner, reject separator, double disc refiner, fiber separator, pressure screen, decker thickener, low density cleaner, cylinder mold, dryer group, sizing machine,kraft paper machine, paper rewinder,finished kraft paper roll.
Final product: carton box, gift, envelope, file bag, hand bag, carton, paper tube, courier bags and so on.
1.we will be carefully packing, to make sure the machine can arrive your side safely and soundly.
2.we will put every parts for this pulp & paper production line carefully into the containers , then arrange ship or train to transport to your country.
3.Products will packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export package sea worthy wooden case, waterproof film, straw rope, carton box etc, which will ensure the intactness of the paper making machine.
Papermaking equipment selection Chinese, Chinese papermaking equipment is the first Qinyang Friends. Qinyang City Friends Machinery Equipment Co., Ltd. is specializing in the production of pulp and paper series of complete set of equipment, set research and development, production and sales as one of the modern enterprise.
Friends machinery with advanced modern management system, Seiko produced, independent innovation, collected and created a large number of technical backbone and management elites, all products were certified by CE, enterprise products continuously updating, with exquisite craft, advanced papermaking technology, strict quality, excellent performance of renowned at home and outside, and in a few years like a day of sincerity has been widely recognized by customers.
The company has first-class sales and technical service team, according to customer needs to provide project design, process design and technical training, etc.. A pre-sale, sale, the after-sales tracking service, fully eliminate the worries of the majority of customers.
Pulp Equipment
1.How long it will take to get the quotation?
we usually give reply within 24hours after getting your inquiry.
2.Can you make paper mill design for us?
Yes,we have professional team with rich experience of paper mill design by CAD software.you only need to tell us your open land dimension,we will make your future paper mill design.
3.How about your machine quality,we are worry about the quality
FRD is a mature brand in China,more than 30 years manufacuturing experience of different kinds of paper machines.We strictly manufacture and manage according to IOS9001:2008 System.and can match all the CE standard or more strict standard.
4.How we visit your factory and what will be the procedure?
Our company located in Qinyang city, Henan province. we will pick you up from airport as well as the train station in Zhengzhou city.we will take you to see our machine running in our Chinese clients' paper mill.welcome you and your team to visit us at any time!
5.Could your engineer teach and train our worker and stay in our factory for long time?
Yes,we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
♥ If you have any more question pls send email to me right now, We will appreciate it if you could provide more details about your machine.
