Specifications
stainless steel bag filter housingSS304 or SS316
single or multi bag
polished inside and outside
good price quick delivery
stainless steel bag filter housing
Introduction

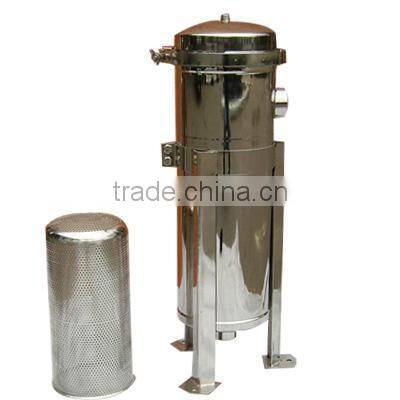

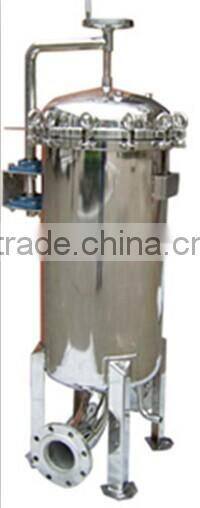

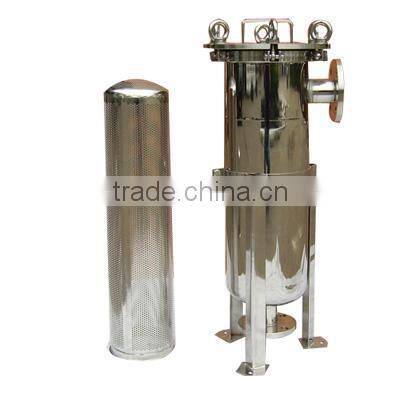

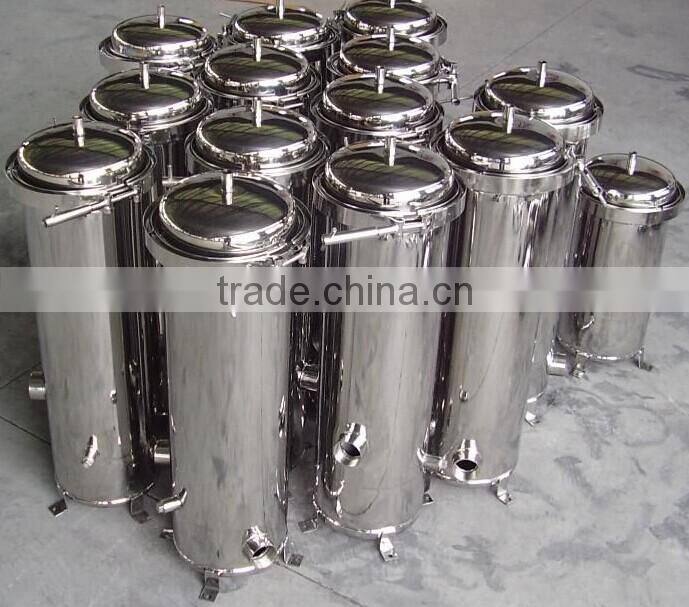

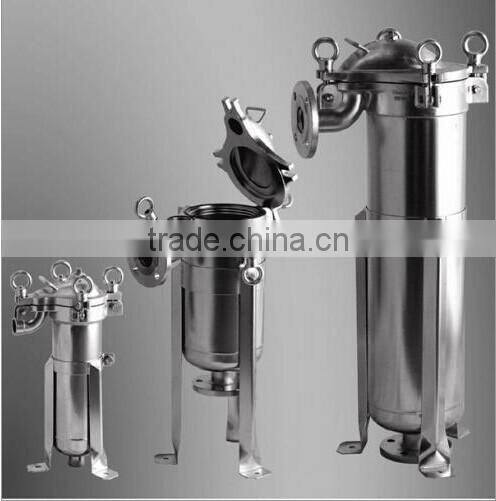

Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.
Parameters
| material | SS304 or SS316 |
| bag size | 180*450mm or 180*810mm |
| bag q'ty | single or multi-bag |
| surface treatment | polished |
| housing clousure by | quick opening, flange |
| inlet/outlet connection | quick opening, screw thread, flange |
| seal O-ring | silicon,NBR, EPDM, Viton |
| usage | liquid filtration |
| accepte | OEM |
Model 1 LYBF-01, Single bag, working pressure 100 psi
Model 2 LYBF-02, Single bag, working pressure 150 psi
Model 3 LYBF-03, Single bag, working pressure 300 psi
Model 4 LYBF-04, Multi bag, working pressure 150 psi
Cartridge filter housing
