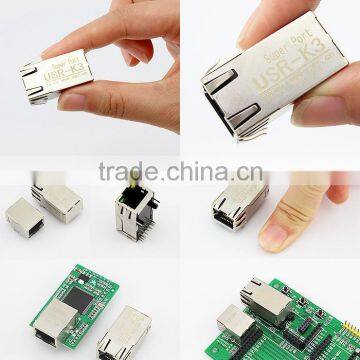

USR-K3 High Performance Super Port Serial TTL to Ethernet/RJ45 Module Withe Cortex M4 Support Upgrade Firmware via Network

Introduction

This is a serial TTL to Ethernet module, used for data transparent transmission. USR-K3 is the high-performance and industrial version of Super Port. It is an embedded serial networking module, whose function is to realize bidirectional transparent transmission between TTL and Ethernet. The amazing part of K3 lies in its Ethernet port integration design. You can apply K3 to your products to realize networking communication. User can directly process data interaction through network and device to realize remote data acquisition, remote control and management.

K3 is based on Cortex-M4 solution, which has high speed,high stability and basic frequency up to 120MHz. And it has the same kernel solution and parameters as USR-TCP232-E2.

Features

• Cortex-M4 kernel,industrial working temperature range and TCPIP protocol stack.
• Auto-MDI/MDIX,RJ45 port with 10/100Mbps

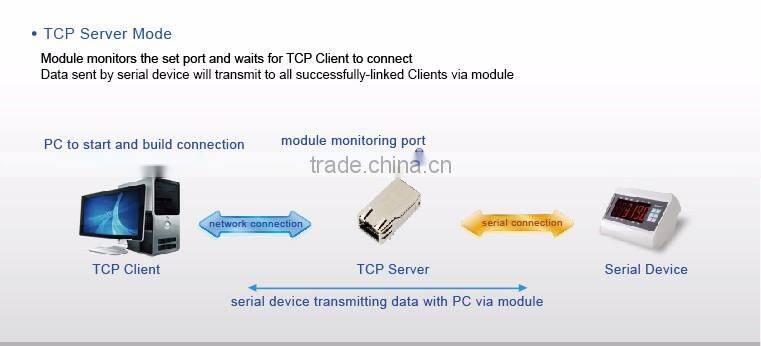

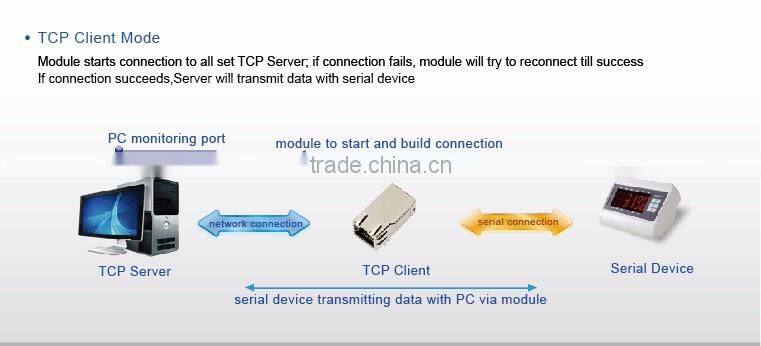

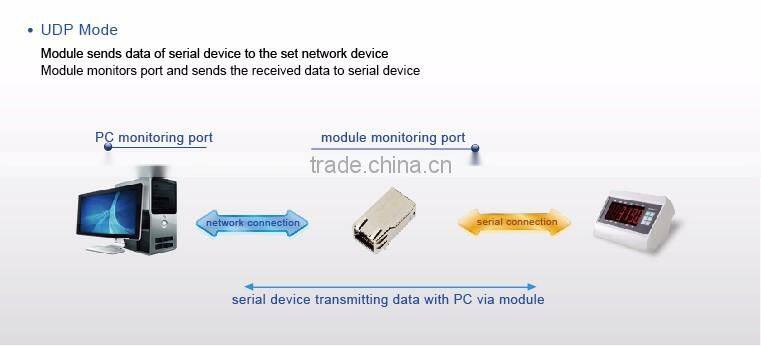

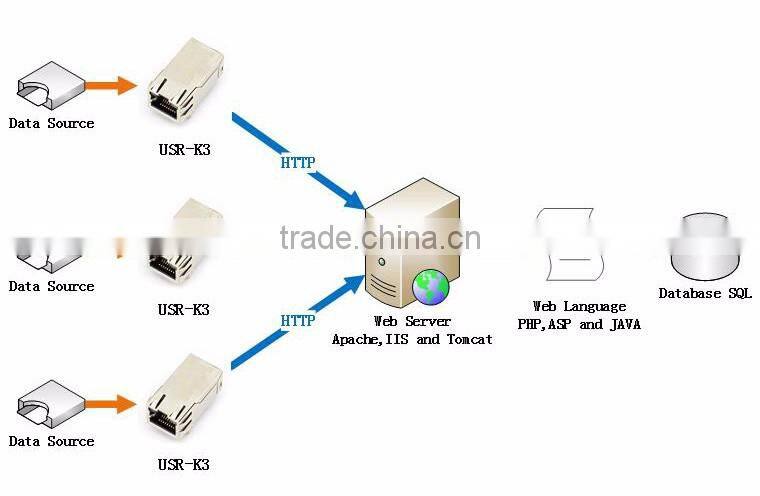

• TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client work mode
• Support virtual serial port and provide corresponding software USR-VCOM
• Serial port highest baud rate from 600bps to 1024Kbps, Check bit of None,Odd,Even,Mark and Space
• DNS and DHCP supported
• Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
• Built-in webpage;also can customize webpage for users
• RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation
• The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address
• Support upgrade firmware via network
• Support keepalive,rapidly detect dead links
• Support account and password,can be used to page login and network settings
• Support Websocket,realize bidirectional transparent transmission bewteen webpage and serial
• Support Modbus RTU to Modbus TCP
• Support UDP broadcast function

Parameter

• Input Voltage: DC 3.3V
• Input Current: 120mA(115~125)@ 3.3V
• Size: 33.02 x 19.01 x 19.15 (mm) (including clips)
• Operating Temp.: -40 ~ 85°C
• Storage Temp.: -40 ~ 85°C, 5 ~ 95% RH
• Interface: TTL UART
• Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP,ICMP, Web socket, Httpd client

Built-in Webpage

Jinan USR IOT Technology Limited has been focusing on IOT and M2M field for more than 6 years. We offer networking products

such as serial device server, Ethernet module/server, GPRS DTU, WIFI module and remote relay. We have professional R&D

teams for hardware and software, phone APP and server. And we can provide OEM & ODM service for clients.Our company has

rich experience in system solutions such as smart home system, intelligence fire, agricultural network,temperature and humidity

acquisition, industrial control, attendance, entrance guard system and remote control.

• Service: 2 years guarantee, and professional technical staff help.
• Supply ability: We usually have 3000-5000 units in stock for urgent orders.
• Capacity: 50K/week, can meet the demand of most enterprises application.
• Lifetime: At least 5 years for each device, can still produce just if you need.
• Cooperation: Welcome the cooperation with distributors all over the world.
